Shure BLX188E/SM35 (Analog (863 - 865 MHz))

Shure
EUR 905.55
Will be ordered for you as quick as possible
Incl. VAT, free shipping

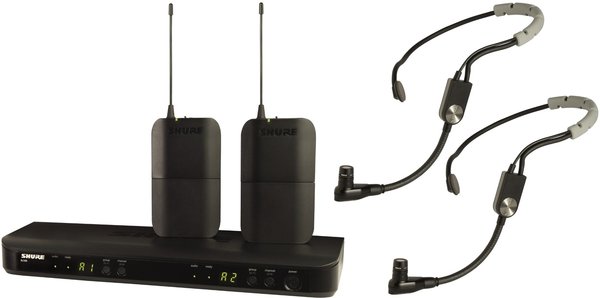

Dual headset radio system with two SM35 headsets.

The SM35 is a professional, comfortable-to-wear headset for singers and singing instrumentalists. It has a high-quality condenser capsule for high sound quality. The cardioid characteristic isolates sound sources from outside and offers a high level of protection against feedback. The two analogue pocket transmitters are part of the analogue SM35 headset radio system combo The analogue double receiver (BLX88E) offers professional radio technology at an excellent price/performance ratio. Plug & Play and Quick Scan make the receiver ready for immediate use, making it the first choice for anyone looking for a cost-effective introduction to reliable wireless technology.

  • Technical system specifications
  • - Compatible systems per frequency band (up to): 12
  • - Selectable frequencies: Up to 150
  • - Auto Setup Features: QuickScan: Finds the best free frequency at the push of a button
  • - Audio Reference Companding: Yes
  • - Antennas included: BLX4, BLX88: integrated antennas, BLX4R: removable external antennas
  • - Additional antenna options: No
  • - Receiver connectivity: No
  • - PC control and control: No
  • - Rack Hardware: URT2 (not included), clamps for rack mounting (only included with the rack version)
  • - Carrying case: Only in the analog radio system with BLX4 receiver
  • - Transmitter Display: Two-color audio status LED
  • - Receiver display: BLX4, BLX88: two-color audio status LED, BLX4R: high-resolution LC display
  • - Battery, running time: 2AA alkaline batteries with a running time of up to 14 hours
  • - Areas of application: Small and medium-sized stages
  • Additional system specifications
  • - Range: 100m (Actual range depends on RF signal absorption, reflection and interference)
  • - Available frequencies: Between 524-865 MHz (the available frequency range depends on the respective frequency regulations in each country)
  • - Transmission range: 50 Hz - 15 kHz
  • - RF output power: 10mW typical
  • - Audio output: XLR socket and 6.3 mm jack socket
  • - Battery life: Up to 14 hours
  • - Dynamic range: 100 dB(A)
  • - Total harmonic distortion: 0.5% typical (at 1 kHz and ±38 kHz excursion)
  • - Operating temperature: -18°C to +50°C
  • - Supply voltage: BLX1, BLX2: 2 AA alkaline or battery
  • - BLX88: 12-18V DC at 320mA, external power supply
  • Component Specification:
  • BLX88E analogue dual receiver
  • - Output impedance:
  • - XLR: 200 [Ohms]
  • - 6.3 mm jack: 50 [Ohm]
  • - Audio output level (1 kHz with ±33 kHz excursion):
  • - XLR: -27 dBV (with 100 k[Ohm] load)
  • - 6.3 mm jack: -13 dBV (with 100 k[Ohm] load)
  • - RF sensitivity: 105 dBm at 12 dB SINAD
  • - Image frequency rejection: >50 dB, typical
  • - Dimensions: 40 mm x 388 mm x 116 mm (H x W x D)
  • - Weight: 429g
  • - Housing: ABS housing
  • - Supply voltage: 12-15 V DC, 320 mA, external power supply
  • BLX1 analog bodypack transmitter
  • - Maximum audio input level:
  • - gain max: -16dBV
  • - gain min (0dB): +10dBV
  • - gain control range: 26 dB
  • - Input impedance: 1 M[Ohm]
  • - RF output power: 10mW
  • - Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
  • - Weight: 75g, without batteries
  • - Housing: Molded ABS housing
  • - Power supply: 2x AA battery; 1.5 ; alkali
  • - Battery life: up to 14 hours
