Shure SLXD14E (562-606 MHz)
EUR 684.70
In stock
Expected delivery: 02 Jun - 06 Jun to your country (AT)
Incl. VAT, free shipping
| Product # | 218901 |
| Brand | Shure |
| Series | Shure SLXD |
| Category | Guitar & Bass Wireless System |
| Brand Category | Shure - Wireless Systems |
Accessories
Recommended accessories

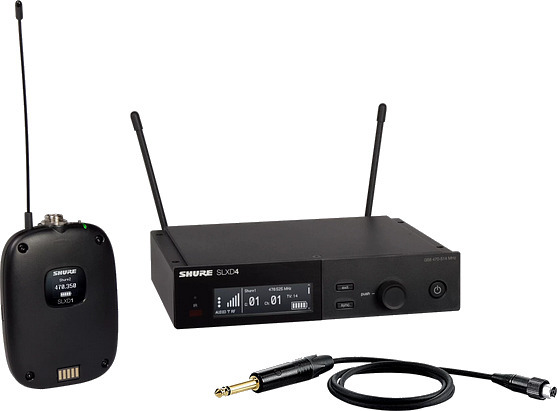

Wireless System with SLXD1 Bodypack Transmitter
The SLXD14 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WA305 Premium Instrument Cable with antenna and rackmount accessories and 2 AA batteries.
- - Available Transmitter Form factors: Bodypack
- - Operating range (up to): 100 m (Under typical conditions)
- Digital Wireless Receiver
- - Transparent 24-bit digital audio
- - Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- - 120 dB dynamic range
- - Digital predictive switching diversity
- - 44 MHz tuning bandwidth (region dependent)
- - 32 available channels per frequency band (region dependent)
- - Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- - Easy pairing of transmitters and receivers over IR scan and sync
- - Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- - Interchangeable microphone capsules
- - Rugged metal construction
- AD1 Bodypack Transmitter
- - Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- - Encryption-enabled, secure transmission
- - Two connector options: TA4 and LEMO3
- - Detachable ¼-wave antenna
- - AA or SB900A lithium-ion rechargeable batteries for convenient power options
- - External contacts for docked charging
- - TwinPlex™ TL45 Subminiature Lavalier Microphone
- - The TL45 is ideal for use in theater settings
- - Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
- - Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
- - Best-in-class low self-noise and dynamic range for cleaner audio production
- - Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic, nanoscopic coating
- - Paintable 1.1 mm cable that is immune to memory effect and kinks
- - A single medical-grade spiraling conductor in the cable delivers increased flexibility while built-in reinforcing fibers offer additional cable strength for longevity
- - Sound signature: Natural
- - Sensitivity: Low
- - Colors: White, Tan, Cocoa, Black
- - Connectors: LEMO
- - Accessories: Available separately
Housing: Galvanized Steel
Power Requirements: 15 VDC @ 600 mA
Supplied by external power supply (tip positive)
RF INPUT
Spurious Rejection: >75 dB Typical
Connector Type: BNC
Impedance: 50 Ω
AUDIO OUTPUT
Gain Adjustment Range: –18 to +42 dB in 1 dB steps Configuration:
1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio –)
Impedance:
1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
XLR (line): 400 Ω (200 Ω Unbalanced)
XLR (mic): 150 Ω
Full Scale Output:
1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV
XLR (MIC setting): –15 dBV
Mic/Line Switch: 30 dB pad
Phantom Power Protection:
1/4" (6.35 mm): Yes
XLR: Yes
NETWORKING
Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)
Power Requirements: 15 VDC @ 600 mA
Supplied by external power supply (tip positive)
RF INPUT
Spurious Rejection: >75 dB Typical
Connector Type: BNC
Impedance: 50 Ω
AUDIO OUTPUT
Gain Adjustment Range: –18 to +42 dB in 1 dB steps Configuration:
1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio –)
Impedance:
1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
XLR (line): 400 Ω (200 Ω Unbalanced)
XLR (mic): 150 Ω
Full Scale Output:
1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV
XLR (MIC setting): –15 dBV
Mic/Line Switch: 30 dB pad
Phantom Power Protection:
1/4" (6.35 mm): Yes
XLR: Yes
NETWORKING
Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)
| Product Details | |
|---|---|
| Product Number | 218901 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Guitar & Bass Wireless System | |
| Date | August 2020 |
| Dimension | |
|---|---|
| Weight | 2.21kg |
| Gross Weight | 3.19kg |
