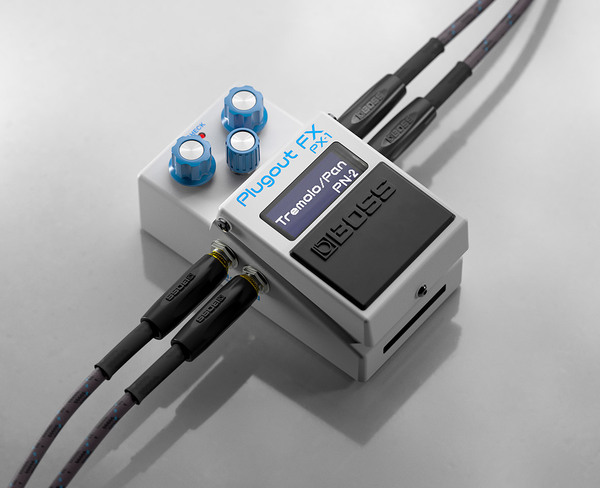

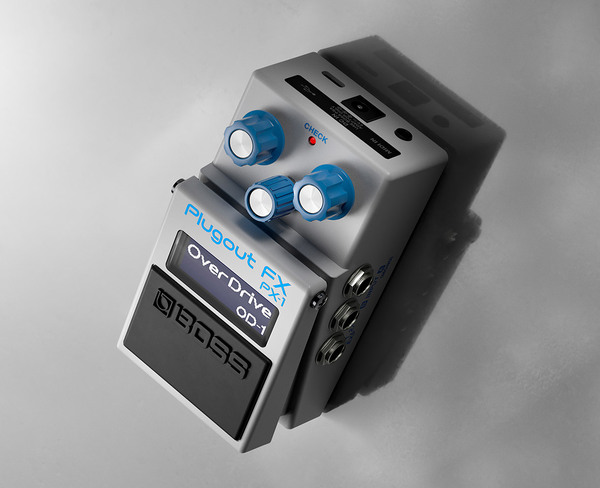

Boss PX-1 Plugout FX
| Product # | 253472 |
| Brand | Boss |
| Category | Multi-Effects Pedal |
| Brand Category | Boss - Multi-Effects |
Recommended accessories
A Universe of Musical Colors
Since 1977, BOSS compact pedals have inspired generations of musicians around the world. Over 140 unique models have been produced, over 19 million units have been sold, and many have remained in non-stop production for decades. From vintage classics and go-to workhorses to rare and specialty effects, the PX-1 puts the diverse BOSS compact pedal range at your command.
Authentic Recreations
Backed by newly developed BOSS algorithms, each effect in the PX-1 delivers the authentic sound and response of the pedal it’s based on. Every detail is modeled with stunning accuracy, thanks to a powerful DSP engine dedicated to recreating the sound of a single effect at a time. Dial in tones fast with the familiar knob interface you’re used to with BOSS compacts, supported by an onboard display for current parameters and internal settings.
Modern Flexibility
The PX-1 supports external control with one or two footswitches or an expression pedal. Use the Swap function to switch between two effects. Or assign nearly any parameter for real-time expressive control while performing. Stereo I/O provides flexible connectivity and enhanced sound for models that support stereo operation, while tap tempo and MIDI clock sync help you get the most out of time-based effects.
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Roland Cloud Activation Card
- - Timeless BOSS compact pedals in an innovative hardware platform
- - Instantly reconfigure the pedal to use one effect from an onboard library of up to 16 types
- - Comes with 16 effects: OD-1, SP-1, PH-1, SG-1, CS-1, TW-1, SD-1, DS-1, CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2, and DF-2
- - Additional effects available over time with Model Pass purchases in the BOSS Effect Loader app
- - Authentic tone and response, realized with powerful DSP dedicated to one effect at a time
- - Stereo input and output
- - Support for external control with footswitches or an expression pedal
- - Tap tempo support and TRS MIDI input for MIDI clock sync
- - Bluetooth® and USB-C® connectivity for loading effect models and more
- - Runs on included AC adaptor or USB bus power
- AD Conversion: 24 bits + AF method
- AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
- DA Conversion: 32 bits
- Nominal Input Level: INPUT A (MONO), INPUT B: -20 dBu
- Maximum Input Level: INPUT A (MONO), INPUT B: +7 dBu
- Input Impedance: INPUT A (MONO), INPUT B: 1 MΩ
- Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20 dBu
- Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7 dBu
- Output Impedance: OUTPUT A (MONO), OUTPUT B: 1 kΩ
- Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater
- Bypass: Buffered bypass

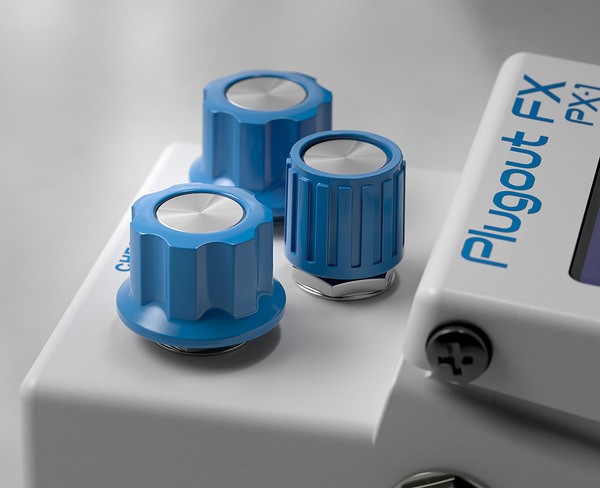

Controls:
- LEFT knob
- CENTER knob
- RIGHT knob
- Pedal switch
- Indicator
- CHECK indicator
- Display: Graphic LCD 128 x 48 dots
Connectors:
- INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type
- CTL1,2/EXP jack: 1/4-inch TRS phone type
- DC IN jack
- MIDI IN jack: Stereo miniature phone type
- USB COMPUTER port: USB Type-C(R)
- Bluetooth
- Profile Support: GATT (MIDI over Bluetooth Low Energy)
- Power Supply: AC adaptor
- Supplied from the USB port
- Current Draw: 260 mA (AC adaptor) / 420 mA (USB)
- 0 dBu = 0.775 Vrms
| Product Details | |
|---|---|
| Product Number | 253472 |
| Brand | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Multi-Effects Pedal | |
| Date | August 2025 |
| Product Quantity | |
|---|---|
| Unit | 1 piece(s) |
