Behringer Bode Frequency Shifter 1630
| Product # | 248451 |
| Brand | Behringer |
| Series | Behringer EuroRack |
| Category | FX & Modulation |
| Brand Category | Behringer - FX & Modulation |

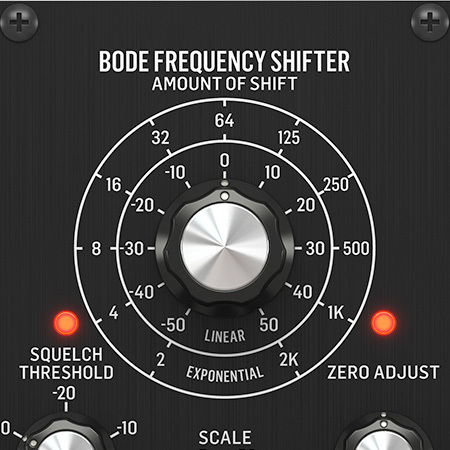

Ready for Any Signal
The BODE FREQUENCY SHIFTER accurately shifts the entire frequency spectrum of any input signal from -5 to +5 kHz. Simply plug in any audio source and start turning the giant knob to lower or raise the frequency. The amount of shift can also be varied with the Scale knob which lets you switch between linear or exponential control.
Controls
Additional controls on the BODE FREQUENCY SHIFTER include a variable threshold squelch which minimizes carrier bleed-through and can be used to creatively alter the input signal’s characteristics. Up to three control voltages can also plugged in, as well as up to four output signals.

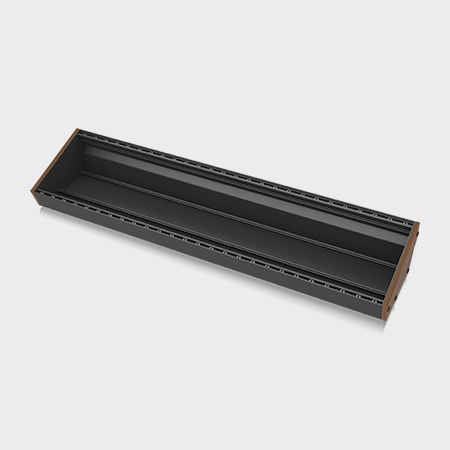

Eurorack Ready
The BODE FREQUENCY SHIFTER is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows it to be mixed with other synth modules for a truly unique set up.
- - Authentic recreation of the famous Bode frequency shifter from the '70s
- - Accurately shifts the entire frequency spectrum continuously variable from -5 to +5 kHz
- - State-of-the-art circuitry includes voltage-controlled beat frequency quadrature oscillator
- - Accurately shifts input signals over the audio frequency range of 30 Hz - 16 kHz
- - Amount of shift is accurately voltage-variable with linear or exponential control
- - Variable threshold squelch minimizes apparent carrier bleed-through due to input signal background noise
- - Less than 1% total unwanted modulation and distortion products
- - Eurorack specs: 14 HP, 110 mA +12 V, 110 mA -12 V
| Key attributes | |
|---|---|
| Width | 14HP |
| Colour | |
|---|---|
| Colour Group | Black |
| Colour | Black |
| Module Specifications | |
|---|---|
| Depth | 71.12mm |
| Case Specifications | |
|---|---|
| Modular Format | Eurorack Modular (3U) |
| Power Consumption | |
|---|---|
| -12V rail | 110mA |
| +12V rail | 110mA |
| Product Dimensions | |
|---|---|
| Depth | 129mm |
| Width | 71mm |
| Height | 53mm |
| FX & Modulation attributes | |
|---|---|
| Module Height | 3U |
| Panel Color | Black |
| Module Properties | Analog |
| Product Details | |
|---|---|
| Product Number | 248451 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category FX & Modulation | |
| Date | July 2024 |
| Product Quantity | |
|---|---|
| Unit | 1 piece(s) |
| Dimension | |
|---|---|
| Weight | 0.17kg |
| Box Depth | 172mm |
| Box Width | 71mm |
| Box Height | 87mm |
