Behringer Xenyx 1202SFX
| Product # | 244272 |
| Brand | Behringer |
| Series | Behringer Xenyx |
| Category | 12 Channel Mixer |
| Brand Category | Behringer - 12 Channel Mixers |

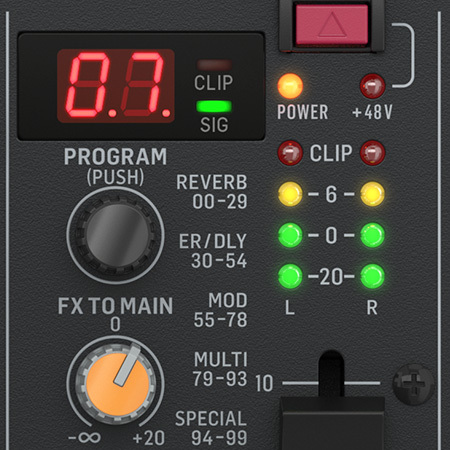

Great for Any Setup
The XENYX “S” series can be connected to any computer or mobile device making it super easy to integrate digital sources with analog equipment. It can also be used as a versatile sub mixer for feeding network enabled audio devices with several other audio signals. Four mono channels with EQ and Low Cut, plus 4 stereo channels, a stereo RCA streaming input and stereo USB input allow you to blend a total of 16 audio signals for streaming, monitoring via headphones or on high-quality TRS outputs. The mixer delivers crystal-clear audio for high-quality streaming, plus it comes with an amazing Klark Teknik FX processor with a hundred presets to add that extra spice to your mix.

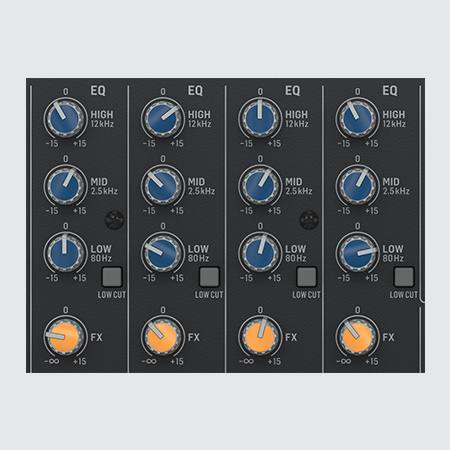

Control Made Easy
The 1202SFX features level, panorama/balance and effect send controls on all channels and allows for precise sound shaping for any input source. Mono channels have additional Gain controls and 3-band EQ with switchable Low Cut, while stereo line-level channels offer a switchable 12 dB boost. The FX send control per channel lets you use the internal stereo effects programs and/or plug in any external FX processor of your choice, such as the Behringer FX2000, for amazing audio effects flexibility. When nothing is plugged into the stereo line inputs 11/12, then the stereo 11/12 channel will receive the USB input signal and its control can be used to adjust the USB level conveniently. Finally, a 60-mm Main fader ensures extremely smooth volume control of your output mix.
- - Ultra-low noise analog mixer for streaming, podcasting and recording
- - 4 Award winning XENYX microphone preamps for warm and musical sound
- - Stereo USB audio interface to connect to your computer or mobile device
- - Klark Teknik FX processor with 100 great sounding presets
- - Direct mixing of PC / gaming sounds into the streaming output
- - Analog mixing and equalization for pure sound
- - Versatile sub mixer for network enabled audio devices
- - Stereo channel 11/12 automatically switches between TRS input and USB playback
- - 3-band EQs for warm and musical sound
- - FX send control per channel for internal or external FX processor
- - High-quality monitoring, phones and streaming outputs
- - Stereo RCA inputs assignable to main mix or monitor/phones outputs
Microphone Input:
- Balanced XLR, discrete input circuit
- Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted
- Frequency response Gain +10 dB: 10 Hz to 150 kHz
- Frequency response Gain +60 dB: 20 Hz to 70 kHz
- Gain range: +10 dB to +60 dB
- Max input level @ +10 dB Gain: +12 dBu
- Input Impedance 2 kΩ balanced
- Distortion (THD + N) 1 kHz
- @ +10 dB Gain: 0.005%
Mono Line Inputs:
- 1/4" TRS connector balanced
- Impedance: 22 kΩ Balanced, 10 kΩ unbalanced
- Gain range: -10 dB to +40 dB
- Max input level @ 0 dB Gain: +21 dBu
- Stereo Inputs
Stereo Line:
- 1/4" TRS connector balanced
- Frequency response: 20 Hz to 200 kHz
- Impedance: 22 kΩ Balanced, 10 kΩ unbalanced
- Max input level @ 0 dB Gain: +21 dBu
STREAM Inputs (Analog):
- RCA connector unbalanced
- Impedance: 10 kΩ unbalanced
- Max input level: 10 dBu
- Equalizer
- Low: 80 Hz/±15 dB
- Mid: 2.5 kHz/±15 dB
- High: 12 kHz/±15 dB
- Main, Monitor & FX Send Outputs
- Type: 1/4" TRS connector impedance-balanced
- Impedance: 120 Ω
- Max output level: 21 dBu
- Phones Out
- Type: 1/4" TRS connector unbalanced
- Impedance: 23 Ω
- Max output level: 19 dBu/150 Ω
- STREAM out (Analog)
- Type: RCA connector unbalanced
- Impedance: 1 kΩ unbalanced
- Max output level 10: 10 dBu
- Main Mix noise
- Main Mix @ -∞: 108 dBu A-weighted
- Channel @ -∞: 108 dBu A-weighted
- FX Section
- Type: Klark Teknik
- Converter: 24-bit Sigma Delta
- Sample Rate: 40 kHz
- USB
- Type: Type-B connector
- USB Audio Data: 48 kHz 16 Bit
- UAC2 Class Compliant: stereo in/out
| Key attributes | |
|---|---|
| Mixing Desk Type | Analogue |
| Total Input Channels | 8 |
| Total Output Channels | 2 |
| Digital In/Out | None |
| Product Dimensions | |
|---|---|
| Depth | 248mm |
| Width | 250mm |
| Height | 50mm |
| 12 Channel Mixer attributes | |
|---|---|
| Analogue Inputs | 4 |
| Analogue Stereo Inputs | 4 |
| Analogue Outs | 2 |
| Interface Functionality | USB Stereo |
| Internal Effects Processor | Yes |
| Monitor-/Aux | 2 |
| Equalizer Type | Semiparametric |
| +48V Phantom Power | Yes |
| 19" Rackmount Option | No |
| Product Details | |
|---|---|
| Product Number | 244272 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category 12 Channel Mixer | |
| Date | September 2023 |
| Dimension | |
|---|---|
| Weight | 1.5kg |
| Box Depth | 373mm |
| Box Width | 250mm |
| Box Height | 122mm |
| Gross Weight | 2.58kg |
