Ibanez AZ47P2K-DEB (Dragon Eye Burst)

CHF 1309.00

new

CHF 1500.00

In backorder

Free delivery (CH)

Product #	253511
Brand	Ibanez
Category	Electric Guitar ST-Model
Brand Category	Ibanez - ST Models

Accessories

Micro Rechargeable Headstock Tuner (USB-C)

CHF 23.80

Airwire i58 High Integrity Wireless Instrument System

CHF 169.00

Telepath Wireless System (mystic ice blue and black)

CHF 145.00

Mustang Micro Plus

CHF 114.50

OGBEG-DLX Electric Guitar Deluxe F-Shape Gig Bag (black)

CHF 99.00

GCL-50 EL II

CHF 79.00

GC-RE / Electric Guitar Case

CHF 89.50

FE405 Electric Guitar (Black)

CHF 28.30

Plus Mark IV

CHF 81.00

Recommended accessories

With its incredible adaptability, ranging from the warmest blues licks to the most intense shred-heavy metal riffs, the AZ series has established itself and carved out its own place. The AZ line embodies proven Ibanez innovations and player-oriented features, such as a smooth, oval neck, a well-balanced asymmetrical body and a neck neck joint that allows for unparalleled playability. “Designed to Inspire”, all Ibanez Premium Series guitars are crafted with select tonewoods, quality electronics and hardware, and dedicated craftsmanship and attention to detail. The great sound, stunning looks and unbeatable playability of the Ibanez Premium Series will give free rein to your creativity. The AZ47P2K has a roasted maple neck, an ebony fingerboard and a top made of Hawaiian koa on an American basswood body. In addition, the guitar is equipped with DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone pickups, Gotoh MG-T locking tuners and a Gotoh T1502 tremolo bridge.

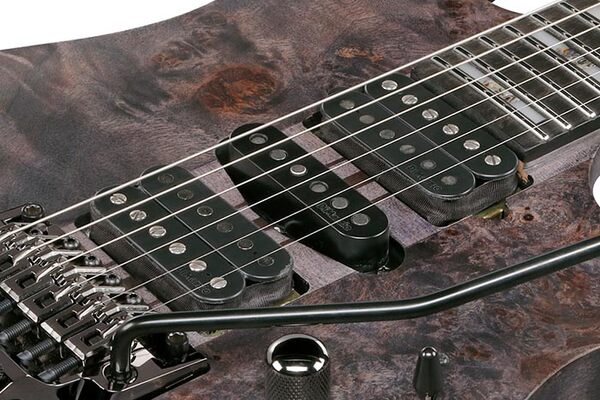

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

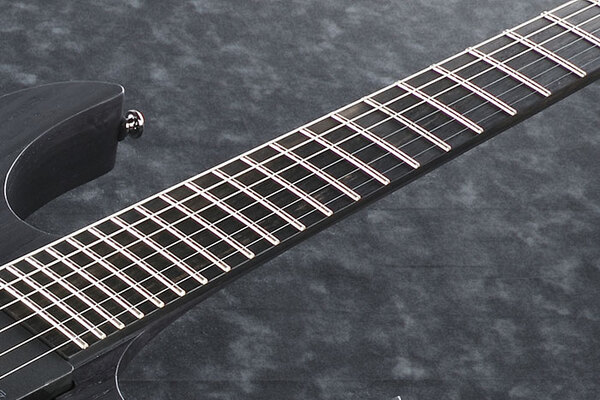

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

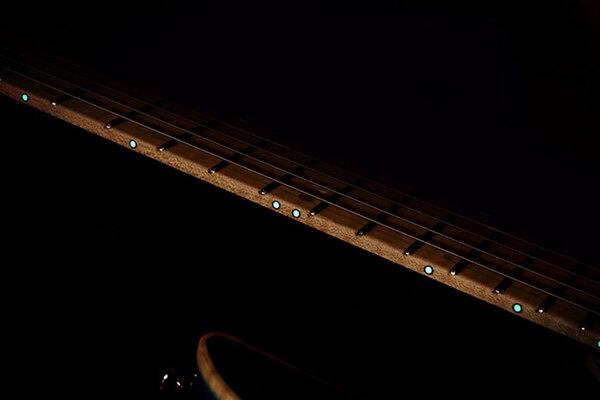

Luminescent side dots

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

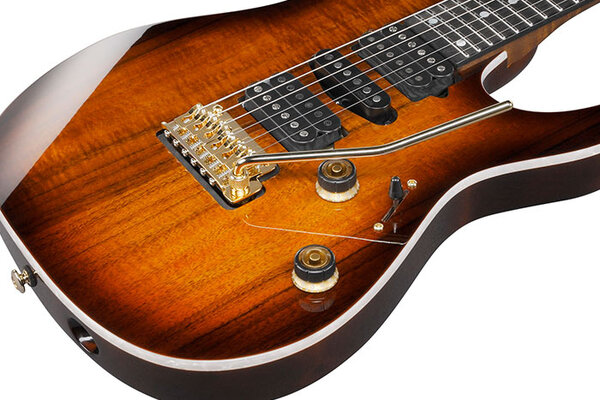

Hawaiian Koa top / American Basswood body

Hawaiian Koa top with a beautiful appearance provides a quick and bright attack on high end. American Basswood body delivers a natural and flat tone.

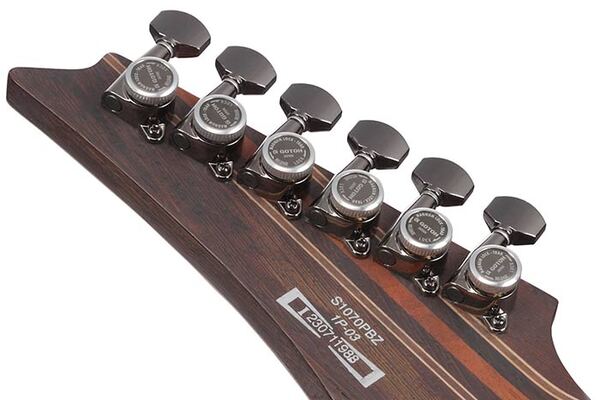

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

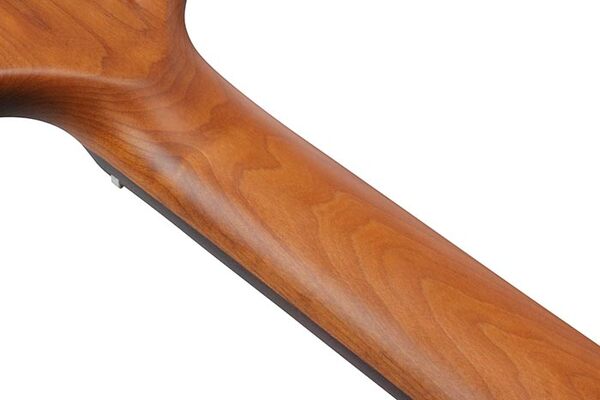

Oval C Roasted Maple neck

The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

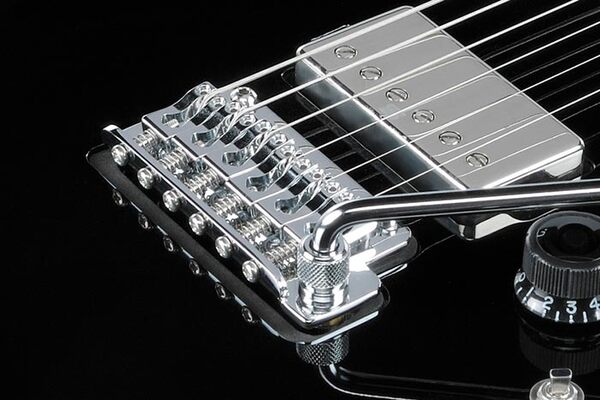

Gotoh® T1502 tremolo bridge

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

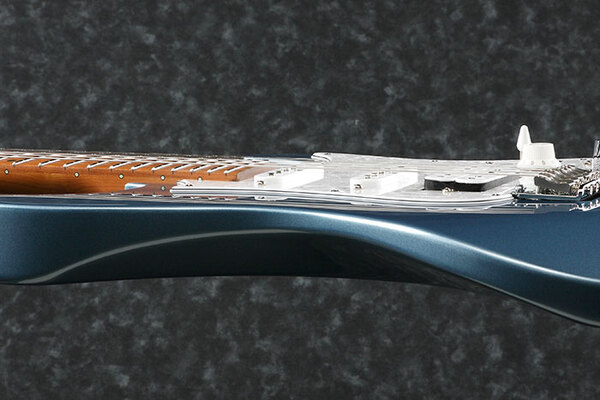

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

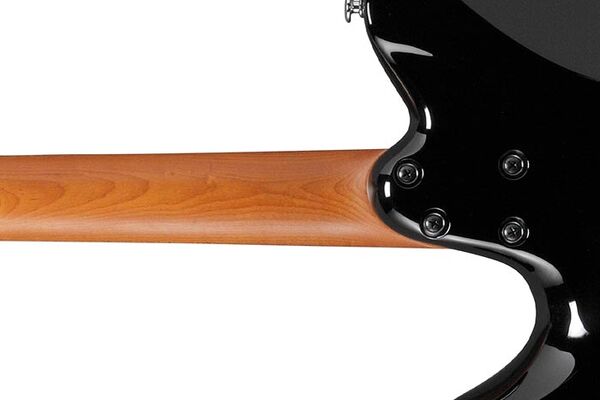

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.

Gig Bag

- Oval C roasted maple neck
- Ebony fingerboard with luminescent side dots
- Hawaiian koa top on an American basswood body
- DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
- Gotoh® T1502 tremolo & Gotoh® MG-T locking tuners

- Neck Type: AZ Oval CRoasted Maple neck
- Top/Back/Body: Hawaiian Koa top with American Basswood body
- Fretboard Material: Ebony fretboard with Mother of Pearl dot inlay
- Fret Size: Jumbo Stainless Steel frets
- Number of Frets: 24
- Bridge: Gotoh® T1502 bridge
- String Spacing: 10.5mm
- Neck Pickup: DiMarzio® Air Norton™ (H) neck pickup (Passive/Alnico)
- Middle Pickup: DiMarzio® True Velvet™ (S) middle pickup (Passive/Alnico)
- Bridge Pickup: DiMarzio® The Tone Zone® (H) bridge pickup (Passive/Alnico)
- Factory Tuning: 1E,2B,3G,4D,5A,6E
- Strings: D'Addario® EXL110
- String Gauge: .010/.013/.017/.026/.036/.046
- Nut: Graph Tech® nut
- Hardware Color: Gold
- Scale: 648mm/25.5"
- Width: 42mm at Nut
- Width: 57mm at 24th Fret
- Thickness: 20.5mm at 1st Fret
- Thickness: 22.5mm at 12th Fret
- Radius: 305mmR

Key attributes
Pickup Types	HSH
Colour	Sunburst
Body Shape	ST-Model
Fingerboard Material	Ebony
Body Material	Basswood

Body
Guitar Construction	Solid Body
Orientation	Right-Handed
Top Material	Koa

Neck
Fingerboard Radius	12"
Neck Finish	Satin Polyurethane
Neck Material	Maple
Guitar Scale	25.5"
Neck Profile	"C" Profile
Number of Frets	24
Fret Size	Jumbo
Nut Width	42mm
Nut Material	Graphite
Position Inlays	Dots

Hardware
Bridge Type	Tremolo
Hardware Finish	Gold
String Gauge	.010"
Tuning Machines	Locking Tuning Machines
Coil Split	No
Including Bag	Gig bag

General Information
Manufacturer information	Hoshino USA Inc. 1726 Winchester Rd, Bensalem 19020 Bensalem PA United States

Electric Guitar ST-Model attributes
Guitar Finish	Gloss Polyurethane
Unit	1 piece(s)

Product Details
Product Number	253511
Brand	Ibanez
Category	Electric Guitar ST-Model
Brand Category	Ibanez - ST Models
Relevancy rank in Category Electric Guitar ST-Model	974 of 1013
Date	July 2025
