LAB Gruppen PDX3000
| Product # | 215261 |
| Brand | LAB Gruppen |
| Category | Power Amplifier |
| Brand Category | LAB Gruppen - Power Amplifiers |
Applications
PDX3000 is a proven and reliable Class-D amplifier and can provide superb audio performance in both background and foreground music sound systems. PDX3000 suits a wide range of applications such as entry/mid-level touring, live portable sound, hotels, bars and restaurants, house of worship, performance spaces, and many more.

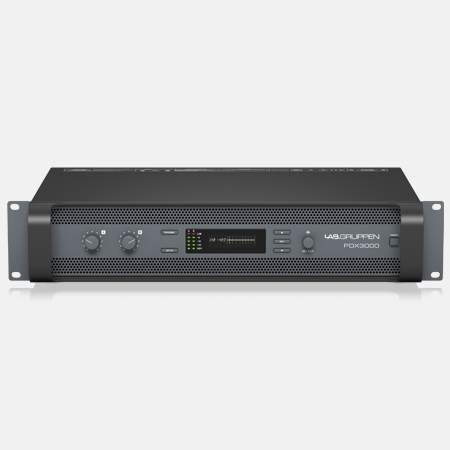

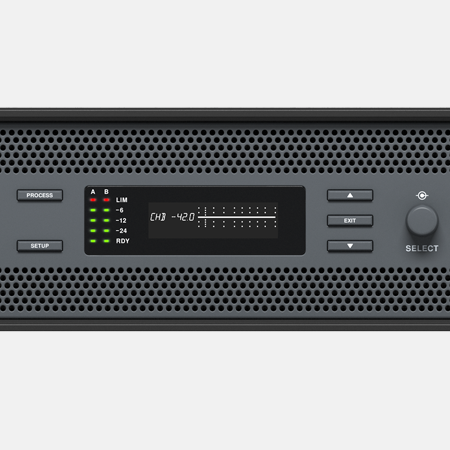

Manual Control
PDX3000 is equipped with Intuitive front panel user interface for easy setup and monitoring. Everything is controllable from the front panel, which is a great match for rental applications.

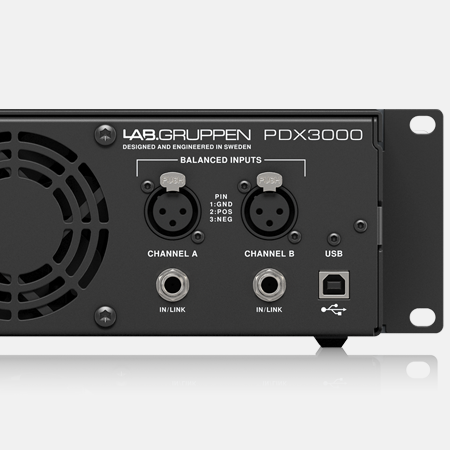

Inputs
Balanced XLR and TRS input connectors with optimized sensitivities, configuration and monitoring software through USB connection. This allows for easy set up using PDX Controller software and preset library.

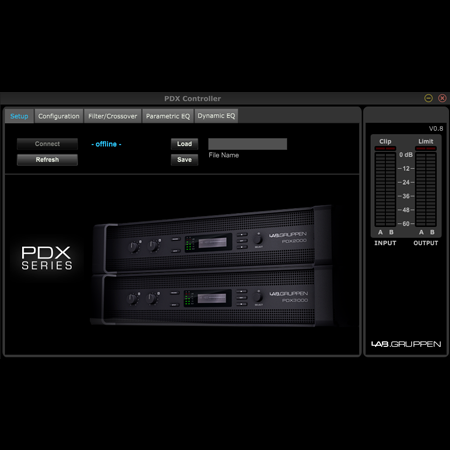

PDX Controller Software
PDX Controller software allows the user to configure DSP functions such as crossover, parametric EQ, delay, limiter, dynamic EQ and input mixing, making the PDX series suitable for a broad range of installed and touring applications. The PDX series can be controlled through the usage of front panel or PDX Controller software by connecting to a PC with USB.

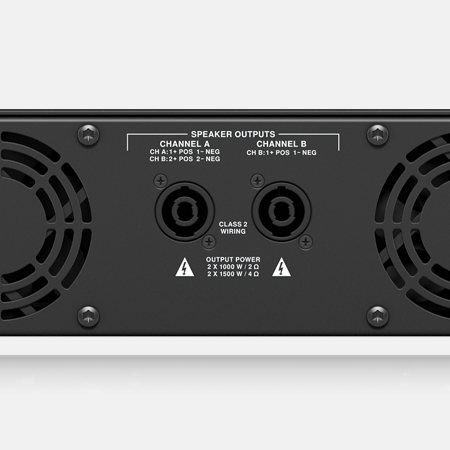

Speaker Outputs
All PDX Series amplifiers employ our unique IDEEA Class D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offer sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.
Rugged and Lightweight Rack Mount Chassis
Appropriate and reliable power amplification is vital to any audio system. Inadequate or faulty power amplifiers could cause damage to loudspeakers, or in some cases to the power amplifiers themselves. To prevent damage or service interruptions, PDX Series amplifiers offer advanced features to protect both internal circuits and connected loads.
- Two channel amplifier delivering 2 x 1,500 Watts
- Full DSP feature set for speaker processing
- Proven and reliable Class-D amplifier stage
- Highly efficient Switch Mode Power Supply (SMPS)
- Comprehensive configuration and monitoring software through USB connection
- Intuitive front panel user interface for easy setup and monitoring
- Precise power management guarantees performance and efficiency
- Comprehensive circuit protection against short circuits, DC and thermal overload
- User configurable gain, delay, crossover, EQ, limiter and dynamic EQ
- Speaker Protect Limiter for maximum level output and reliable driver protection
- Pre-configured crossover settings for speaker configuration
- Balanced XLR and TRS input connectors with optimised sensitivities
- Professional speakON* output connectors
- Front panel locking functionality for ultimate security
- Efficient cooling with temperature-controlled fan
- Rugged and lightweight rack mount chassis for maximum durability
- 10-Year Warranty Program*
- Designed and engineered in Sweden
| Product Dimensions | |
|---|---|
| Depth | 326mm |
| Width | 483mm |
| Height | 93mm |
| Product Details | |
|---|---|
| Product Number | 215261 |
| Brand | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Power Amplifier | |
| Date | April 2020 |
| Dimension | |
|---|---|
| Weight | 6.5kg |
| Box Depth | 566mm |
| Box Width | 483mm |
| Box Height | 227mm |
