Roland V71
| Product # | 249927 |
| Brand | Roland |
| Series | Roland V-Drums |
| SubSeries | Roland V-Drums V7 |
| Category | Electronic Drum Module |
| Brand Category | Roland - Electronic Drum Modules |
Recommended accessories

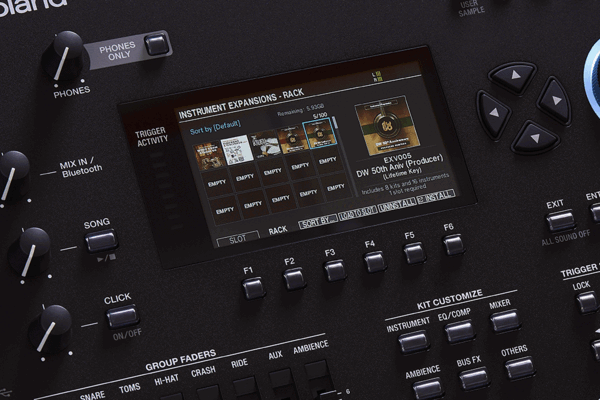

Think you know V-Drums? Think again.
Our V71 module launches the V-Drums sound into a new dimension of realism and creative command. The onboard drum library has been created from the ground up, with instruments never featured in any previous module. Crafted from a hand-picked selection of the world’s finest drum sets, these record-ready sounds deliver the detail, punch, and sonic quality found in the most expensive computer collections.
Recording process.
The V71 sound library was originally recorded and mixed at 32-bit/192 kHz resolution in pro studios around the globe, with intensive sessions manned by leading engineers who know how to capture incredible drum sounds. A large part of the collection was recorded in direct collaboration with DW in Oxnard, California, ensuring a seamless experience between the hardware module and the DW Soundworks software instrument.

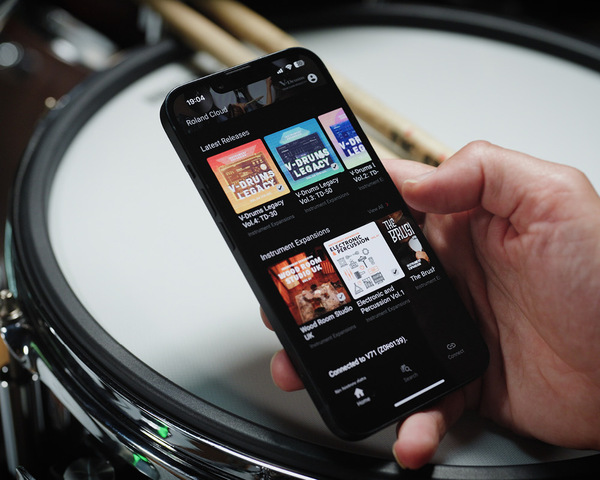

New sounds, on demand.
While previous V-Drums modules offer deep editing capabilities, the onboard sound libraries are fixed and can’t be expanded. The V71 module changes all that, letting you freely change up the sound set for the first time. Open the Roland Cloud Connect app on your mobile device to access a growing range of V-Drums Instrument Expansion titles via your wireless network. Then, find the sounds you want, download them directly to the module, and start drumming immediately.
Choose your perspective.
When you’re a serious drummer, your sound exists in two distinct universes. One is the intimate, up-close sound of the drums when you’re behind the kit. The second is the produced sound created for a recording or live PA, which is typically processed with EQs, compressors, and ambience. Some V-Drums Instrument Expansion titles have been specially mixed for both the drummer and producer positions, letting you create the playing experience you want at the touch of a button.

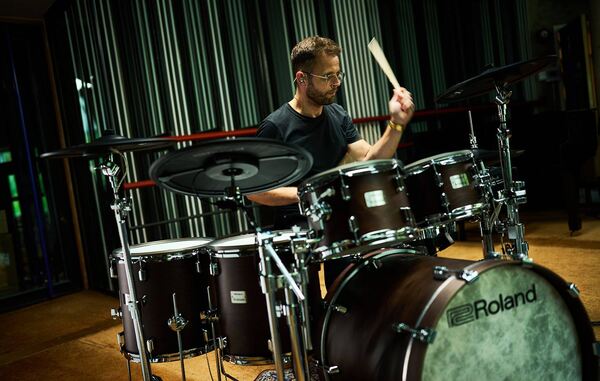

Unrivaled expression.
Like top-tier drum sound libraries for computers, the V71 features multi-layer sample playback and round-robin randomization for natural sound with no “machine-gun” effect. Roland’s proprietary behavior modeling adds the finishing touch, refining the sound with smooth, artifact-free transitions for every articulation and over 16,000 variations in dynamic response with our digital pads. Together with our latest sensors and digital trigger technologies, the V-Drums 7 Series delivers an inspiring, acoustic-like playing feel that’s second to none in the electronic drumming world.
Roland Cloud Connect Setup Guide
Roland Cloud Activation Card
AC Adaptor
- - V-Drums 7 Series module, reimagined with an expandable sound engine and support for the latest Roland pad technologies
- - Newly recorded multi-sampled sound library created in collaboration with DW
- - DW Soundworks software instrument for a seamless transition to computer-based playing (included with Roland Cloud Ultimate membership)
- - Wirelessly download V-Drums Instrument Expansions and Kit Packs with the Roland Cloud Connect mobile app
- - Six-month Roland Cloud Ultimate membership included
- - Large color display, updated user interface, and built-in wireless adapter
- - Enhanced V-Edit tools and companion V71 Editor software (macOS/Windows)
- - Deep studio-grade processing tools, including EQs, compressors, reverbs, ambience effects, and more
- - Add your own sounds with sample import support
- - Balanced main XLR and 1/4-inch outputs, eight balanced 1/4-inch direct audio outputs, three digital trigger inputs, and 14 analog trigger inputs
- - Full support for the latest V-Drums 7 Series pads, including the PD-14DSX digital snare, PD-10X/PD-12X V-Pads, and others
- - Multi-channel USB interface with 32 discrete audio channels and MIDI
- - Bluetooth audio/MIDI for wireless music streaming and MIDI recording with your smartphone
- - Stereo aux input for mixing in an external device like an SPD series percussion pad
- 200 (Preset: More than 70)
Instruments
- More than 1000
Effect Types
- Layer Transient: each layer
- Layer Equalizer: each layer
- Pad Equalizer: each pad (by head and rim)
- Pad Compressor: each pad (head and rim common)
- Overhead Mic Simulator
- Room/Reverb/Kit Resonance
- Bass Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types
- Bus Reverb
- Master Compressor
- Master Equalizer
User Sample Import
- Number of User Sample: Maximum 500 (includes factory preloaded user samples)
- Sound Length (total): 24 minutes in mono, 12 minutes in stereo
- File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)
Song Player (SD Card)
- Audio File: WAV (44.1 kHz, 16/24 bits), MP3
Recorder
- Recording Method: Realtime
- Maximum Note Storage: approx. 40,000 notes
- Export File Format: WAV (44.1 kHz, 16 bits), SMF
- or
- Recording Method: Realtime
- Maximum length: 60 min (temporary recording: 1 min) (*1)
- File format: WAV (44.1 kHz, 16 bits)
Display
- Graphic color LCD 4.3 inch
- TRIGGER ACTIVITY Indicator (LED)
Faders
- 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)
External Memory
- SD Card (SDHC supported)
Connectors
- TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad)
- DIGITAL TRIGGER IN port x 3: USB A type
- MASTER OUT (BALANCED) jacks (L/MONO, R): 1/4-inch phone type, balanced
- MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced
- DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced
- PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
- MIX IN (STEREO) jack x 1: Stereo 1/4-inch phone type
- MIDI (IN, OUT/THRU) connectors
- USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
- FOOT SW jack: 1/4-inch TRS phone type
- DC IN jack
Number of USB Audio Record/Playback Channels
- Vendeor Mode
- Sampling Rate (Original): 44.1 kHz
- Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
- Record: 32 channels
- Playback: 32 channels
Generic Mode
- Sampling Rate (Original): 44.1 kHz
- Record: 2 channels
- Playback: 2 channels
Power Supply
- DC 12V (AC Adaptor)
Current Draw
- 2,400 mA
Power consumption when in off mode (when the power automatically turns off)
- 0.2 W
| Product Dimensions | |
|---|---|
| Depth | 308mm |
| Width | 330mm |
| Height | 110mm |
| Electronic Drum Module attributes | |
|---|---|
| Unit | 1 piece(s) |
| Product Details | |
|---|---|
| Product Number | 249927 |
| Brand | |
| Series | |
| SubSeries | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Electronic Drum Module | |
| Date | December 2024 |
| Dimension | |
|---|---|
| Weight | 4.2kg |
| Box Width | 330mm |
