Zoom Q8n-4K
| Product # | 236120 |
| Brand | Zoom |
| Series | Zoom Q |
| Category | Portable Recording Equipment |
| Brand Category | Zoom - Portable Recorders |
Recommended accessories
The right fit for your production
VIDEO PRODUCTION BEYOND THE LIMITS OF A SMARTPHONE The Q8n-4K is designed for creators to showcase your best sound and look, elevating your videos with four audio tracks, along with 4K UHD video. LIGHT WEIGHT, LIGHT ON THE WALLET Compared to a mirrorless or DSLR, this camera’s size is meant to seamlessly fit into your production while its price ensures that it fits into your budget.
4-Track Minded
With the included X/Y mic capsule and two XLR inputs, you can capture up to four tracks of simultaneous, crystal-clear audio.

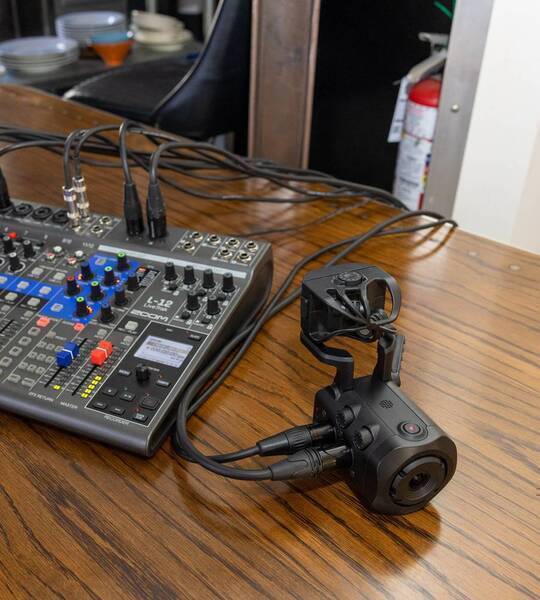

In the Mix
Capture every instrument and voice of your band by running the main outputs of a mixing board right to your Q8n-4K.
Capturing performances
Take advantage of the Q8n-4K’s compact size, vivid imagery, and high-quality audio, recording your genuine look and sound during live or studio performances.
Easy on the eyes
Record in 4K resolution at 30fps. With the F2.8/150º wide-angle lens, five field of view (FOV) settings, and brightness adjustments, the Q8n-4K produces vivid video quality at every shoot.
Livestreams
Easily connect via USB to your computer and stream to your favorite platforms.
Set the Scene
Get the right look in any setting using Scene presets for Indoor, Outdoor, Nighttime and Concert Lighting. Alternatively, the Auto setting will optimize lighting based on your environment.
Listen Up
Use the stereo headphone output jack and on-screen level meters to monitor your sound.
Independent Filmmaking
The Q8n-4K is compact and mobile, perfect for run-and-gun shoots while operating handheld or with a gimbal.

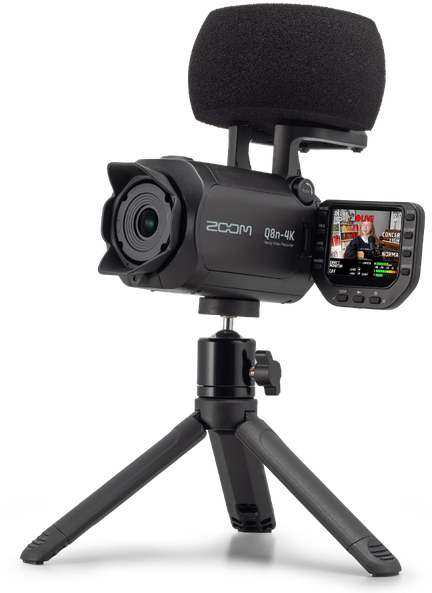

Selfie Mode
Be the star of your own production. Use the flip-out screen to view yourself while operating the Q8n-4K.

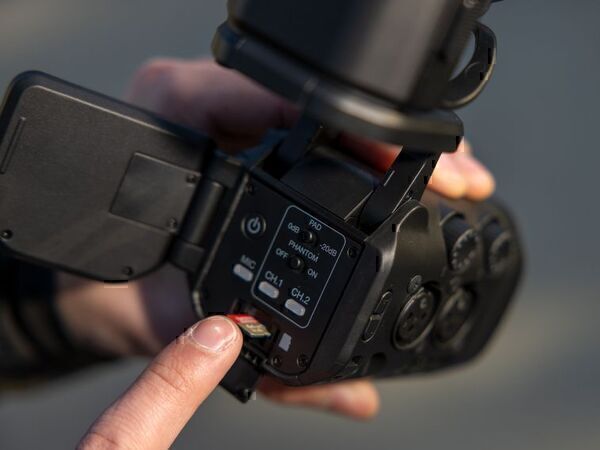

Power your shoots
Choose the right power source for your shoot by using the camera’s rechargeable Li-ion battery, charge via USB or with an optional AC adapter, all while recording to a mini-SD card up to 512GB.

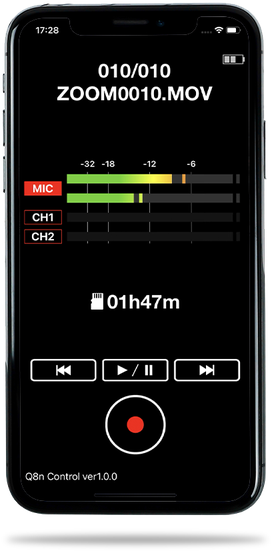

You’re in control
The Q8n Control app for iOS allows you to remotely monitor your levels and start and stop recording. *BTA-1 Bluetooth adapter required
- BT-03 Battery
- Lens Cover
- Lens Hood
- Windscreen
- USB Cable
- Quick Guide
- - 4K video and 4-track audio recorder
- - High-quality 150º wide-angle lens with 5 field of views
- - Interchangeable Zoom mic capsule system
- - Two XLR mic/line input (with phantom power)
- - Full-color flip LCD for self-movie capture
- - USB interface for livestreaming / data transfer
- - iOS/Android apps for remote control*
- - Optional BTA-1 Bluetooth adapter required
- Lens: F 2.8, 150° FOV
- Video format: MPEG-4 AVC/H.264 (MOV)
Video resolutions:
4K: 30, 25, 24
1080: 60, 50, 30, 25, 24
720: 60, 50, 30, 25, 24
Audio formats WAV:
96 kHz/24-bit, 16-bit
48 kHz/24-bit, 16-bit
44.1 kHz/24-bit, 16-bit
Audio functions:
LoCut: Off / 80 Hz / 120 Hz / 160 Hz / 200 Hz / 240 Hz
Fx: Off / Limiter / Compressor / Leveler / DeEsser / NoiseGate
Level: −∞ dB – +10 dB
Pan: L100 - Center - R100
Delay: 0 ms, 10 ms … 300 ms (only during web camera use)
Direct Monitor: On/Off (only during web camera and USB mic
Image functions:
FOV: 5 steps
SCENE: AUTO / INDOOR / OUTDOOR / NIGHT / CONCERT LIGHT
Self timer: OFF / 3 sec / 5 sec / 10 sec
BRIGHT: LOW / NORMAL / HIGH
Audio inputs:
MIC:
XY Mic: XYQ-8 (120° XY stereo mic）
Maximum sound pressure: 120 dBSPL
Input gain: −∞ dB – 43 dB
INPUT 1/2:
Input connector: XLR
Input gain (PAD OFF): −∞ dB – 55 dB
Input impedance : 1.8 kΩ or more
Maximum permissible input level: +26 dBu (PAD ON)
Phantom power: +12 V / +24 V / +48 V
Equivalent input noise: –120 dBu or less
Output connector:
Combined line/headphone stereo mini jack
HDMI micro Type D
Built-in speaker: 300 mW 8 Ω mono speaker
Recording media: microSD / microSDHC / microSDXC (512 GB maximum)
USB:
Type-C < WEBCAM > Class: UVC 1.0 + UAC 1.0
Formats: 720 p, 1080 p WVGA video
48 kHz/16-bit audio < CARD READER >
Up Stereo
Class: USB Mass Storage < USB MIC > Class: UAC
1.0, Format: 44.1 kHz/16-bit
Up: 2 ch, Down: 2 ch
- Note: Card reader and USB mic functions support iOS devices
- Note: Supports USB bus power operation
- Note: Use USB cable that supports data transfer.
- Remote: ZOOM
- BTA-1 or other dedicated wireless adapter
Power:
Lithium-ion battery: DC 4.2 V maximum voltage, DC 3.7 V nominal voltage, 1600 mAh capacity AC adapter (ZOOM AD-17): DC 5 V/1 A Recharging times.
By USB 2.0 port: about 4 hours and 30 minutes By USB 3.0 port: about 3 hours and 00 minutes Using ZOOM AD-17: about 3 hours and 00 minutes Battery operation time.
4K/30: 1 hour and 20 minutes 1080/30: 2 hour and 30 minutes
Note: MOV mode, 48 kHz/24-bit, XYQ-8 connected, no XLR input, Power Saving enabled
| Key attributes | |
|---|---|
| Number Of Tracks | 2 |
| A/D Resolution | 24-bit/96kHz |
| Analog Inputs | XLR 1/4" |
| Analog Outputs | XLR 1/4" |
| Portable Recording Equipment attributes | |
|---|---|
| Built-In Speaker | Yes |
| USB | Yes |
| Product Details | |
|---|---|
| Product Number | 236120 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Portable Recording Equipment | |
| Date | April 2022 |
| Dimension | |
|---|---|
| Box Depth | 230mm |
| Box Height | 135mm |
| Gross Weight | 0.88kg |
