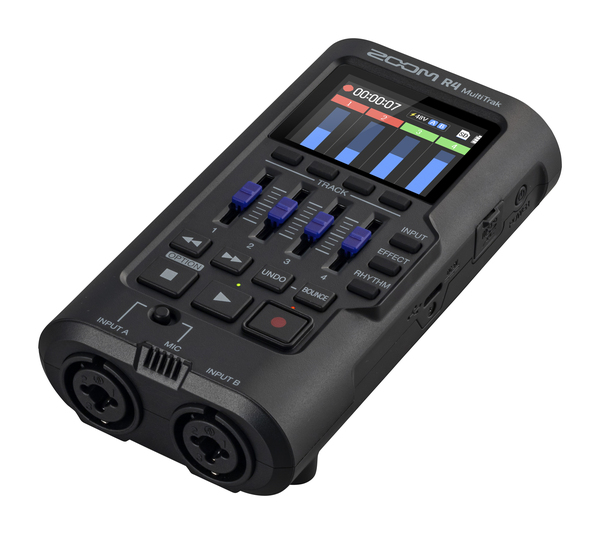

Zoom R4 MultiTrak
| Product # | 246163 |
| Brand | Zoom |
| Series | Zoom R |
| Category | Portable Recording Equipment |
| Brand Category | Zoom - Portable Recorders |
Recommended accessories
ADD YOUR OWN EFFECTS
Each track features a 3-band EQ, pan, echo and reverb to refine your mix. Input Effects: Apply effects to Input A, such as amp simulations, delays, distortions and more.
BUILT-IN MICROPHONE
The R4 features a high quality built-in microphone, perfect for acoustic guitar, vocals or recording a quick reference recording.
MUCH MORE THAN A METRONOME
The R4 has a pre-installed rhythm section with over 80 different drum patterns to play along with from genres like rock, hip hop, funk, heavy metal and more.
EVERY RECORDING IS SAVED
Tracks you record are automatically saved individually, even after bouncing. These tracks or any other audio files can be loaded into a project on the R4
32-BIT FLOAT AUDIO INTERFACE
The R4 is also a powerful 2-in/2-out USB audio interface with 32-bit float technology. Connect it to either your computer or your smartphone.
CONTROL AND CREATE
With a fader for each track and dedicated hardware buttons for the most commonly used functions, you don't have to go into the menu to record your music. jump.
DRIVEN R YOUR IDEAS

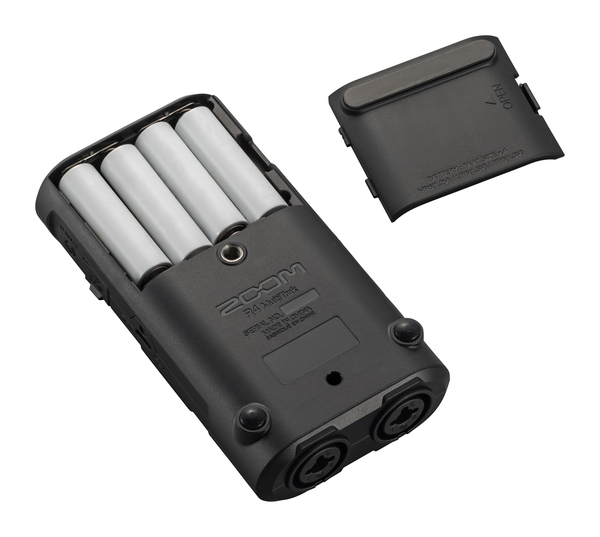

The R4 can be powered by 4 AA batteries or via its USB-C port.
- - 4 recording tracks + bounce track to add unlimited tracks
- - Dual AD circuit with 32-bit float audio recording technology (no clipping)
- - 2 XLR/TS combo inputs (combo jacks with phantom power) for microphones, guitars, keyboards
- - Stereo 3.5mm headphone output for monitoring your recordings.
- - 4 faders for volume control of each track
- - Integrated omni microphone for high-quality ambient recordings
- - 2-inch color LCD for easy interface navigation
- - EFFECT section with EQ, reverb, delay and guitar effects
- - RHYTHM section with drum patterns
- - USB audio interface function with 32-bit float audio
- - ¼-inch-20 thread for mounting on tripods and other accessories.
- - Up to 1TB Micro SD card.
- - Operates on 4 AA batteries or AC power via USB-C port (optional)
CHANNELS: 2 (XLR/TS inputs) +1 (built-in microphone) XLR/TS INPUTS:
- CONNECTIONS: XLR (2: HOT)/TS combo jacks
- INPUT GAIN: No adjustment required (two AD converter circuits are used) INPUT IMPEDANCE: XLR 2.3 kΩ, TS 1 MΩ
- MAXIMUM INPUT LEVEL: MIC: +4 dBu
- PHANTOM VOLTAGE: +48 V equivalent input noise: -120 dBu or less (IHF-A)
- MIC INPUT: MIC TYPE: Omnidirectional
- SENSITIVITY: -32 dB, 1 kHz at 1 Pa
- INPUT GAIN: No adjustment required (two AD converter circuits are used)
- MAX. SOUND PRESSURE INPUT: 115 dB SPL
- OUTPUTS: HEADPHONES: CONNECTOR: 3.5 mm stereo mini jack
- MAXIMUM OUTPUT LEVEL: 20 mW +20 mW (32 Ω load)
- RECORDING: RECORDING MEDIA: 4GB-32GB microSDHC cards, 64GB-1TB microSDXC cards WAV: SUPPORTED FORMATS: 48kHz, 32-bit float, mono/stereo
- MAXIMUM SIMULTANEOUS RECORDING TRACKS: 2 INPUTS
POWER SUPPLY:
- BATTERIES: 4 AA AC
- ADAPTER (Optional Not Included): ZOOM AD-17 (DC 5V/1A)
- USB bus power supply is supported.
- DISPLAY: LCD: TFT/240 x 320 dots, backlight: white
- USB: CONNECTION: USB Type-C
- MASS STORAGE: CLASS USB 2.0 High Speed
- AUDIO INTERFACE WITH REC: CLASS: USB 2.0 High Speed
- SAMPLING RATE: 48 kHz BIT RATE: 24 bit/32 bit float CHANNELS: 2 inputs/2 outputs
- ESTIMATED BATTERY RUNNING TIME: 48 kHz/32-bit float, 2-channel recording to microSDHC card. Alkaline batteries: about 7 hours
- DIMENSIONS: 74mm (W) × 138mm (D) × 36mm (H). Weight (including battery): 287ｇ
| Product Details | |
|---|---|
| Product Number | 246163 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Portable Recording Equipment | |
| Date | March 2024 |
| Dimension | |
|---|---|
| Gross Weight | 0.44kg |
