spl Track One MK3
| Product # | 250687 |
| Brand | spl |
| Category | Channel Strip |
| Brand Category | spl - Channel Strips |

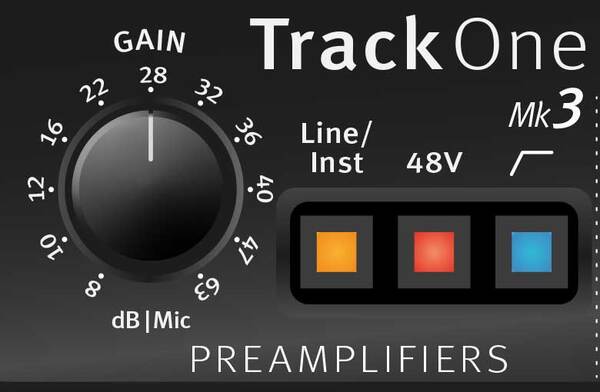

Preamplifiers
The Track One is equipped with two preamps: a microphone preamp with 48V phantom power and a separate instrument preamp. Both are tuned to a sound-neutral, open and transparent characteristic.
Gain
The gain control can be used to adjust the preamplification. For microphone signals, a preamplification of up to 63 dB can be realized – so even really demanding microphones can show their qualities. The control range for line signals ranges between -12 dB and +22 dB. The control range for instrument signals ranges between 0 dB and +35 dB.

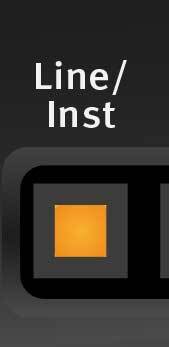

Analog Plugin
Track One Mk3 offers the possibility to process line signals.This means that sources with line level, such as an analog signal from an audio interface, can be processed with de-esser, compressor, limiter and equalizer and then be recorded again. In this way, Track One Mk3 becomes an “analog plugin” within an insert of a DAW.

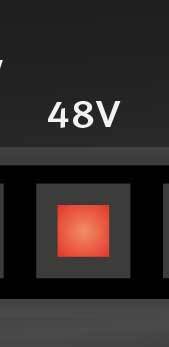

48V Switch
The 48V switch activates the required phantom power of 48 volts for the use of condenser microphones.

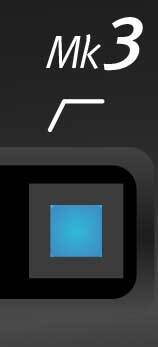

Highpass Filter
A highpass filter with 6 dB per octave reduces impact noise below 80 Hz.

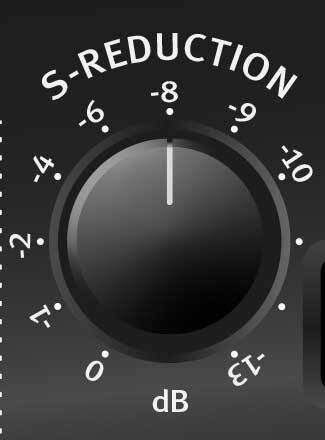

De-Esser
Unobtrusively and effectively, the Auto-Dynamic De-Esser removes distracting S-sounds, in a mix or on vocal tracks. S-frequencies get detected and mixed back phase-inverted into the main signal, thus simply deleting sibilants in the original signal. The Auto-Threshold control maintains constant processing even as the singer’s distance from the microphone varies. The result is tonally neutral, unobtrusive and extremely effective. Even at high S-reduction values, the de-essing has no significant effect on the character and timbre of the voice.

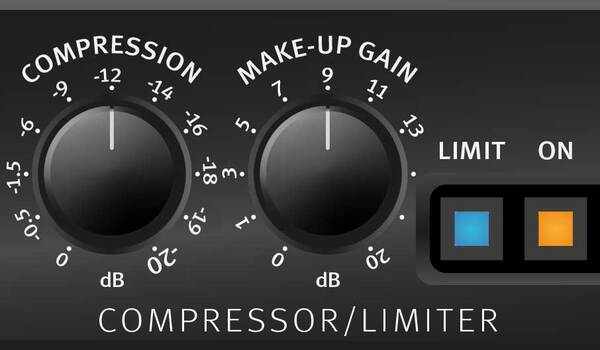

Compressor / Limiter
The compressor is also extremely easy to operate via a controller; its strength lies in its unobtrusive, musical operation. The compressor/limiter section has excellent specifications in terms of noise and distortion.

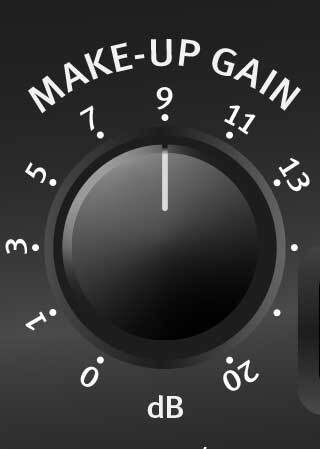

Make-Up Gain
The Make-Up Gain control can be used to make up for the overall level reduction caused by compression. A value between 0 dB and 20 dB can be set by which the level is increased again after compression. With the help of the Gain Reduction display on the panel, the adjustment is very simple: if the maximum reduction value caused by the loudest part is e.g. -9 dB, the Make-Up Gain control should be set to values around +9 dB.

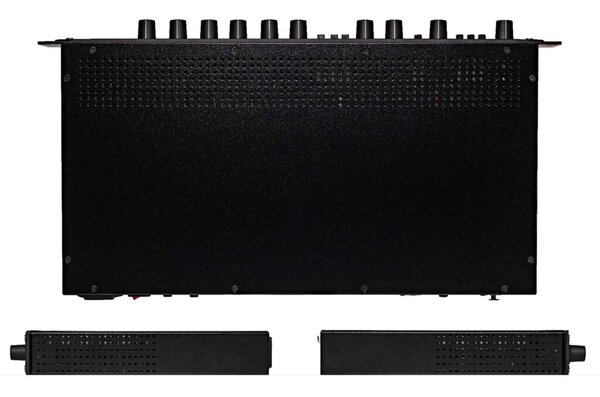

Looks great, feels great – and lasts for a lifetime
Track One Mk3 has a 4 mm thick, black anodized aluminum front panel and aluminum knobs milled from solid. The housing is made of high-quality steel and is powder-coated in elegant black.
- - Channel strip with de-esser, compressor/limiter and EQ
- - Microphone preamp with 68 dB gain
- - 48 V phantom power and switchable high-pass filter at 80 HZ
- - Line input with adjustable gain from -12 dB to +22 dB
- - 1x 6.3 mm jack instrument input adjustable from 0 dB to +35 dB
- - De-esser with adjustable S-reduction
- - Compressor with adjustable threshold via compression control, make-up gain and gain reduction display
- - Limiter circuit designed as a soft limiter
- - Equalizer with semi-parametric low/mid and mid/high bands as well as air band with center frequency at 19 khz
- - Compressor link function
- - 1x balanced XLR output and 1x unbalanced 6.3 mm TS jack output
- Number of Channels: Single channel
- Phantom Power: Yes
- EQ: Yes
- Compressor: Yes
- De-Esser Frequency Response: 10Hz-195kHz
- Analog Inputs: 1 x XLR, 1 x 1/4" TS
- Analog Outputs: 1 x XLR, 1 x 1/4" TRS
- Other I/O: 1 x 1/4" TRS (compressor link)
- Rack Spaces: 1U
- Power Source: Standard IEC AC Cable
- Height: 1.73"
- Depth: 8.27"
- Width: 19"
- Weight: 7.49 lbs
