| Product # | 245260 |
| Brand | Strymon |
| Series | Strymon dBucket |
| Category | Delay Pedal |
| Brand Category | Strymon - Delay Pedals |
Recommended accessories

MIDI - Limitless Possibilities
Brig features full MIDI implementation and 300 presets, allowing you to control it remotely by sending MIDI commands from your controller or DAW via the EXP/MIDI jack or USB-C connection. Remotely bypass or engage the pedal, automate decay time or other knob adjustments in your DAW or recall unique presets for each song on your setlist — the possibilities with MIDI are limitless.

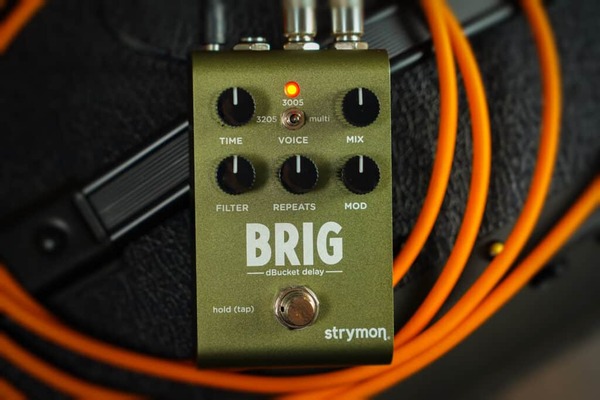

True/Buffered Bypass
Brig lets you choose between electromechanical relay-switched true bypass for a 100% untouched and unprocessed signal when the pedal is not engaged (which is the default), or our premium buffered bypass, which preserves your signal’s integrity by preventing the high frequency roll-off that can happen due to longer cable runs.

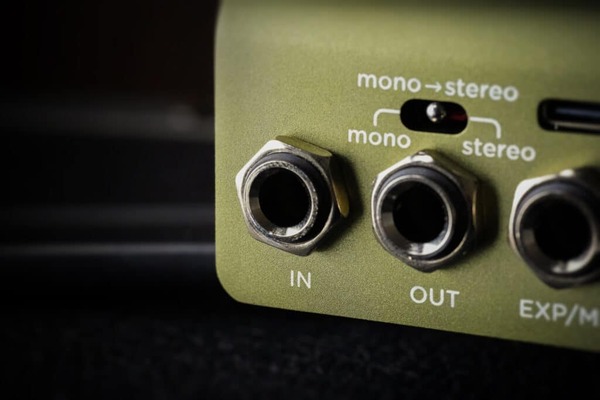

JFET Input - Analog Touch
Uncompromised dynamics and feel. Exceptional touch sensitivity and responsiveness. Brig feels just as good as it sounds, thanks to a high-impedance, ultra-low noise and discrete Class A JFET preamp input.

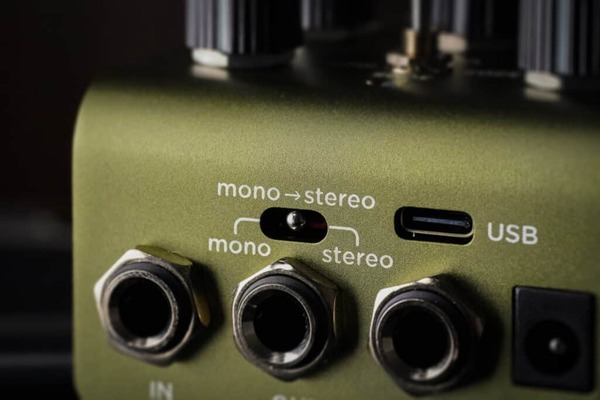

Moving In Stereo
Even though it might look like it’s a standard mono effect, there’s no need to make compromises when it comes to signal routing or pedal placement with Brig — it’s a stereo delay pedal with full stereo in/out capabilities. Equipped with a single TRS input and TRS output jack, the pedal keeps to a compact form factor while still giving you the option to use it in stereo. A dedicated rear panel Input switch allows you to determine the audio routing, selecting between Mono In → Mono Out, Mono In → Stereo Out, or Stereo In → Stereo Out (stereo in and out requires a TRS cable for each jack).

ARM Processor - Power to the Pedal
An evolution in technology led by mobile phones and laptop computers now allows our pedals to perform more simultaneous processes than ever before, and with significantly less power draw. That means more processing power for every sonic nuance, and less power consumption on your pedal board.
- - Brig is a compact, flexible delay pedal; and it’s a whole lot more than just a ‘cut-down Brigadier’!
- - Three distinct bucket brigade voicings based on iconic 70’s and 80’s BBD circuits incl. true stereo delays: MN3205 and MN3005 vintage chip voicings, plus a pair of cross-coupled delay machines with golden ratio timing for wonderfully complex back and forth delays with a huge stereo field.
- - Unique Filter control for tuning noise in or out, shaping the tone of the repeats and
- - Set 3205/minimum delay time for a gorgeous BB chorus effect
- - Full MIDI-EXP integration - 300 onboard presets, realtime parameter control and more.
- - Mono-to-mono, Mono-to-stereo and Stereo-to-stereo operation.
- - Glitch-free tap tempo, unrestricted by the original max. delay times of both classic bucket brigade chips!
- Low impedance TRS stereo output
- Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection
- USB jack for controlling via MIDI from a computer or for performing firmware updates
- Premium JFET analog front end
- Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
- 520MHz ARM Superscalar processor
- 32-bit floating point processing
- 20Hz to 20kHz frequency response
- Audio Input Impedance: 1M Ohm
- Audio Output Impedance: 100 Ohm
- Typical signal to noise ratio: 116dB
- Strong and lightweight anodized aluminum chassis
- Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA (power supply NOT included)
- Dimensions: 4.6” deep x 2.7” wide x 2.5” tall / 11.7 cm deep x 6.9 cm wide x 6.4 cm tall
- Designed and built in the USA
| Key attributes | |
|---|---|
| Battery Operated | No |
| Effect Types | Delay |
| True Bypass | Yes |
| General Information | |
|---|---|
| Manufacturer information | Strymon Europe
Unit 19B Hillside IP32 7EA Suffolk United Kingdom chrisgooddie@me.com |
| Delay Pedal attributes | |
|---|---|
| PSU Included | No |
| Analog/Digital | Analog |
| Output Configuration | Stereo |
| Input Configuration | Stereo |
| Mini Form | No |
| Voltage | 9V |
| Product Details | |
|---|---|
| Product Number | 245260 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Delay Pedal | |
| Date | July 2023 |
| Product Quantity | |
|---|---|
| Unit | 1 piece(s) |
| Dimension | |
|---|---|
| Gross Weight | 0.42kg |
