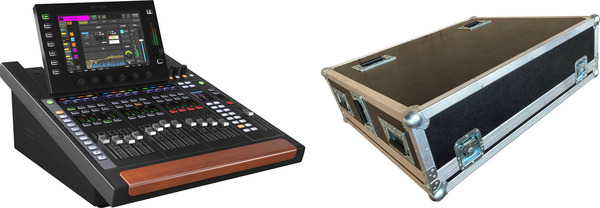

WING Compact Case Bundle
EUR 2822.50
1 piece(s)
WING (Slate Grey)
EUR 2721.70
EN
- Log in

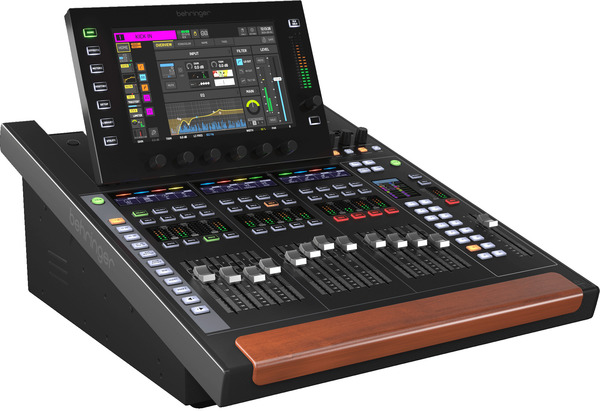

Behringer WING Compact
EUR 2520.00
In stock
Online only
Expected delivery: 07 May - 13 May to your country (AT)
Incl. VAT, free shipping
| Product # | 248662 |
| Brand | Behringer |
| Series | Behringer WING |
| SubSeries | Behringer WING Black |
| Category | Digital Mixing Console |
| Brand Category | Behringer - Digital Mixers |
Recommended accessories
Variants
New condensed and rack-mountable digital mixer. WING Power, Small Footprint.
48-Channel, 28-Bus Full Stereo Digital Mixing Console, with 24-Midas PRO Preamps, 8 Midas PRO Outputs, 10" Touch Screen and 13-Fader Control Surface
Experience 48 Amazing FlexChannels
Stereo or Mono — You Decide Set all channel and buses to mono, stereo or even M/S while maintaining the full channel count (FX slots included) at no performance cost at all. Superior Sound, Seamless Setup Give musicians an immersive experience of full stereo in-ear monitoring with WING's 16 stereo buses. You can also add stereo insert effects to any channel with just a single click! Limitless Potential WING's flexible channel configuration adapts to your needs, offering up to 48 channels in any Mono, Stereo or M/S format.

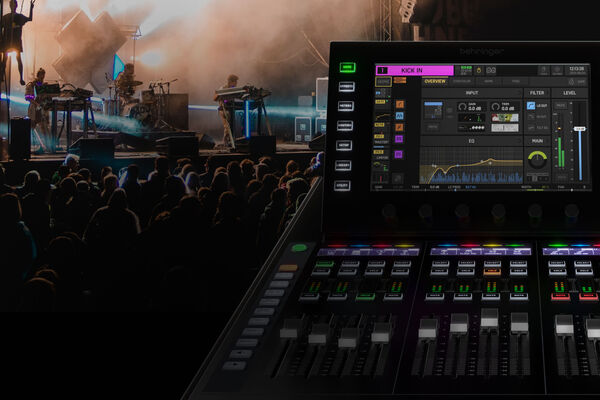

Take Full Control

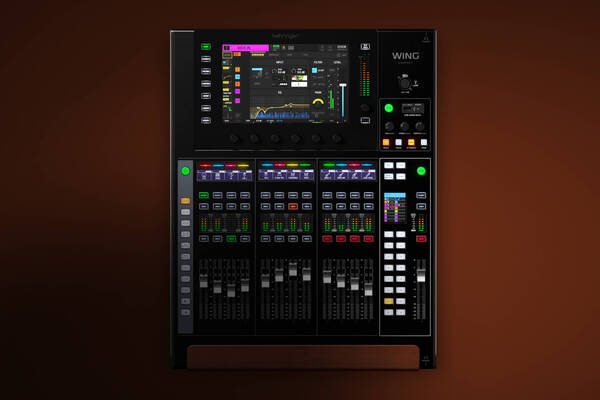

WING COMPACT features a console surface optimized for fast and accurate operation, excelling specifically in monitor mixing applications. Its dedicated master and bus section, with 4 layers of 16 hotkeys clearly labeled on its own color display, is breaking new ground in terms of speed and overview. The large touch screen with rotary controls for intuitive parameter adjustments offers the same innovative user interface that the full-size WING console is famous for.
Finally, All the Preamps You Need

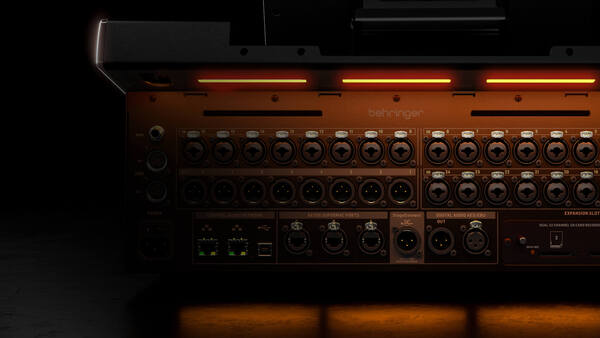

24 Midas PRO Preamps On Board Just like the venerable Midas M and PRO series mixers, WING COMPACT also comes with 24 Midas PRO preamps, delivering the same sweet sound and huge dynamic range. All the Digital I/O It’s compact but uncompromising. The WING COMPACT has exactly the same number of digital I/O as the full-size WING: AES50, USB, AoIP, StageConnect—you name it.
Your "Source" of Audio

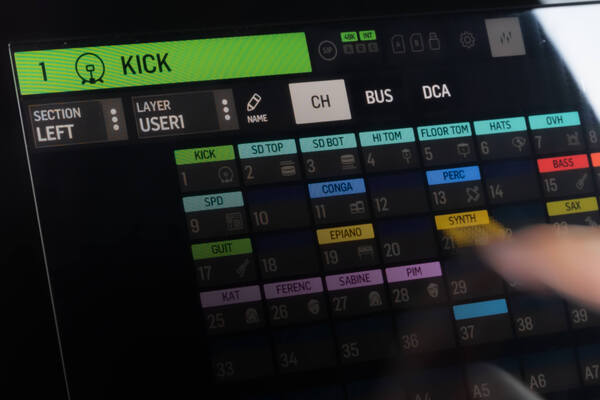

WING stores the configuration (stereo/mono/mid-sides), gain, phantom power, along with a name, an icon, color and tags directly to every input. This combination is called a Source. You can easily edit Sources using your iPad while making the connections on stage. Channels are automatically configured from the connected Source information and are ready to go. This enables quick setups and on-the-fly adjustments, prevents errors, and makes it easier than ever to manage WING's 370+ inputs. It’s like having your own custom toolbox, where everything you need is perfectly organized and ready to use.
Literally Hundreds of Ins and Outs

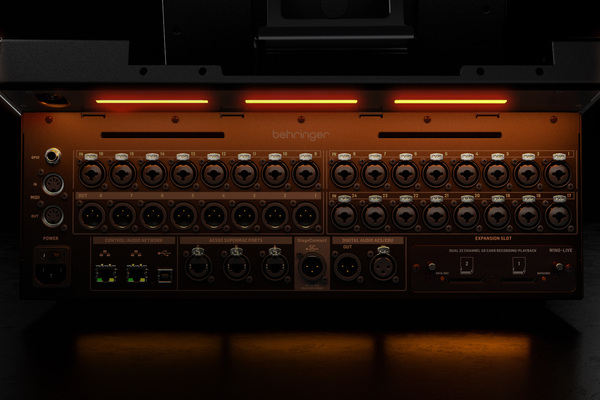

82 inputs and 368 outputs on WING COMPACT give you the freedom to adapt to any scenario: Switch between artists on the fly Manage multiple play out destinations with streaming or video Navigate complex live events with distributed or networked i/o Use the built-in 64-track recorder for virtual sound checks or live playback Connect to the 48-track USB audio interface for perfect integration with your DAW
Experience Total Recall
Save and recall precise FX parameters, specific channel settings, console settings, or entire shows. Whether you're working on a complex live performance or a musical theater project, WING offers an extremely comprehensive toolkit for recalling and triggering all elements of your show instantaneously, with the granularity you need.
- - 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
- - 13 motorized 100 mm faders with powerful master fader section - and 20 Custom buttons
- - 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
- - 10.1 inch main display with multi-touch screen and adjustable swivel
- - Unique “Sends on Fader”-Workflow with dedicated color TFT-Display and dedicated hot-keys to 44 Masters - Buses, Mains, Matrices, DCA's
- - Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- - Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- - Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
- - 3 AES50 ports for configurable 144 input and output signals with ultra-low jitter and latency
- - 16 True-stereo effects processing engines, with 80+ world-class algorithms
- - 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- - 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- - 40 Stereo Input Channels with 5 variable plug-in processing slots each
- - 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- - 8 Mute Groups and 8 DCA's for track grouping and consolidation
- - 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
- - Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
- - StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- - 2 channel GPIO for controlling almost anything with WING
- - 5-Pin MIDI in and out for control and synchronization with external devices
- - DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- - Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
- - 19" rack-mountable in 3 positions
- Input/Output Characteristics
- Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting): 10 Hz - 20 kHz
- Dynamic range, analog in to analog out (typical), XLR / aux: 111 dB / 108 dB
- A/D dynamic range, preamplifier and converter (typical), XLR / aux: 112 dB / 110 dB
- D/A dynamic range, converter and output (typical), XLR / aux: 118 dB / 112 dB
- Crosstalk rejection @ 1 kHz, adjacent channels: 100 dB
- Output level, XLR connectors (nominal / maximum): +4 dBu / +21 dBu
- Output impedance, XLR connectors (unbalanced / balanced): 75 Ω / 75 Ω
- Input impedance, TRS connectors (unbalanced / balanced): 20 kΩ / 40 kΩ
- Non-clip maximum input level, TRS connectors: +16 dBu
- Aux output level, TRS (nominal / maximum): +4 dBu / +16 dBu
- Aux output impedance, TRS (unbalanced / balanced): 150 Ω / 300 Ω
- Phones output impedance / maximum output level: 1W Max @ 30 Ohm
- Residual noise level, XLR out 1-16 connectors, unity gain: 97 dBu
- Residual noise level, aux and monitor TRS out connectors: 95 dBu
- Displays
- Main screen
- 10.1" TFT LCD, 1280 x 800 px, capacitive touch
- Main screen swivel, continuous adjustment
- 15°- 60°
- 4-channel group LCD screen with RGB color strip per channel
- 320 x 48 monochrome
- Controls
- 100 mm motor faders
- 12 + 1
- Touch-sensitive rotary controls
- 3 + 7 + 11 + 4 + 4
- Custom controls
- 8
- Fully assignable rotary controls
- 4
- Fully assignable backlit buttons
- 8 + 8
- Variable rotary controls / buttons
- 4 / 4
- Power
- Switch-mode power supply
- Auto-ranging 100-240 VAC (50/60 Hz)
- Power consumption
- 130 W
- Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting): 10 Hz - 20 kHz
- Dynamic range, analog in to analog out (typical), XLR / aux: 111 dB / 108 dB
- A/D dynamic range, preamplifier and converter (typical), XLR / aux: 112 dB / 110 dB
- D/A dynamic range, converter and output (typical), XLR / aux: 118 dB / 112 dB
- Crosstalk rejection @ 1 kHz, adjacent channels: 100 dB
- Output level, XLR connectors (nominal / maximum): +4 dBu / +21 dBu
- Output impedance, XLR connectors (unbalanced / balanced): 75 Ω / 75 Ω
- Input impedance, TRS connectors (unbalanced / balanced): 20 kΩ / 40 kΩ
- Non-clip maximum input level, TRS connectors: +16 dBu
- Aux output level, TRS (nominal / maximum): +4 dBu / +16 dBu
- Aux output impedance, TRS (unbalanced / balanced): 150 Ω / 300 Ω
- Phones output impedance / maximum output level: 1W Max @ 30 Ohm
- Residual noise level, XLR out 1-16 connectors, unity gain: 97 dBu
- Residual noise level, aux and monitor TRS out connectors: 95 dBu
- Displays
- Main screen
- 10.1" TFT LCD, 1280 x 800 px, capacitive touch
- Main screen swivel, continuous adjustment
- 15°- 60°
- 4-channel group LCD screen with RGB color strip per channel
- 320 x 48 monochrome
- Controls
- 100 mm motor faders
- 12 + 1
- Touch-sensitive rotary controls
- 3 + 7 + 11 + 4 + 4
- Custom controls
- 8
- Fully assignable rotary controls
- 4
- Fully assignable backlit buttons
- 8 + 8
- Variable rotary controls / buttons
- 4 / 4
- Power
- Switch-mode power supply
- Auto-ranging 100-240 VAC (50/60 Hz)
- Power consumption
- 130 W
| Product Dimensions | |
|---|---|
| Depth | 574mm |
| Width | 454mm |
| Height | 225mm |
| Digital Mixing Console attributes | |
|---|---|
| Unit | 1 piece(s) |
| Product Details | |
|---|---|
| Product Number | 248662 |
| Brand | |
| Series | |
| SubSeries | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Digital Mixing Console | |
| Date | November 2024 |
| Dimension | |
|---|---|
| Weight | 15.92kg |
| Box Depth | 669mm |
| Box Width | 454mm |
| Box Height | 322mm |
| Gross Weight | 22kg |
