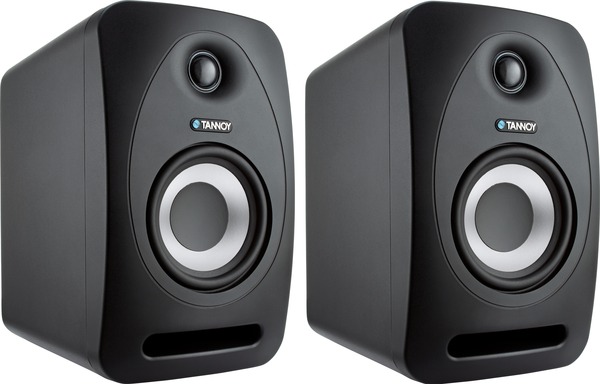

Tannoy Reveal 402 Set
EUR 279.60
4 piece(s) in stock
Online only
Expected delivery: 14 May - 20 May to your country (BE)
Incl. VAT, free shipping
| Product # | 171050 |
| Brand | Tannoy |
| Series | Tannoy Reveal |
| Category | Studio Monitor Pair |
| Brand Category | Tannoy - Pairs |
Accessories
Recommended accessories
Variants

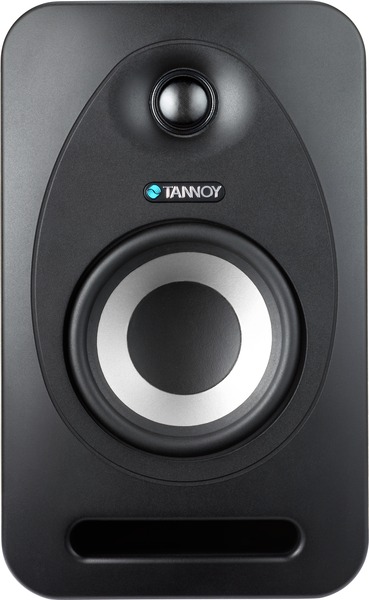

70 Watt 4" Bi-Amped Ultra-compact Studio Reference Monitor with Tuned Front-Firing Bass Port
Custom tweaked by TANNOY’s in-house speaker guru, Dr. Paul Mills, the active cross-over filters of REVEAL 402 have absolutely impeccable timing.
This produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix – as well as invite people to sit in with you during mixing sessions.
If you’re anything like us, you’re not only working on mixes but also listening to your favorite music! REVEAL 402 gives you the ultimate pathway for both.
With the Aux Link, setting up has never been easier. Use the included mini jack cable to plug into your favorite music player and link your monitors for an instant stereo setup – no need for external interfaces
- - Reference monitor ideal for desktop recording or secondary monitoring in personal studios
- - 70 Watt custom bi-amped design delivers impressive sound from an ultra-compact enclosure
- - 4" custom high-efficiency low frequency driver for extended bass response
- - ¾" soft-dome 'Poke-Resistant' tweeter for detailed high frequency reproduction
- - Accurately tuned front-firing bass port allows near-wall placement and ensures optimal low frequency performance
- - Ultra-wide sweet spot allows you to move around in your workspace without losing the stereo imaging of your mix
- - Rubberized foam base provides acoustic isolation
- - Adjustable equalization to match your listening environment
- - Balanced XLR input and unbalanced 1/4" TS input for maximum flexibility
- - 1/8" stereo input with monitor link facility for connection of mobile devices (cable included)
- - Tannoy - 90 years of British audio innovation
General:
Frequency Response: 56 Hz -48 kHz
Max SPL: 101 dB
Membrane Sizes:
HF: ¾" Soft Dome (19 mm)
LF/Mid Range: 4” (100 mm)
Bi-amp Output Power, RMS:
Power Output: 50 Watts
LF/Mid Range: 25 Watts
HF: 25 Watts
THD: < 0.9 %
Input Types and Impedances:
Balanced: XLR, 20 kOhm
Unbalanced: ¼" Jack, 10 kOhm
AUX Link: Mini Jack, 10 kOhm
AUX Link Output: Mini Jack
EQ Options:
HF EQ Settings: -1.5 dB HF Cut / Neutral / +1.5 dB HF Boost
Crossover Frequency: 2.8 kHz
Low Frequency Alignment: Optimized Front Port
Cabinet Dimensions:
HxWxD, inches: 9.5 x 5.8 x 8.4
HxWxD, mm: 240 x 147 x 212
Frequency Response: 56 Hz -48 kHz
Max SPL: 101 dB
Membrane Sizes:
HF: ¾" Soft Dome (19 mm)
LF/Mid Range: 4” (100 mm)
Bi-amp Output Power, RMS:
Power Output: 50 Watts
LF/Mid Range: 25 Watts
HF: 25 Watts
THD: < 0.9 %
Input Types and Impedances:
Balanced: XLR, 20 kOhm
Unbalanced: ¼" Jack, 10 kOhm
AUX Link: Mini Jack, 10 kOhm
AUX Link Output: Mini Jack
EQ Options:
HF EQ Settings: -1.5 dB HF Cut / Neutral / +1.5 dB HF Boost
Crossover Frequency: 2.8 kHz
Low Frequency Alignment: Optimized Front Port
Cabinet Dimensions:
HxWxD, inches: 9.5 x 5.8 x 8.4
HxWxD, mm: 240 x 147 x 212
| Key attributes | |
|---|---|
| Speaker Size | <4 |
| Power | 50W - 499W |
| Min. Frequency Range | 56Hz |
| Max. Frequency Range | 48000Hz |
| Studio Monitor Pair attributes | |
|---|---|
| Max SPL | <114dB |
| Type | Active |
| Configuration | Pair |
| Power Configuration | Bi-Amped |
| Input Types | XLR 1/8" |
| Output Types | XLR 1/8" |
| Product Details | |
|---|---|
| Product Number | 171050 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Studio Monitor Pair | |
| Date | April 2014 |
| Dimension | |
|---|---|
| Box Depth | 558mm |
| Box Height | 298mm |
| Gross Weight | 11.3kg |
Related Products
Reviews
(2)
View different language product reviews (1)
Probably the best monitor speakers in this price class. Balanced, neutral sound. Good size, not too big or small. XLR and Jack inputs, as well as a bonus 'aux' input if you want to connect your PC or phone! If you place them on your desk, get a pair of stands that tilt them up a little. AudioEngine ADS2 fit perfect.
