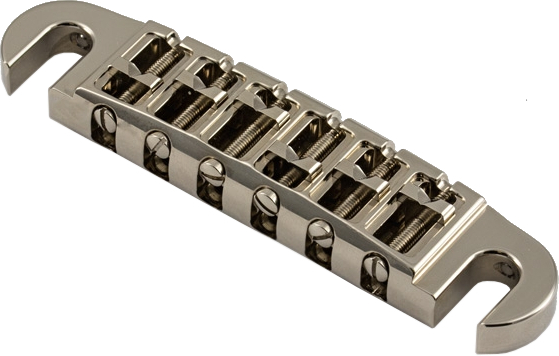

ABM 3024n Wraparound Bridge Bell Brass (nickel)

CHF 144.00
CHF 166.15
1 unit in stock
Ships immediately from our stock (CH)
Free delivery (CH)
The professional adjustable Wraparound with a wide intonation range

Tip1: 3022 Wraparound delivered with 5/16 " bolt / sleeve combination as required by the US standard. For Asian guitars the M8 version may be required (see accessories ABM 30208-L). Tip2: Normally, please do not replace the drive-in sleeves of existing guitars. If you do not have an appropriate tool, this action could be difficult. In addition, the sleeves are usually lacquered in. When removing the paint could tear. Our bushings have a standard outer diameter of 13mm. In sleeves vary depending on the manufacturer of the guitar strongly in outside diameter (10 to 13 mm). So we ask you first to ensure compatibility. The difference in sound is already enormously without sleeves exchange. Tip3: Please always use ABM studs for ABM Bridges! Bolts from third parties can cause problems.

5/16 "bolts with large heads and sockets, hex wrench and protector box.

  • - For 12 inch fretboard radius
  • - Useable for 82 mm post spacing
  • - By adjustable saddles you achieve a perfect intonation
  • - In addition, it is possible by 2 allen screws to extend the entire intonation range
  • - The wraparound 3024 can be used for both an angled, as for a straight installation
  • - Due to the small height and further intonation range, the bridge is compatible with the Gibson Melody Maker and LP Junior

- Saitenabstand: 52 mm, 82 mm Stiftabstand, 12" Radius, 5/16" Schrauben mit großen Köpfen
- Material: Aluminum
- Finish: Nickel

Product Details
Product Number
234606
Brand
ABM
Category
Electric Guitar Bridge
Brand Category
ABM - Electric Guitar Bridges
Relevancy rank in Category Electric Guitar Bridge
23 of 127
Date
April 2022
