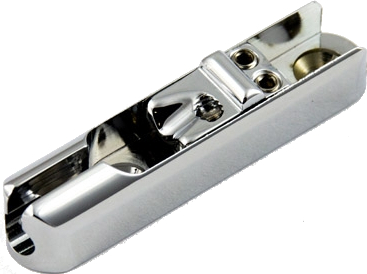

ABM 3210c Single Guitar Bridge (chrome)

The 3210 model shows simple elegance in the functional core. Due to the free arrangement, multi-string instruments can be equipped as desired without any problems. The bridge consists of the main body, which allows both string mounting types "Top Load" and "String-Thru". The intonation of the string rider is adjusted by means of an angled lock screw. The intonation range is more than sufficient and the built-in height adjustment allows an adjustment range of + 2.25mm. String spacing: Min.10mm per single bridge, material: bell brass Finish: chrome Tip: For the use of down-tunings and diversified scale lengths with more than 7 strings, a staggered "offset assembly" may be necessary! An unnotched saddle insert is used so that you can fine-tune the string position after installing the saddles. For assembly as a "String-Thru" variant, you also need a corresponding number of string end sleeves 7885. The maximum string gauge may be 2.45mm.
