Product # | 215010 |
Brand | Audient |
Series | Audient EVO |
Category | USB Interface |
Brand Category | Audient - USB Interfaces |
- - 2 x EVO Mic Preamps
- - Class Leading Converters
- - Smartgain
- - Smart Touchpoints
- - JFET Instrument Input
- - Speaker Outputs
- - Headphone Output
- - Platform Compatible
- - Monitor Mix
- - Monitor Pan
- - Audio Loop-back
- - USB2.0 Bus Powered
- - Phantom Power +48v
- - DAW Controlled Mic Pres
- - 24bit / 96kHz Stunning Audio Quality
- - Free Software + Plugins
- Mic Gain Range: 58dB
- Line Gain Range: 58dB (-10dB pad)
- Phantom Power: 48v +/-4v @ 10mA/Channel
- Mic EIN: <-128dBu
- CMRR: >85dB @ 1kHz
- Maximum Input Level: +16dBu
- Input Impedance (Mic): >3kΩ Balanced
- Input Impedance (Line): >10kΩ Balanced
- Frequency Response: +/-0.5dB 10Hz to 40kHz
- Crosstalk: <-105dBu @ 1kHz & 10kHz
- THD+N @ 0dBu (1kHz): <0.0015%
- SNR: 100dB
- XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
- 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
- D.I
- D.I Gain Range: 58 dB
- Maximum Input Level: +10dBu
- Input Impedance: 1MegΩ Unbalanced
- Frequency Response: +/-0.5dB 10Hz to 20kHz
- THD+N @ 0dBu (1kHz): <0.3%
- SNR: 100dB
- 1/4” Jack: TIP (Hot) & SLEEVE (Shield)
- ADC Inputs
- Digital Reference Level: 0dBFS = +8dBu
- Frequency Response: +/-0.5dB 10Hz to Fs/2
- Crosstalk: -105dBu @ 1kHz & 10kHz
- THD+N @ -1dBFS (1kHz): <0.001%
- Dynamic Range: 113dB A-weighted
- DAC Outputs
- Maximum Output Level: +11dBu
- Digital Reference Level: 0dBFS = +11dBu
- Output Impedance: <100Ω Balanced
- Frequency Response: +/-0.5dB 10Hz to Fs/2
- Crosstalk: <-110dBu @ 1kHz
- THD+N @ -1dBFS (1kHz): <0.0015%
- Dynamic Range: 113dB A-weighted
- 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
- Headphone Output
- Output Impedance: <50Ω
- Frequency Response: +/-0.5dB 10Hz to Fs/2
- Crosstalk: -110dBu @ 1kHz
- THD+N @ -1dBFS (1kHz): <0.0015%
- Dynamic Range: 113dB A-weighted
- Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
- Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
- Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
- 1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)
- DSP Mixer Roundtrip Latency (in to out):
- 44.1 kHz: 0.594ms
- 48.0 kHz: 0.552ms
- 88.2 kHz: 0.302ms
- 96.0 kHz: 0.281ms
- DAW Playback Latency (32 Sample Buffer for Software Instrument Playback)
- 44.1 kHz: ~2.5ms
- 96.0 kHz: ~2ms
- DAW Roundtrip Software Monitoring Latency (32 Sample Buffer, in to out)
- 44.1 kHz: 5ms
- 96.0 kHz: 4.1ms
- USB 2.0 High Speed
- No. Of Input Channels: 2 Analogue
- No. Of Output Channels: 2 Digital
- Connector: USB Type-C
- Included Cables: 1m USB 2.0 Type-C to USB Type-A
- Weight: 360g
- Dimensions: 140mm (w) x 67mm (h) x 67mm (d)
Key attributes | |
---|---|
Audio Interface Type | USB |
Total Inputs | 2 |
Total Outputs | 2 |
Midi In/Out | No |
Product Dimensions | |
---|---|
Depth | 67mm |
Width | 140mm |
Height | 67mm |
USB Interface attributes | |
---|---|
Mic Inputs | 2 |
Line Inputs | 2 |
Instrument/HiZ Inputs | 2 |
Analog Outputs | 2 |
Digital Inputs | None |
Digital Outputs | None |
+48V Phantom Power | Yes |
Product Details | |
---|---|
Product Number | 215010 |
Brand | |
Series | |
Category | |
Brand Category | |
Relevancy rank in Category USB Interface | |
Date | May 2020 |
Dimension | |
---|---|
Weight | 0.36kg |
Box Depth | 240mm |
Box Width | 140mm |
Box Height | 135mm |
Gross Weight | 0.74kg |
Reviews
View different language product reviews (2)

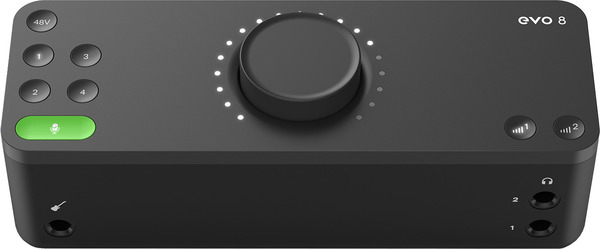

Let's address the construction first. The EVO series are made from plastic and not metal. I've owned three Focusrite Scarlett series interfaces and these were made of metal. But, really, I've never needed the protection or ruggedness of metal - so the EVO 8's build material shouldn't ever be a problem for me. thereafter, it's really easy - the features, the relatively low latency drivers, the EVO Software app - these are all excellent and, at this price point, put the EVO 8 at the top of any short list for consideration. The audio quality sounds very, very clean - I've only used the unit for a few weeks, but so far, so good. One minor caveat - be sure of your USB-C power and cabling - if you don't provide enough power, the EVO 8 cannot deliver phantom power to all four microphone preamps - so do your homework, and get the cabling right. Happy to have purchased this.
