WING Compact Case Bundle
CHF 2269.00
1 piece(s)
Behringer WING Compact
CHF 2022.00
CHF 2798.70
In stock
Ships immediately from our stock (CH)
Free delivery in Switzerland
| Product # | 248662 |
| Brand | Behringer |
| Series | Behringer WING |
| SubSeries | Behringer WING Black |
| Category | Digital Mixing Console |
| Brand Category | Behringer - Digital Mixers |
Accessories
CHF 153.00
CHF 369.00
CHF 660.00
CHF 1150.00
CHF 387.00
CHF 361.50
CHF 859.00
CHF 1509.00
CHF 519.00
CHF 273.50
CHF 124.80
CHF 292.50
CHF 535.00
CHF 271.00
CHF 269.00
CHF 258.00
CHF 155.50
CHF 437.50
CHF 667.00
CHF 699.00
CHF 17.00
CHF 674.00
CHF 109.00
CHF 69.90
CHF 185.00
CHF 199.00
CHF 169.00
CHF 409.00
CHF 499.00
CHF 329.00
Recommended accessories

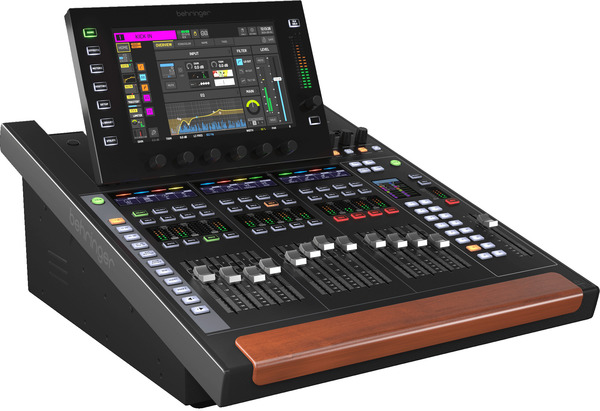

New condensed and rack-mountable digital mixer. WING Power, Small Footprint.
48-Channel, 28-Bus Full Stereo Digital Mixing Console, with 24-Midas PRO Preamps, 8 Midas PRO Outputs, 10" Touch Screen and 13-Fader Control Surface
- - 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
- - 13 motorized 100 mm faders with powerful master fader section - and 20 Custom buttons
- - 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
- - 10.1 inch main display with multi-touch screen and adjustable swivel
- - Unique “Sends on Fader”-Workflow with dedicated color TFT-Display and dedicated hot-keys to 44 Masters - Buses, Mains, Matrices, DCA's
- - Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- - Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- - Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
- - 3 AES50 ports for configurable 144 input and output signals with ultra-low jitter and latency
- - 16 True-stereo effects processing engines, with 80+ world-class algorithms
- - 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- - 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- - 40 Stereo Input Channels with 5 variable plug-in processing slots each
- - 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- - 8 Mute Groups and 8 DCA's for track grouping and consolidation
- - 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
- - Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
- - StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- - 2 channel GPIO for controlling almost anything with WING
- - 5-Pin MIDI in and out for control and synchronization with external devices
- - DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- - Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
- - 19" rack-mountable in 3 positions
- Input/Output Characteristics
- Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting): 10 Hz - 20 kHz
- Dynamic range, analog in to analog out (typical), XLR / aux: 111 dB / 108 dB
- A/D dynamic range, preamplifier and converter (typical), XLR / aux: 112 dB / 110 dB
- D/A dynamic range, converter and output (typical), XLR / aux: 118 dB / 112 dB
- Crosstalk rejection @ 1 kHz, adjacent channels: 100 dB
- Output level, XLR connectors (nominal / maximum): +4 dBu / +21 dBu
- Output impedance, XLR connectors (unbalanced / balanced): 75 Ω / 75 Ω
- Input impedance, TRS connectors (unbalanced / balanced): 20 kΩ / 40 kΩ
- Non-clip maximum input level, TRS connectors: +16 dBu
- Aux output level, TRS (nominal / maximum): +4 dBu / +16 dBu
- Aux output impedance, TRS (unbalanced / balanced): 150 Ω / 300 Ω
- Phones output impedance / maximum output level: 1W Max @ 30 Ohm
- Residual noise level, XLR out 1-16 connectors, unity gain: 97 dBu
- Residual noise level, aux and monitor TRS out connectors: 95 dBu
- Displays
- Main screen
- 10.1" TFT LCD, 1280 x 800 px, capacitive touch
- Main screen swivel, continuous adjustment
- 15°- 60°
- 4-channel group LCD screen with RGB color strip per channel
- 320 x 48 monochrome
- Controls
- 100 mm motor faders
- 12 + 1
- Touch-sensitive rotary controls
- 3 + 7 + 11 + 4 + 4
- Custom controls
- 8
- Fully assignable rotary controls
- 4
- Fully assignable backlit buttons
- 8 + 8
- Variable rotary controls / buttons
- 4 / 4
- Power
- Switch-mode power supply
- Auto-ranging 100-240 VAC (50/60 Hz)
- Power consumption
- 130 W
- Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting): 10 Hz - 20 kHz
- Dynamic range, analog in to analog out (typical), XLR / aux: 111 dB / 108 dB
- A/D dynamic range, preamplifier and converter (typical), XLR / aux: 112 dB / 110 dB
- D/A dynamic range, converter and output (typical), XLR / aux: 118 dB / 112 dB
- Crosstalk rejection @ 1 kHz, adjacent channels: 100 dB
- Output level, XLR connectors (nominal / maximum): +4 dBu / +21 dBu
- Output impedance, XLR connectors (unbalanced / balanced): 75 Ω / 75 Ω
- Input impedance, TRS connectors (unbalanced / balanced): 20 kΩ / 40 kΩ
- Non-clip maximum input level, TRS connectors: +16 dBu
- Aux output level, TRS (nominal / maximum): +4 dBu / +16 dBu
- Aux output impedance, TRS (unbalanced / balanced): 150 Ω / 300 Ω
- Phones output impedance / maximum output level: 1W Max @ 30 Ohm
- Residual noise level, XLR out 1-16 connectors, unity gain: 97 dBu
- Residual noise level, aux and monitor TRS out connectors: 95 dBu
- Displays
- Main screen
- 10.1" TFT LCD, 1280 x 800 px, capacitive touch
- Main screen swivel, continuous adjustment
- 15°- 60°
- 4-channel group LCD screen with RGB color strip per channel
- 320 x 48 monochrome
- Controls
- 100 mm motor faders
- 12 + 1
- Touch-sensitive rotary controls
- 3 + 7 + 11 + 4 + 4
- Custom controls
- 8
- Fully assignable rotary controls
- 4
- Fully assignable backlit buttons
- 8 + 8
- Variable rotary controls / buttons
- 4 / 4
- Power
- Switch-mode power supply
- Auto-ranging 100-240 VAC (50/60 Hz)
- Power consumption
- 130 W
| Product Dimensions | |
|---|---|
| Depth | 574mm |
| Width | 454mm |
| Height | 225mm |
| Product Details | |
|---|---|
| Product Number | 248662 |
| Brand | |
| Series | |
| SubSeries | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Digital Mixing Console | |
| Date | November 2024 |
| Product Quantity | |
|---|---|
| Unit | 1 piece(s) |
| Dimension | |
|---|---|
| Weight | 15.92kg |
| Box Depth | 669mm |
| Box Width | 454mm |
| Box Height | 322mm |
| Gross Weight | 22kg |
