Product # | 201392 |
Brand | Celestion |
Series | Celestion Bass |
Category | Bass Cabinet Speaker |
Brand Category | Celestion - Bass Cabinet Speakers |

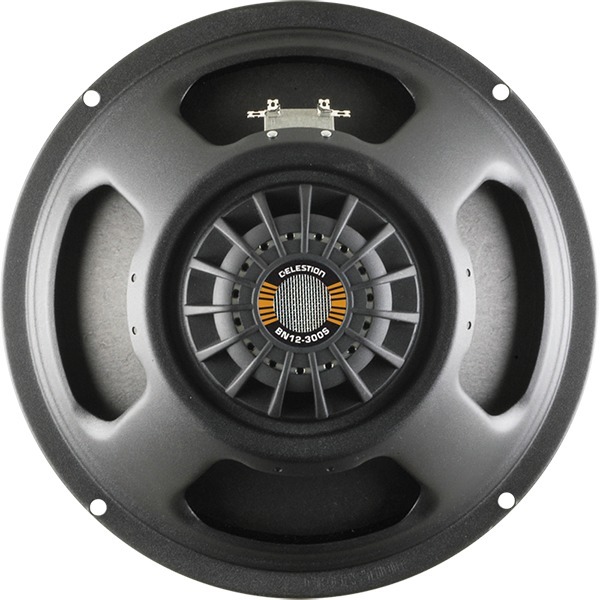

Also available in 4Ω, the BN12-300S is a 12 inch bass guitar speaker that delivers clear, well-balanced bass so you can be confident in your performance whether holding the line or punching through the mix.
General Specifications:
Nominal diameter: 12", 304.8mm
Power rating: 300W
Nominal impedance: 8Ω
Sensitivity: 99dB
Magnet type: Neodymium
Voice coil diameter: 2.5", 63.5mm
Coil material: Copper
Cone material: Kevlar loaded paper
Former material: Polyimide
Surround material: Cloth-sealed
Frequency range: 50-4000Hz
Xmax: 0.098", 2.5mm
Gap depth: 0.31", 8mm
Voice coil winding width: 0.51", 13mm
Small Signal Parameters:
D: 0.26m/10.2in
Fs: 62.1Hz
Mms: 52.38g/1.85oz
Qms: 2.74
Qes: 0.361
Mmd: 38.55g/1.36oz
Qts: 0.319
Re: 5.12Ω
Vas: 50lt/1.77cu.ft.
BI: 17.02Tm
Cms: 0.125mm/N
Rms: 7.455kg/s
Le (at 1kHz): 0.51mH
Mounting Information:
Cut-out diameter: 11.1", 283mm
Diameter: 12.2", 309mm
Mounting slot dimensions: 0.31", 7.9mm Ø
Mounting slot PCD: 11.7", 297mm
Number of mounting slots: 4
Overall depth: 5.2", 132mm
Unit weight: 4.4lb, 2.0kg
Nominal diameter: 12", 304.8mm
Power rating: 300W
Nominal impedance: 8Ω
Sensitivity: 99dB
Magnet type: Neodymium
Voice coil diameter: 2.5", 63.5mm
Coil material: Copper
Cone material: Kevlar loaded paper
Former material: Polyimide
Surround material: Cloth-sealed
Frequency range: 50-4000Hz
Xmax: 0.098", 2.5mm
Gap depth: 0.31", 8mm
Voice coil winding width: 0.51", 13mm
Small Signal Parameters:
D: 0.26m/10.2in
Fs: 62.1Hz
Mms: 52.38g/1.85oz
Qms: 2.74
Qes: 0.361
Mmd: 38.55g/1.36oz
Qts: 0.319
Re: 5.12Ω
Vas: 50lt/1.77cu.ft.
BI: 17.02Tm
Cms: 0.125mm/N
Rms: 7.455kg/s
Le (at 1kHz): 0.51mH
Mounting Information:
Cut-out diameter: 11.1", 283mm
Diameter: 12.2", 309mm
Mounting slot dimensions: 0.31", 7.9mm Ø
Mounting slot PCD: 11.7", 297mm
Number of mounting slots: 4
Overall depth: 5.2", 132mm
Unit weight: 4.4lb, 2.0kg
Product Dimensions | |
---|---|
Depth | 330mm |
Width | 330mm |
Height | 178mm |
Product Details | |
---|---|
Product Number | 201392 |
Brand | |
Series | |
Category | |
Brand Category | |
Relevancy rank in Category Bass Cabinet Speaker | |
Date | April 2018 |
Dimension | |
---|---|
Weight | 2.95kg |
Box Width | 330mm |
