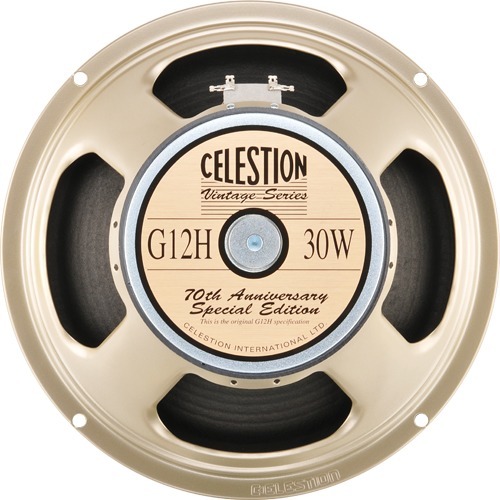

Celestion G12-H Anniversary (8 Ohm)

Celestion
CHF 139.00
CHF 160.70
2 units in stock
Ships immediately from our stock (CH)
Free delivery (CH)

Originally re-released a little over a decade ago, the G12H remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock.With a strong, aggressive low-end and powerful low-mids, the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. Used singly or in quartets it provides serious attitude to soft amp tones, easily cutting through loud stage levels for chord work, and imparting a hard edge to single notes.A favourite in the 'boutique' amplifier market, the G12H is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.

- General Specifications
- Nominal diameter - 12", 305mm
- Power rating - 30Wrms
- Nominal impedance - 8?
- Sensitivity - 100dB
- Chassis type - Pressed steel
- Voice coil diameter - 1.75", 44.5mm
- Voice coil material - Round copper
- Magnet type - Ceramic
- Magnet weight - 50oz, 1.42kg
- Frequency range - 75-5000Hz
- Resonance frequency, Fs - 85Hz
- DC resistance, Re - 6.7? and 13.1?
- Mounting Information
- Cut-out diameter - 11.1", 283mm
- Diameter - 12.2", 309mm
- Magnet structure diameter - 6.1", 156mm
- Mounting slot dimensions - 0.31",7.9mmØ
- Mounting slot PCD - 11.7", 297mm
- Number of mounting slots - 4
- Overall depth - 5.3", 135mm
- Unit weight - 10.4lb, 4.7k

Product Dimensions
Depth
330mm
Width
330mm
Height
152mm
Product Details
Product Number
197842
Brand
Celestion
Series
Classic
SubSeries
Vintage
Category
12" Speaker
Brand Category
Celestion - 12" Speakers
Relevancy rank in Category 12" Speaker
22 of 58
Date
February 2018
Dimension
Weight
5.45kg
Box Width
330mm
