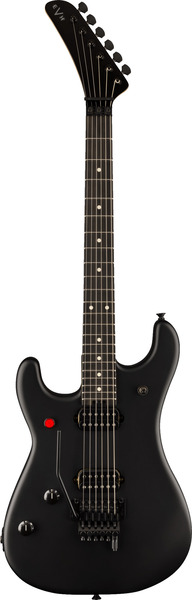

EVH 5150 Series Standard LH (stealth black)

EVH
Ebony Fingerboard

Like its predecessor, the 5150 Standard Left Hand features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched “hockey stick” headstock with EVH® logo decal. Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays. While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.” Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

  • - Neck
  • - Headstock: EVH® Hockey Stick
  • - Neck Material: Quartersawn Maple
  • - Neck Finish: Hand-Rubbed Satin Urethane
  • - Neck Shape: EVH® Modified "C" Backshape
  • - Neck Construction: Bolt-On with Graphite Reinforcement
  • - Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret
  • - Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
  • - Fingerboard Material: Ebony
  • - Position Inlays: Cream
  • - Side Dots: Cream
  • - Number of Frets: 22
  • - Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
  • - String Nut: Floyd Rose® R3 Locking
  • - Nut Width: 1.685" (42.8 mm)
  • - Nut Material: Floyd Rose® R3 Locking
  • - Body
  • - Body: Basswood
  • - Body Finish: Gloss Urethane
  • - Body Shape: 5150™
  • - Body Material: Basswood
  • Hardware
  • - Bridge: Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
  • - Tremolo Block: Brass
  • - Pickup Covers: Black
  • - Control Knobs: Black Knurled with White Indicator
  • - Switch Tip: Black
  • - Hardware Finish: Black
  • - Tuning Machines: EVH®-Branded Gotoh®
  • - String Trees: Floyd Rose® Retainer Bar
  • - Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
  • - Tremolo Arm: Floyd Rose® 1000 Series Locking
  • - Neck Plate: 4-Bolt Standard
  • - Strap Buttons: Oversized
  • Electronics
  • - Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
  • - Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking
  • - Pickup Configuration: HH
  • - Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
  • - Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
  • - Auxiliary Switching: Kill Switch

Product Details
Product Number
245126
Brand
EVH
Series
5150 Series
Category
Left-handed Electric Guitar
Brand Category
EVH - Left-handed Guitars
Relevancy rank in Category Left-handed Electric Guitar
35 of 100
Date
July 2023
