EVH Wolfgang Special QM (charcoal burst)
| Product # | 225356 |
| Brand | EVH |
| Series | EVH Wolfgang |
| SubSeries | EVH Wolfgang Special |
| Category | Electric Guitar ST-Model |
| Brand Category | EVH - ST Models |
Recommended accessories
Basswood Body with Quilt Maple Top
A basswood body provides excellent tonal response that is full and rich, along with overall warmth and sustain. The body is capped with a beautifully figured quit maple top for an elegant touch.

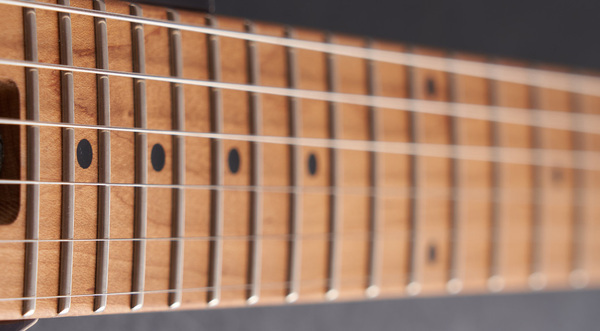

Baked Maple Neck and Fingerboard
The baked maple neck and baked maple fingerboard offer increased stability, crystal clear, bright tones and exquisite style with its warmer hue and beautiful grain definition. Roasting the neck and fingerboard removes moisture from the wood, making it more resistant to humidity shifts and warping.

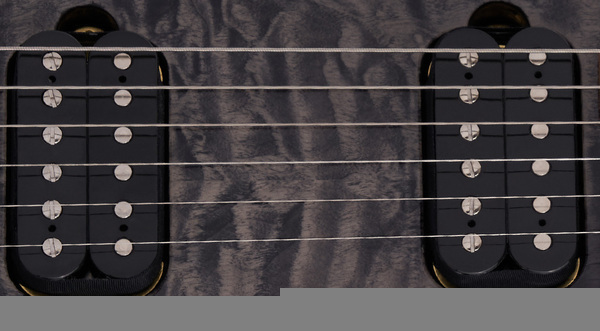

Direct Mount EVH Wolfgang Humbucking Pickups
Not all humbuckers are created equal. Direct mount EVH Wolfgang humbuckers with Alnico 2 magnets are hotter and harness Eddie’s scorching signature lead tone that captivated the world of rock ‘n’ roll in the ‘70s and ‘80s. These pickups deliver rich harmonics, cutting highs and snarling mids in spades.

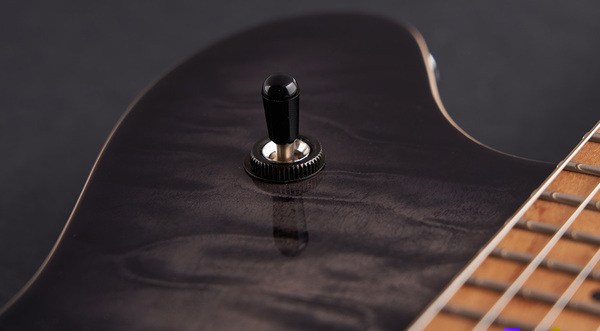

Versatile Switching & Controls
All Wolfgang Special models come complete with a versatile control layout. Explore the tonal landscape with the three-way toggle switch, which in position one engages the bridge pickup for robust rhythm riffing. Position two engages both pickups, while position three’s neck pickup provides a warmer tone for leads. The volume knobs houses a 500K EVH Bourns® low friction pot with treble bleed circuit for seamless swells, while the tone control with 250K EVH Bourns high friction pot keeps the knobs acutely dialed in.
EVH-Branded Floyd Rose Locking Trem, R2 Locking Nut and EVH D-Tuna
Eddie Van Halen was the first player to popularize the innovative Floyd Rose locking tremolo, even advising Floyd Rose on his early designs to integrate round disc finger-type tuners that you would see on a cello or violin. Now universally embraced, our EVH-branded Floyd Rose bridge features our EVH logo stamped on the bridge plate, steel saddles and a solid brass block. The Floyd Rose bridge and R2 (41.8 mm) locking nut is a professional-grade double-locking design that secures the strings in the saddle and nut, providing ultimate tuning stability and dynamic tremolo action. Standard equipment on Eddie’s personal guitars since the early ‘90s, the EVH D-Tuna is a unique patented device that enables players to drop the E to D and back, in an instant.
- - Scale Length: 25.5" (648 mm)
- - Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- - Fingerboard Material: Baked Maple
- Color: Charcoal Burst
- Number of Strings: 6
- Orientation: Right-Hand
- Body Finish: Gloss Urethane
- Body Shape: Wolfgang®
- Body Material: Basswood
- Body Binding: 1-Ply Cream
- Body Top: Quilt Maple
- Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
- Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking
- Pickup Color: Black
- Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
- Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
- Pickup Configuration: HH
- Neck Material: Quartersawn Baked Maple
- Neck Construction: Bolt-On with Graphite Reinforcement
- Neck Thickness: .805" at 3rd & .890" at 12th Fret
- Neck Finish: Hand-Rubbed Satin Urethane
- Neck Shape: Wolfgang® Backshape
- Scale Length: 25.5" (648 mm)
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Baked Maple
- Number of Frets: 22
- Fret Size: Jumbo
- Nut Material: Floyd Rose® R2 Locking
- Nut Width: 1.625" (41.3 mm)
- Position Inlays: Black Dot
- Side Dots: Black
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- Truss Rod Wrench: 2.5 mm Hex
- String Trees: Floyd Rose® Retainer Bar
- Headstock: EVH® Wolfgang®
- Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
- Hardware Finish: Chrome
- Tremolo Arm: Floyd Rose® 1000 Series
- Tremolo Block: Brass
- Tuning Machines: EVH®-Branded Gotoh®
- Control Knobs: Black Knurled with White Indicator
- Switch Tip: Black
- Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
- Strap Buttons: Oversized
| Key attributes | |
|---|---|
| Pickup Types | HH |
| Colour | Custom Design |
| Body Shape | ST-Model |
| Fingerboard Material | Maple |
| Body Material | Basswood |
| Body | |
|---|---|
| Guitar Construction | Solid Body |
| Orientation | Right-Handed |
| Top Material | Maple |
| Neck | |
|---|---|
| Fingerboard Radius | Compound" |
| Neck Finish | Hand-Rubbed Oil |
| Neck Material | Maple |
| Guitar Scale | 25.5" |
| Neck Profile | Custom |
| Number of Frets | 22 |
| Fret Size | Jumbo |
| Nut Width | 41mm |
| Position Inlays | Dots |
| Hardware | |
|---|---|
| Bridge Type | Floyd Rose |
| Hardware Finish | Chrome |
| String Gauge | .009" |
| Tuning Machines | Locking Tuning Machines |
| Coil Split | No |
| Including Bag | Not included |
| Product Dimensions | |
|---|---|
| Depth | 119mm |
| Width | 387mm |
| Height | 1069mm |
| General Information | |
|---|---|
| Manufacturer information | Fender Musical Instruments Corp.
17600 N. Perimeter Drive, Suite 100 85255 Scottsdale AZ United States |
| Electric Guitar ST-Model attributes | |
|---|---|
| Guitar Finish | Gloss Urethane |
| Product Details | |
|---|---|
| Product Number | 225356 |
| Brand | |
| Series | |
| SubSeries | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Electric Guitar ST-Model | |
| Date | December 2021 |
| Dimension | |
|---|---|
| Weight | 5.06kg |
| Box Width | 387mm |
