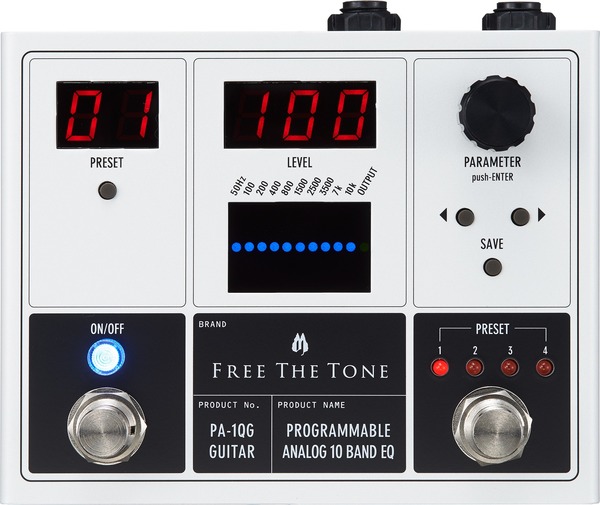

PA-1QG Programmable Analog 10 Band EQ (electric)
CHF 379.00
EN
- Log in

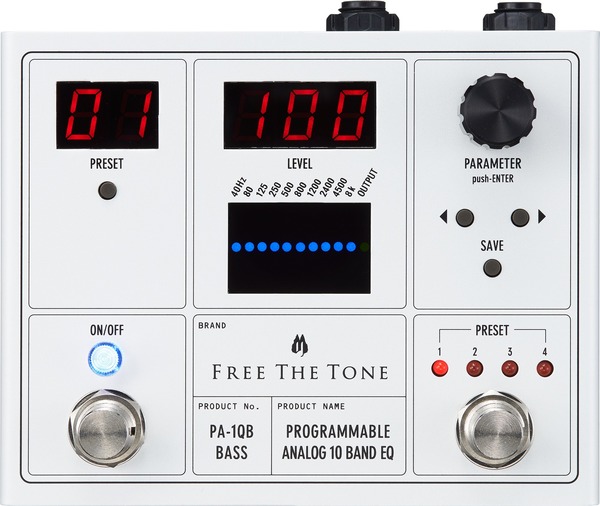

Free The Tone PA-1QB Programmable Analog 10 Band EQ (bass)
CHF 449.00
1 unit in stock
Ships immediately from our stock (CH)
Free delivery (CH)
| Product # | 198747 |
| Brand | Free The Tone |
| Category | Bass Equalizer Pedal |
| Brand Category | Free The Tone - Bass Equalizer Pedals |
Variants
A dream device that controls rich analog sound with the ease and versatility of digital control.
This is the same signal processing method you will find in graphic equalizers with conventional slider volume controls. The PA-1QB is an analog effects unit, but its parameter control section is a digital circuit that can precisely store and process the status of various parameters in the digital domain. This enables real-time parameter control via presets and MIDI.
The PA-1QB is an effects unit that fuses rich analog sound with the ease and versatility of a digital control device while maintaining a high level of sound quality. Experience its state-of-the-art sound and operability for yourself!
- - Number of presets: 99
- - Input impedance: INST min. 1 M[Ohm] / LINE min. 300 k[Ohm]
- - Output load impedance: min. 10 k[Ohm]
- - Max. input level: INST +4 dBm / LINE +14 dBm (EQ setting = flat)
- - Controls: Cursor keys, PARAMETER encoder, INST(-10dB)/LINE(+4dB) level selector switch
- - Frequencies:
- - PA-1QB: 40 Hz, 80 Hz, 125 Hz, 250 Hz, 500 Hz, 800 Hz, 1200 Hz, 2400 Hz, 4500 Hz, 8 kHz (±12 dB)
- - Terminals: 1/4" standard phone jack x 2 (input and output) DC9V input jack (for AC adapter), DIN 5-pin connector x 2 (MIDI IN and OUT/THRU)
- - Power supply: Dedicated DC9V AC adapter
- - Current consumption: max. 200 mA
- - Dimensions (W x D x H): 120 x 102.3 x 58.5 mm or 4.7 x 4.0 x 2.3 inches (incl. protuberances such as footswitch, jacks, etc.)
- - Weight (excl. accessories): approx. 350 g or 0.77 lbs
- - Accessories: Warranty card, manual, AC adapter, rubber feet x 4
- - Specifications and appearance subject to change without notice.
| Product Details | |
|---|---|
| Product Number | 198747 |
| Brand | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Bass Equalizer Pedal | |
| Date | January 2018 |
| Dimension | |
|---|---|
| Weight | 0.45kg |
| Gross Weight | 0.5kg |
