Klark DI 10P Pro DI

Passive Direct Injection Box
Klark
(3)
CHF 39.10
MSRP: CHF 56.85
In backorder
Shipping cost: CHF 6.00
Free delivery in Switzerland from CHF 50.-
Product #201679
BrandKlark Teknik
CategoryPassive Direct Injection Box
Brand CategoryKlark - Passive DI Boxes
Variants

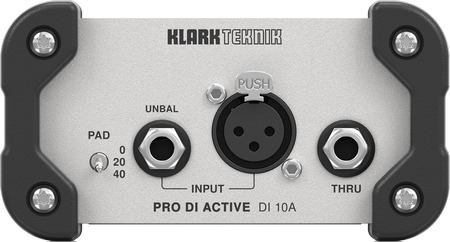

DI 10A Pro DI Active

0

(3)
DI 10A Pro DI Active
CHF 43.50
DI 10P Pro DI

0

(3)
DI 10P Pro DI
CHF 39.10
Passive DI Box with Stereo Input/Summed Mono Output, MIDAS Transformer and Extended Dynamic Range

Building on KLARK TEKNIK's storied legacy of highest-quality direct injection devices, the DI 10P PRO DI offers the same high headroom, dynamic response and sonic clarity you have come to expect. DI 10P is ideal for interfacing MP3, CD players, keyboard or drum submixers, and a variety of other stereo sources to mixing consoles. A passive device, the DI 10P does not require any form of external power to complete its mission. Equipped with a custom-built MIDAS transformer, fully adjustable independent level controls for the stereo input channels, DI 10P is the perfect stereo to mono XLR solution for professional audio and multimedia applications.

  • - Passive DI Box with stereo input and
  • - summed mono output
  • - Custom-built MIDAS transformer for highest signal integrity
  • - High headroom design offers superior sound quality
  • - Passive design does not require any power supply
  • - Stereo input on 1/8" TRS and RCA connectors
  • - Fully adjustable level control for both channels
  • - High quality Neutrik* XLR connector
  • - Fully transformer-isolated design ensures electrical separation
  • - Ultra-low noise and ultra-linear system for highest signal integrity
  • - Aluminium extrusion casing with protective rubber corners
  • - Compact and rugged design
  • - Earth Lift switch eliminates ground loop problems
  • - Designed and engineered in the U.K.

- Inputs
- Connectors RCA unbalanced, 1/8 TRS
- Impedance 7 k[Ohm]
- Outputs
- Connector XLR , balanced
- Impedance 170 [Ohm]
- System
- Frequency response 10 Hz to 91 kHz (± 1 dB)
- THD + N (distortion) <0.03% @ 1 kHz, +4 dBu
- Signal-to-noise ratio >120 dB @ 1 kHz, +4 dBu
- Power requirement Passive

Product Dimensions
Depth
112mm
Width
118mm
Height
64mm
Product Details
Product Number
201679
Brand
Klark Teknik
Category
Passive Direct Injection Box
Brand Category
Klark - Passive DI Boxes
Relevancy rank in Category Passive Direct Injection Box
36 of 57
Date
May 2019
Dimension
Weight
0.47kg
Box Depth
149mm
Box Width
118mm
Box Height
160mm

5
(3)

Instead of previously having to mix my instrumental choir playbacks from stereo to mono and re-save them in the DAW every time, I can simply insert this "Kischtli" after the playback, and we will get a full sound picture. No more pre-work, but also no more missing drum parts or empty sections of the stereo cabling, even when we have only used L or R for the mono PA at times. Problem solved!

Sound

Instead of previously having to mix my instrumental choir playbacks from stereo to mono and re-save them in the DAW every time, I can simply insert this "Kischtli" after the playback, and we will get a full sound picture. No more pre-work, but also no more missing drum parts or empty sections of the stereo cabling, even when we have only used L or R for the mono PA at times. Problem solved!
