LD-Systems MON 12 A G3

12" Active Loudspeaker

CHF 505.00
MSRP: CHF 603.00

Free delivery in Switzerland

Product #	245495
Brand	LD-Systems
Category	12" Active Loudspeakers
Brand Category	LD-Systems - 12" Active Loudspeakers
Series	LD-Systems MON LD-Systems MON G3
Release date	February 2024
Availability	In backorderNotify me

Shop	Availability
Giebenach BL	In backorder

Unit: 1 piece(s)

Add to wishlist

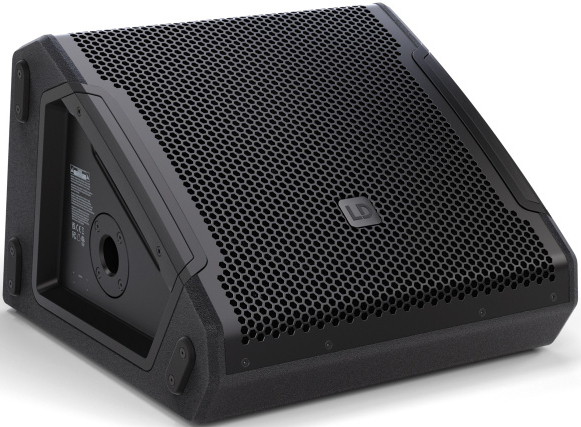

12" active coaxial stage monitor

Be the first to write a review for this product

This page contains auto-translated text

Description
Attributes
Properties
Specifications
Videos
Brand

Description

The MON 12 A G3 belongs to a completely newly developed family of active stage monitors that are designed to meet high performance requirements. The MON G3 series incorporates the advanced technology and high-quality materials found in high-end monitors primarily used in professional use. This quality is now made available to everyone. These include, for example, advanced coaxial speakers with an integrated 50° x 90° CD horn, which ensure the acoustic ideal of a real point sound source and thus outstanding audio properties even at short listening distances. Added to this is the high level of robustness, the extensive features and the elegant LD Systems design. For decades, 12"/1" stage monitors have been the happy medium when it comes to sonority, sound pressure and portability. With a coaxial structure for a real point sound source, smart electronics and high-quality design, the MON 12 A G3 brings this concept into the "modern era". The ideal radiation characteristics of 50° x 90° when used as a monitor or 90° x 50° when used in FOH mode make it an all-rounder that offers the right solution for a wide range of different tasks. Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This enables elegant, tidy cabling in multi-monitor setups or distributed sound systems.

Attributes

12" Active Loudspeaker attributes

Unit

1 piece(s)

Product Details

Product Number	245495
Brand	LD-Systems
Series	MON
SubSeries	G3
Category	12" Active Loudspeaker
Brand Category	LD-Systems - 12" Active Loudspeakers
Relevancy rank	30 of 63
Date	February 2024

Properties

- Compact and powerful stage monitor with high-quality technology
- Class D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
- Coaxial construction for a true point sound source with a 1.75" titanium diaphragm HF driver
- 12" woofer with 2.5" voice coil
- Optimized, practical radiation characteristics through 50° x 90° CD horn
- DynX® DSP (Gen.2) for distortion-free playback even at maximum volume
- 3-band EQ, notch filter, 4 application presets and delay function
- PowerCON-compatible, loop-through, professional power connection
- 35 mm tripod mount for FOH applications
- Durable polyurea coating and robust front grille

Specifications

- Product type: stage monitors
- Type: Active
- Color: Black
- System power (RMS): 300 W
- System power (peak): 1200 W
- Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
- Max. SPL peak (sine burst): 127 dB (fullspace @1m, 10% THD)
- Frequency range (-3 dB): 68 - 18000 HZ
- Frequency range (-10dB): 55 - 20000 Hz
- Crossover frequency: 1400 Hz
- Monitor angle: 33°
- Beam angle (H x V): 50° x 90°
- Width: 425mm
- Depth: 453mm
- Height: 315 mm
- Features: 3 band EQ (High, Mid, Low), delay line, notch filter
- Weight: 17.4kg
Woofer:
- Size woofers: 12 "
- Large woofer: 304.8 mm
- Magnet woofer: ferrite
- Woofer brand: Custom Made
- Woofer type: coaxial speaker
- Voice coil woofer: 2.5 "
- Voice coil woofer: 65 mm
- Housing design: bass reflex
- Housing material: 15mm birch plywood, 15mm MDF
HF:
- Horn: CD Horn
- Size tweeter: 1 "
- Tweeter size: 25.4 mm
- Magnet tweeter: ferrite
- Tweeter brand: Custom Made
- Voice coil tweeter: 1.75 "
- Voice coil tweeter: 44.45 mm
Amplifier module (integrated):
- Amplifier: Class D
- Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent
- Operating temperature: 0 - 40 °C
- Humidity range: < 80% (non-condensing)
- Fuse: T4AL 250V
- Controls: rotary-push encoder, on/off switch
- Display: LC display
- Power supply: SMPS
- Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
- Power consumption: 150W
- Power input/output: PowerCON compatible
- Line inputs: 2
- Line input connections: 6.3 mm jack, XLR combo
- Line passage: 2
- Line pass-through connector: XLR

Videos (2)

Brand

LD Systems is a brand known for its professional audio equipment, including loudspeakers, PA systems, microphones, and related accessories. Founded in 2002, LD Systems is headquartered in Neu-Anspach, Germany. They offer a wide range of products for live sound reinforcement and studio applications, catering to musicians, event organizers, and sound engineers. LD Systems is recognized for its commitment to delivering high-quality audio solutions for various audio-related needs.
