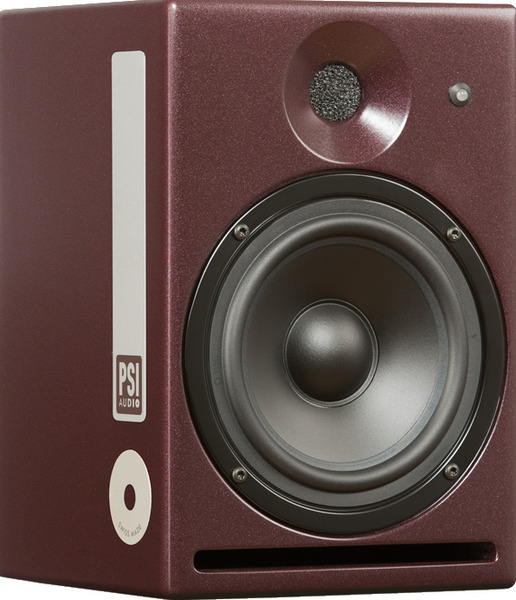

PSI Audio A14-M Studio (red)
CHF 1165.00
CHF 1239.00
2 units in stock
Ships immediately to your country (CH)
Free delivery in Switzerland
| Product # | 123757 |
| Brand | PSI Audio |
| Series | PSI Audio Active M |
| Category | Nearfield Monitor |
| Brand Category | PSI Audio - Nearfields |
Accessories
Recommended accessories
The A14-M full range speaker is the smallest member of the PSI Audio A-Series.
Housed in an extremely compact cabinet the A14-M is designed to implement highest possible SPL and
broad bandwidth.
The A14-M is ideal for studio application where the ultimate in precision and portability is required.
Packed into its compact dimensions, is all the technology of its larger brothers.
The powerful bi-amplified output features the unique "AOI" output stages, while the active crossover, with
integrated "CPR", delivers unprecedented impulse behavior - with excellent stereo imaging.
The crossover is also optimized for maximum phase coherence, projecting a wide horizontal and vertical ideal
listening area.
Designed to work in harmony with the full range of A series monitors the A14-M also makes ideal rear speakers in
a surround sound setup, or can be developed in to a more powerful system by adding the A225-M sub - thus
protecting your investment.
- - Bi-Amplified Power Output: 70W (woofer) + 30W (tweeter) RMS for precise, high-performance sound.
- - Max SPL: Up to 112 dB (pair) with exceptional clarity and headroom.
- - Ultra-Compact Cabinet: Just 163 x 243 x 170 mm – ideal for portable or space-restricted studios.
- - Flat Frequency Response: 56 Hz – 22 kHz (-6dB) with ±2.5 dB accuracy from 65 Hz to 18 kHz.
- - Advanced Phase Response: ±45° phase tolerance (260 Hz – 16 kHz) for superior coherence and imaging.
- - Wide Dispersion: 100° x 100° (H x V) ensures a generous sweet spot and immersive stereo field.
- - Custom Tech: Features PSI’s proprietary AOI (Adaptive Output Impedance) amps and CPR (Compensated Phase Response) crossover technology.
- - Crossover Frequency: 3.5 kHz optimized for transparency and detail across the spectrum.
- 🪵 Driver Design:
- Woofer: 147 mm external / 104 mm diaphragm
- Tweeter: 70 mm external / 20 mm diaphragm
- Expandable Setup: Pairs perfectly with the A225-M subwoofer or other A-Series monitors – ideal for surround or full-range monitoring.
- Power RMS: 70 + 30W
- Program Power: 100W
- Continuous Max SPL, 1m: 101 dB (single)
- Program Max SPL, 1m: 112 dB (pair)
- Response at -6dB: 56-22000 Hz
- Tolerances: ±2.5 dB (65Hz-18kHz)
- Phase tolerances: ±45° (260Hz-16kHz)
- Dispersion (P.N. 4 - 16 kHz) at -6 dB: 100° x 100° (H x V)
- Crossover frequency: 3.5 kHz
- Woofer's dim. Ext. / Diaphragm: Ø 147mm / Ø 104mm
- Tweeter's dim. Ext. / Diaphragm: Ø 70mm / Ø 20mm
- Dimensions cabinet W x H x D mm: 163 x 243 x 170
- Program Power: 100W
- Continuous Max SPL, 1m: 101 dB (single)
- Program Max SPL, 1m: 112 dB (pair)
- Response at -6dB: 56-22000 Hz
- Tolerances: ±2.5 dB (65Hz-18kHz)
- Phase tolerances: ±45° (260Hz-16kHz)
- Dispersion (P.N. 4 - 16 kHz) at -6 dB: 100° x 100° (H x V)
- Crossover frequency: 3.5 kHz
- Woofer's dim. Ext. / Diaphragm: Ø 147mm / Ø 104mm
- Tweeter's dim. Ext. / Diaphragm: Ø 70mm / Ø 20mm
- Dimensions cabinet W x H x D mm: 163 x 243 x 170
| Key attributes | |
|---|---|
| Speaker Size | 5"-7" |
| Max. Frequency Range | 23000Hz |
| Min. Frequency Range | 56Hz |
| Power | 50W - 499W |
| Nearfield Monitor attributes | |
|---|---|
| Power Configuration | Bi-Amped |
| Configuration | Monitor |
| Type | Active |
| Output Types | XLR |
| Input Types | XLR |
| Max SPL | <114dB |
| Product Details | |
|---|---|
| Product Number | 123757 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Nearfield Monitor | |
| Date | January 2021 |
| Product Quantity | |
|---|---|
| Unit | 1 piece(s) |
| Dimension | |
|---|---|
| Weight | 5.5kg |
