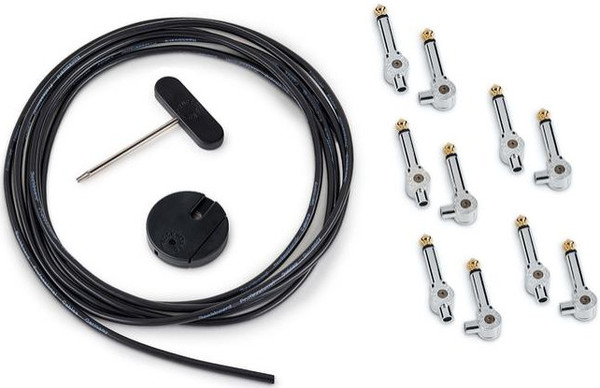

RockBoard PatchWorks Solderless Patch Cable Set GD (3m + 10 plugs - gold)
Pedalboard Accessory
CHF 38.00
MSRP: CHF 40.45
2 units in stock
Expected delivery: Tue, 5.5. and Wed, 6.5. to your country (CH)
Shipping cost: CHF 8.00
Free delivery in Switzerland from CHF 50.-
| Product # | 202967 |
| Brand | RockBoard |
| Series | RockBoard PatchWorks |
| Category | Pedalboard Accessory |
| Brand Category | RockBoard - Accessories |
Accessories
Recommended accessories
Variants
They will always offer the plug orientation you need, since you can easily flip them from straight to angled or vice-versa. The patented easy-to-use design has a two-piece plug features a slim and compact design for saving pedalboard real estate that can be changed from straight to angled simply by turning one part by 90 degrees. Using professional-grade, high-quality cable and connectors with gold-plated tips, the RockBoard PatchWorks give you everything you desire for your hi-fi pedalboard. Build your own patch cables, in exactly the length you need them, cutting down on excess cable path and curbing signal loss.
- - solderless patch cable system
- - set for assembly of 5 patch cables
- - unique 2-directional 2-piece connector design (patent pending)
- - can be assembled as either straight or angled plugs
- - plug'n play design - no cable stripping required
- - includes 10 plugs and 3 m cables
- - plug dimensions straight (L x W x H) 20 x 12 x 10 mm / 13/16" x 1/2" x 3/8"
- - plug dimensions angled (L x W x H) 15 x 13 x 10 mm / 9/16" x 1/2" x 3/8"
- - gold plated tips
- - gold finish
- - low capacitance cable for maximum signal transparency
- - flexible oxygen free copper conductor 7 / 0.16 mm
- - stiff PE insulation
- - braided tinned copper shielding 6 x 16 / 0.12 mm
- - black outer PVC jacket
- - capacitance cond./shield less than 8 pF/decimeter
- - conductor resistance of 4 mOhm/decimeter
- - operating temperature -15°C to +70°C / 5° F to 158° F
- - diameter 4 mm / 3/16"
- - incl. TX8 wrench, cable cutter and 10 spare screws
| Product Warranty | |
|---|---|
| Details | Please note that you can register your product at the following website for an Extended 4-Year Warranty:
https://shop.warwick.de/warranty-registration/ |
| Brand warranty | Please note that the 4-Year Extended Warranty only applies to products with a Serial Number, products without a Serial Number cannot be registered for the 4-Year Extended Warranty. |
| Product Details | |
|---|---|
| Product Number | 202967 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Pedalboard Accessory | |
| Date | August 2018 |
| Product Quantity | |
|---|---|
| Unit | 1 piece(s) |
| Dimension | |
|---|---|
| Weight | 0.27kg |
| Gross Weight | 0.3kg |
(4)
Never used these types of cable before so was a little skeptical about their reliability and ease of use, but I was really pleasantly surprised. The amount of cable supplied is really good, I have spare left over even while trying to cover quite a large board, I ordered 4 packs and had one untouched cable in the last pack by the end. Assembly: The screws can be a little bit tricky to get into place when using the angled option, but it wasn't a major hassle. Using a cable tester, I only had to re-work 2 joints out of 40 that I had made. Pretty good success rate, but it's essential to have some kind of cable tester otherwise you will not know where the problem it. Sound: No breaks in signal, no noticeable loss of tone. Size: Really small, they were essential to getting all my 8 effects + a Boss ES8 into a tight space. Angular and straight opens were great to have to put the puzzle together. Cable: It's a bit stiffer than I though, but also thinner, which saves quite some space in the end. The stiffness, in the end was no issue, I was just expecting something else for some reason. I would buy these again without hesitation. Price and opens are pretty good.
I highly recommend it. It doesn't take up much space, and you have a lot of flexibility in how you arrange the devices on your pedalboard. You might feel like the connection is lost when you angle the board, but that's not the case at all. Simply set it up straight and hold the cable near the end so that it doesn't bend when you press it back in, and then plug it into the chrome part. It doesn't need to click. Then, angle the board. It can be a bit tricky for someone with less strength to tighten the small screws afterward. However, it's also easy for people without any assembly knowledge. This is the best way to set up a pedalboard. Excellent value for money. I highly recommend it to everyone.
