Rupert Neve Designs Newton Channel / 5034
| Product # | 246283 |
| Brand | Rupert Neve Designs |
| Category | Single Channel Microphone Pre-amp |

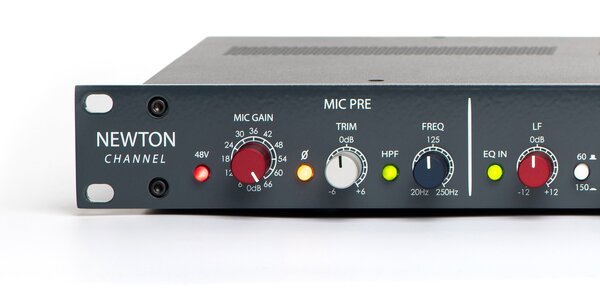

The Input Stage and Mic Preamp
The Newton’s microphone preamplifier contains all the tone and musicality expected from a Rupert Neve Designs piece. This preamp makes it incredibly easy to quickly dial in a tight, clean and detailed sound; and with a robust 72dB of gain including 6dB of fine trim control, the Newton is ideally suited for a wide variety of sources. While the input stage is tailored to be an ideal match for standard microphone source impedance, it is equally happy being driven by line levels – so a pair of Newtons can also be put to use as a high-end mixing tool for any studio. The Newton also includes our distinctive variable high-pass filter with a comprehensive frequency range adjustment and independent bypass switch, allowing the engineer to quickly eliminate unwanted noise, rumble or other low frequency build-up in the source signal.

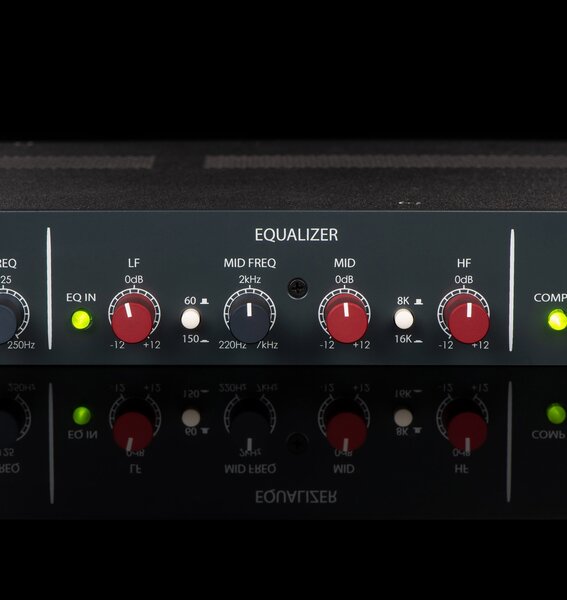

The Equalizer
The EQ section in the Newton is optimized for speed & flexibility with a simplified set of controls. The low and high frequency shelf bands are controllable with accurate 31-detent potentiometers that provide up to 12dB of gain boost/cut, providing the ability to dial in either subtle or extreme settings as desired. The parametric mid-band of the Newton EQ section includes another 31-detent potentiometer and a wide range of mid frequencies to boost or cut, switchable from 220Hz to 7kHz. This makes the MF band particularly flexible, allowing for taming low-mid muddiness, boosting mid frequency presence, or removing any harshness in the upper midrange. The carefully-chosen fixed Q setting maintains a healthy balance of musicality and precision – just wide enough for brush-stroke equalization without adversely affecting neighboring frequencies. As with every section of the Newton Channel, the EQ has an independent bypass button for double- checking settings every step of the way.

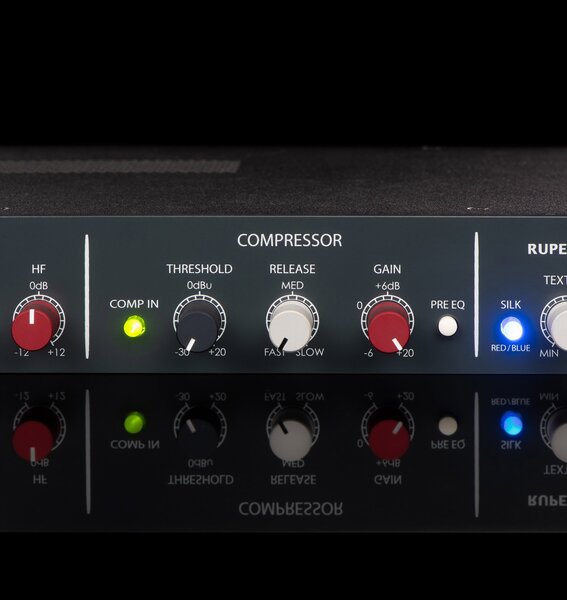

The Compressor
The Newton Channel also contains the latest iteration of Rupert Neve Designs’ ultra-smooth VCA compressor, with +20dB of make-up gain and ample control for any amount of needed compression while maintaining an effortless sound. Also included is a helpful ‘pre EQ/post EQ’ push button to place the compressor either before or after the EQ section, plus an independent bypass button.
- - Mic Gain - 12-position rotary switch that controls the microphone preamp gain in 6dB steps. For line level input signals, set the Mic Gain to the “0dB” position.
- - 48V - Push-button switch that illuminates RED when +48V Phantom Power is engaged.
- - Ø (Polarity) - Push-button switch that illuminates AMBER when engaged and inverts the phase of the preamp signal.
- - TRIM - 31-detent potentiometer that allows the user to adjust the preamp gain within a range of +/- 6dB.
- - HPF - Push-button switch that illuminates GREEN when the high pass filter is engaged.
- - FREQ - 31-detent potentiometer that allows the user to adjust the cutoff frequency of the Sallen-Key high pass filter within a range of 20Hz to 250Hz.
- - EQ IN - Push-button switch that illuminates GREEN when the EQ section is engaged.
- - LF - 31-detent potentiometer that controls the amount of boost or cut for the low frequency shelf within a range of +/- 12dB.
- - 60/150 - Push-button switch that selects between the two available low frequency shelf frequencies: 60Hz (OUT) and 150Hz (IN).
- - MID FREQ - 31-detent potentiometer that controls the frequency of the midband peaking EQ within a range of 220Hz to 7kHz.
- - MID - 31-detent potentiometer that controls the amount of boost or cut for the MID FREQ peaking EQ within a range of +/- 12dB.
- - 8K/16K - Push-button switch that selects between the two available high frequency shelf frequencies: 8kHz (OUT) and 16kHz (IN).
- - HF - 31-detent potentiometer that controls the amount of boost or cut for the high frequency shelf within a range of +/- 12dB.
- - COMP IN - Push-button switch that illuminates GREEN when the compressor section is engaged.
- - THRESHOLD - 31-detent potentiometer that controls the compressor threshold range from +20dBu to -30dBu. When the input signal rises above the set threshold level, compression begins with a soft-knee at a 2:1 ratio.
- - RELEASE - 31-detent potentiometer that controls the compressor release time. The overall timing range available is 50mS (FAST) to 500mS (SLOW). Note: Attack time is fixed at 20mS.
- - GAIN - 31-detent potentiometer that controls the compressor make-up gain within a range of -6dB to +20dB.
- - PRE EQ - Push-button switch that routes the compressor section ahead of the EQ section when engaged.
- - SILK - Illuminated push-button switch that toggles through the three available SILK modes: OFF, RED, and BLUE.
- - TEXTURE - 31-detent potentiometer that controls the amount of SILK harmonics added within the transformer output stage when SILK is engaged.
- - GR and OUT Metering - 8-segment LED meters that indicate compressor gain reduction (dB) and output level (dBu).
- - POWER - LED that illuminates GREEN when the Newton Channel is powered ON.
- - POWER - IEC AC power inlet with integrated power switch. 100-240VAC at 50/60Hz. 35 Watts maximum AC power consumption.
- - GROUND LIFT - Slide switch that lifts XLR Pin 1 from chassis ground on the MAIN OUT as well as the -6dB OUT to help isolate from ground interference.
- - 6dB OUT - Balanced XLR output utilizing a lower level, secondary output on the custom Rupert Neve Designs transformer.
- - MAIN OUT - Balanced XLR output utilizing a custom Rupert Neve Designs transformer.
- - LINK - 1/4” TRS jack that allows two Newton Channel compressors to be linked together for stereo compressor operation. *Only intended for use with other Newton Channel LINK jacks.
- - INPUT - Balanced XLR-1/4” TRS combo jack input that can be used for MIC or LINE level signals.
- Input Impedance: 8900 Ohms
Input to Line Output (No Features Engaged, Un-weighted)
- Maximum Input Level: +23.6dBu
Noise (Un-weighted):
- Line Out (Unity Gain): -102dBu
- -6dB Line Out (Unity Gain): -107dBu
- Line Out (+30dB Gain): -95dBu
- Equivalent Input Noise @ +30dB Gain (EIN): -125dBu
- Maximum Output Level @ 1kHz: +23.6dBu
Frequency Response:
<10Hz to 30kHz: +/- 0.1dB
<5Hz to 70kHz: +/- 0.25dB
<5Hz to 140kHz: -3dB
THD+N, BW (<10Hz to 22kHz):
0dBu at 1 kHz: 0.0013%
+20dBu at 1 kHz: 0.0007%
Input to Line Output (Equalizer Engaged):
Noise (BW <10Hz to 22kHz): -90dBu
THD+N @ 0dBu (EQ Flat): 0.003%
Input to Line Output (Compressor Engaged):
Noise @ 0dB Make-Up Gain (BW <10Hz to 22kHz): -91dBu
THD+N @ 0dBu (EQ Flat): 0.005%
Compressor Section:
Attack Time: 20mS (fixed)
Release Time: Variable; 50mS (Fast) to 500mS (Slow)
PRODUCT DIMENSIONS (W x D x H): 19” (48.3 cm) x 8.125” (20.63 cm) x 1.75” (4.5 cm)
SHIPPING DIMENSIONS (L x W x H): 24” (61 cm) x 13” (33 cm) x 4” (10.2 cm)
SHIPPING WEIGHT: 9 lbs. (4.1 kg)
