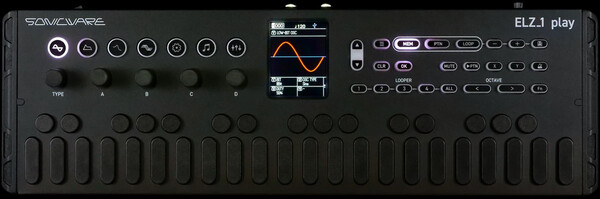

Sonicware ELZ_1 play (Black)
CHF 663.00
CHF 690.35
Will be ordered for you as quick as possible
Sign in to add product notifications
Free delivery (CH)
| Product # | 250836 |
| Brand | Sonicware |
| Category | Synthesizer |
Portable Synthesizer with Looper
17 Distinctive Synth Engines—Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.
33 Effects to Elevate Your Sound—From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 20 types and 1 master effect from 13 types, including Shimmer Reverb.
Flexible 4-Track Looper—Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.
Instrument RedefinedーVelocity-enabled keyboard, Built-in stereo speakers and more
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.
- AC adapter
- - 17 Distinctive Synth Engines—Unlike Anything You've Ever Heard
- - 33 Effects to Elevate Your Sound—From Soothing to Striking
- - Flexible 4-Track Looper—Layer, Loop, and Remix with Ease
- - Instrument RedefinedーVelocity-enabled keyboard, Built-in stereo speakers and more
Synthesizer:
17 types (Indicates Maximum Polyphony):
- LOW-BIT OSC (15 voices)
- 2-bit ~ 8-bit variable low-bit oscillator
- Sine, square, triangle and sawtooth waves
- STANDARD OSC (15 voices)
- 32-bit floating-point processing high resolution oscillator
- Sine, square, triangle and sawtooth waves
- CUSTOM OSC (15 voices)
- Choose 2 waveforms / period of cycles
- DNA EXPLORER (10 voices)
- Extract and generate waveform DNA from audio*
- SiGRINDER (6 voices)
- Granular synthesizer engine*
- MASKED NOISE (20 voices)
- Noise oscillator
- SAND FLUTE (10 voices)
- Extract and generate tone from noise
- 8BIT WAVE MEMORY SYNTH (20 voices)
- Editing your own waveform
- 8BIT WAVE MEMORY SYNTH (MORPH) (20 voices)
- Morphing 3 waveforms
- 8BIT WAVE MEMORY SYNTH (FM MODE) (15 voices)
- 2 operators, 8bit FM mode
- 8BIT WAVEMEM SYNTH (WARP) (15 voices)
- Generates an intermediate waveform by crossfading two waveforms
- 8BIT WAVEMEM SYNTH (ADSAR) (20 voices)
- Waveforms change according to envelope
- 8BIT WAVEMEM SYNTH (TIME) (20 voices)
- 3 waveforms change in the orders
- FM SYNTH (6 voices)
- 4 operators with 31 algorithms, 32-bit floating point processing
- ZTRINGS (6 voices)
- Physical Modelling Strings engine
- SUPER OSC (6 voices)
- Super synth engine with 5 detunable sub-oscillators
- STK DRUMMER (15 voices)
- Drum machine engine equipped with 5 types of drum kits
- SmplTrek .stk file compatible
- Number of Sound memories: 512 (128 x 4 banks)
- 3 samplings of up to 5 seconds can be saved (16bit-48kHz WAV file import/export supported)
Envelopes:
- ADSR
- ADSR (w/curve)
- ADS-RA-R
- ADS-RA-R (w/curve)
Filters:
- LPF-6, LPF-12
- HPF-6, HPF-12
- BPF
- Peaking EQ
- LO EQ
- HI EQ
- NOTCH
Voice Modes:
- Poly, Mono, Legato
- Unison
Arpeggiators:
- Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order
Effects:
- 33 types
- Insert Effects
- Overdrive, Distortion, Fuzz, Crusher
- Chorus, Stereo Chorus, Flanger, Phaser, Tremolo, Vibrato
- RingModulator, AutoWah
- Delay, Reverse Delay, PingPong Delay, AutoPan
- Tape Echo, Reverb
- 4-Pole Filter, Trim Filter
- Master Effects
- Hall, Room, Plate, Arena, Tunnel, Infinity, Custom Reverb
- Ambient Room, Ambient Hall, Ambient Infinity
- Vinyl Simulator, Cassette Tape Simulator, Crusher
Sequencer:
- Up to 128 steps per pattern (Single track)
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Step and real-time recording (Supports non-quantized recording with MicroTiming REC)
- Enter longer notes (Tied notes)
- Metronome function
Looper:
- 4-track looper (Stereo recording)
- One-touch recording/overdubbing
- Recording from the built-in sound source, LINE input, and USB audio input
- FREE function automatically sets the number of bars according to the recording time
- One-shot playback
- UNDO/REDO function
- MIDI: Notes, program changes, control changes, clock input/output
- Keyboard: 37 keys (with a velocity sensitivity)
- Knobs: 5 physical control encoders
Audio out:
- Stereo line out (1/4 phone jack x 2)
- Headphone output (stereo 3.5mm mini jack)
- Compatible with Teenage Engineering Pocket Operator Series SYNC OUT
- Bullt in speakers (stereo)
Audio in:
- AUX IN (stereo 3.5mm mini jack)
- Compatible with Teenage Engineering Pocket Operator Series SYNC IN
USB:
- Type-C
- USB Audio: USB 2.0, 48kHz-16bit, input: 2 ch, output: 2 ch
- USB MIDI
- Mass storage class: USB2.0
- For iPhone, an Apple Lightning to USB camera adapter is required separately
External Storage Card:
- Standard size
- Looper recording data storage
- Firmware updates
- Used for backing up other data
Connectors:
- MIDI IN connector (5-Pin DIN type)
- MIDI OUT connector (5-Pin DIN type)
- SYNC IN jack (monaural 3.5mm mini jack)
- SYNC OUT jack (monaural 3.5mm mini jack)
- Compatible with Teenage Engineering Pocket Operator Series SYNC OUT
Display:
- 1.5 inch LCD display
Power Supply:
- DC9V output AC adapter (1.7A, Inner Diameter: 1.7mm, Outer Diameter: 4.75mm, Polarity: Center +）
- Ni-MH AA SIZE Rechargeable Battery or Alkaline AA SIZE Dry Battery x 6
- (Alkaline dry batteries life: approx. 4.5 hours)
- Batteries sold separately
- Dimensions: 399mm (W) x 131mm (D) x 50mm (H) / 15.71 in (W) x 5.16 in (D) x 1.97 in (H)
- Weight: 1.12kg / 2.47 lbs.
17 types (Indicates Maximum Polyphony):
- LOW-BIT OSC (15 voices)
- 2-bit ~ 8-bit variable low-bit oscillator
- Sine, square, triangle and sawtooth waves
- STANDARD OSC (15 voices)
- 32-bit floating-point processing high resolution oscillator
- Sine, square, triangle and sawtooth waves
- CUSTOM OSC (15 voices)
- Choose 2 waveforms / period of cycles
- DNA EXPLORER (10 voices)
- Extract and generate waveform DNA from audio*
- SiGRINDER (6 voices)
- Granular synthesizer engine*
- MASKED NOISE (20 voices)
- Noise oscillator
- SAND FLUTE (10 voices)
- Extract and generate tone from noise
- 8BIT WAVE MEMORY SYNTH (20 voices)
- Editing your own waveform
- 8BIT WAVE MEMORY SYNTH (MORPH) (20 voices)
- Morphing 3 waveforms
- 8BIT WAVE MEMORY SYNTH (FM MODE) (15 voices)
- 2 operators, 8bit FM mode
- 8BIT WAVEMEM SYNTH (WARP) (15 voices)
- Generates an intermediate waveform by crossfading two waveforms
- 8BIT WAVEMEM SYNTH (ADSAR) (20 voices)
- Waveforms change according to envelope
- 8BIT WAVEMEM SYNTH (TIME) (20 voices)
- 3 waveforms change in the orders
- FM SYNTH (6 voices)
- 4 operators with 31 algorithms, 32-bit floating point processing
- ZTRINGS (6 voices)
- Physical Modelling Strings engine
- SUPER OSC (6 voices)
- Super synth engine with 5 detunable sub-oscillators
- STK DRUMMER (15 voices)
- Drum machine engine equipped with 5 types of drum kits
- SmplTrek .stk file compatible
- Number of Sound memories: 512 (128 x 4 banks)
- 3 samplings of up to 5 seconds can be saved (16bit-48kHz WAV file import/export supported)
Envelopes:
- ADSR
- ADSR (w/curve)
- ADS-RA-R
- ADS-RA-R (w/curve)
Filters:
- LPF-6, LPF-12
- HPF-6, HPF-12
- BPF
- Peaking EQ
- LO EQ
- HI EQ
- NOTCH
Voice Modes:
- Poly, Mono, Legato
- Unison
Arpeggiators:
- Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order
Effects:
- 33 types
- Insert Effects
- Overdrive, Distortion, Fuzz, Crusher
- Chorus, Stereo Chorus, Flanger, Phaser, Tremolo, Vibrato
- RingModulator, AutoWah
- Delay, Reverse Delay, PingPong Delay, AutoPan
- Tape Echo, Reverb
- 4-Pole Filter, Trim Filter
- Master Effects
- Hall, Room, Plate, Arena, Tunnel, Infinity, Custom Reverb
- Ambient Room, Ambient Hall, Ambient Infinity
- Vinyl Simulator, Cassette Tape Simulator, Crusher
Sequencer:
- Up to 128 steps per pattern (Single track)
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Step and real-time recording (Supports non-quantized recording with MicroTiming REC)
- Enter longer notes (Tied notes)
- Metronome function
Looper:
- 4-track looper (Stereo recording)
- One-touch recording/overdubbing
- Recording from the built-in sound source, LINE input, and USB audio input
- FREE function automatically sets the number of bars according to the recording time
- One-shot playback
- UNDO/REDO function
- MIDI: Notes, program changes, control changes, clock input/output
- Keyboard: 37 keys (with a velocity sensitivity)
- Knobs: 5 physical control encoders
Audio out:
- Stereo line out (1/4 phone jack x 2)
- Headphone output (stereo 3.5mm mini jack)
- Compatible with Teenage Engineering Pocket Operator Series SYNC OUT
- Bullt in speakers (stereo)
Audio in:
- AUX IN (stereo 3.5mm mini jack)
- Compatible with Teenage Engineering Pocket Operator Series SYNC IN
USB:
- Type-C
- USB Audio: USB 2.0, 48kHz-16bit, input: 2 ch, output: 2 ch
- USB MIDI
- Mass storage class: USB2.0
- For iPhone, an Apple Lightning to USB camera adapter is required separately
External Storage Card:
- Standard size
- Looper recording data storage
- Firmware updates
- Used for backing up other data
Connectors:
- MIDI IN connector (5-Pin DIN type)
- MIDI OUT connector (5-Pin DIN type)
- SYNC IN jack (monaural 3.5mm mini jack)
- SYNC OUT jack (monaural 3.5mm mini jack)
- Compatible with Teenage Engineering Pocket Operator Series SYNC OUT
Display:
- 1.5 inch LCD display
Power Supply:
- DC9V output AC adapter (1.7A, Inner Diameter: 1.7mm, Outer Diameter: 4.75mm, Polarity: Center +）
- Ni-MH AA SIZE Rechargeable Battery or Alkaline AA SIZE Dry Battery x 6
- (Alkaline dry batteries life: approx. 4.5 hours)
- Batteries sold separately
- Dimensions: 399mm (W) x 131mm (D) x 50mm (H) / 15.71 in (W) x 5.16 in (D) x 1.97 in (H)
- Weight: 1.12kg / 2.47 lbs.
| Key attributes | |
|---|---|
| Number of Keys | 37 |
| Colour | Black |
| Keyboard Type | Touch Response |
| Speakers | No |
| Model | Synthesizer |
| Synthesizer attributes | |
|---|---|
| Battery Operated | Yes |
| Pedal | Not Included |
| MIDI Interface | MIDI |
| Stand | Not Included |
| Built-in Tones | Yes |
| Cover | No |
| Display | Yes |
| Unit | 1 piece(s) |
| Product Details | |
|---|---|
| Product Number | 250836 |
| Brand | |
| Category | |
| Relevancy rank in Category Synthesizer | |
| Date | April 2025 |
| Dimension | |
|---|---|
| Box Depth | 590mm |
| Box Height | 105mm |
| Gross Weight | 2.4kg |
