Yamaha MODX 7+

(2)

MODX Softcase SC-MODX8 (for model 8)

CHF 191.00

Description

The most important element of any instrument is the sound. MODX+ makes all elements of your music sound amazing. MODX+ uses the same technology that powers the flagship MONTAGE: 128 notes of AWM2 (Advanced Wave Memory 2) sample and synthesis polyphony for stunning emulative acoustic instruments, synth sounds and drums. MODX+ also features 128 notes of FM-X (Frequency Modulation) polyphony - a unique, expressive, highly-programmable synthesis technology for dynamic, electro-modern music creation.

AWM2

The AWM2 engine is exclusive to Yamaha synthesizers and offers much more than just sample playback. Each of the 16 AWM2 Parts feature eight programmable synthesizers with 18 different filter types, amplitude, pitch and filter envelope generators, nine LFOs, 3-band EQ and a dedicated dual insert effect with Virtual Circuitry Modeling.

FM-X

Everything you love about the iconic DX7 meets the latest Yamaha innovations. FM-X produces classic ‘80s or cutting-edge EDM synthesizer sound with incredible dynamic range, power and fidelity. MODX+ goes well beyond the capabilities of the original DX7 with an 8-operator FM architecture, 128-note polyphony, many filter types and more. All with Motion Control for ever-evolving and changing textures to create sounds no one has ever heard before.

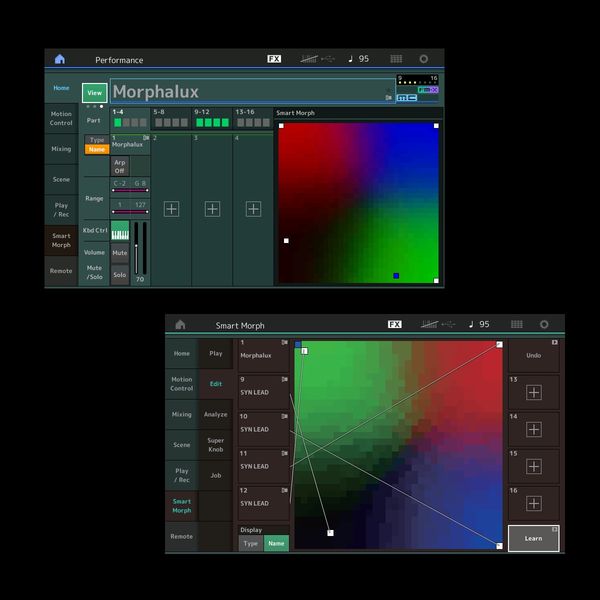

SMART MORPH

Smart Morph enables morphing between FM-X sounds. Its sophisticated A.I. algorithm creates an interactive morphing map from up to eight FM-X sounds. You can “play” this map from the touchscreen or use the Super Knob to move between two points. The result is a staggering number of interesting and interactive new sounds.

256-NOTE TOTAL POLYPHONY

MODX+ features 128-note stereo AWM2 polyphony and 128-notes of FM-X polyphony. Due to the unique architecture of MODX+ and MONTAGE, this polyphony is always available without latency or compromising other features.

EFFECTS

MODX+ is packed with DSP innovation, power and sound quality to bring you everything from high-definition reverbs to detailed Virtual Circuit Modeling (VCM) effects. Get EDM sound with effects like Beat Repeat, Vinyl Break or Bit Crusher. Use the Spiralizer effect to create the auditory illusion of tone continuously rising or falling in pitch.

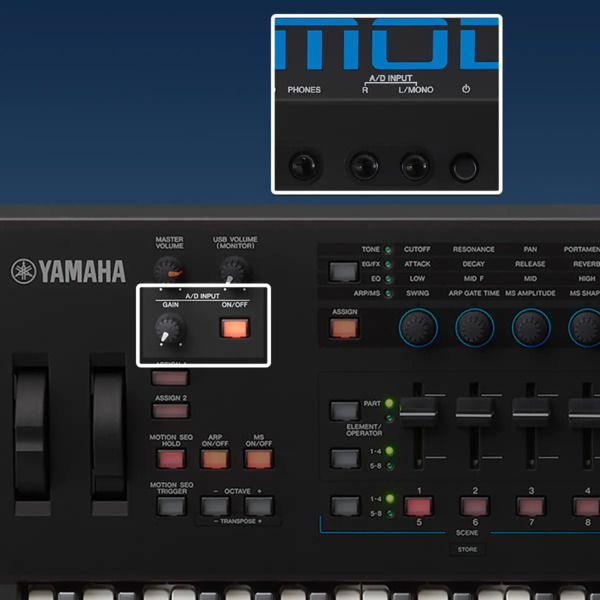

A/D Input

A stereo A/D input allows you to bring external sources like analog synthesizers, vocals and other instruments into the MODX+ motion control system. Which means MODX+ control goes well beyond simple onboard effect processing. Control individual parameters with the physical controls or have MODX+ provide “invisible hands” using Motion Control. Add the Vocoder, Envelope Follower and Auto Beat Sync and it’s like the A/D input on MODX+ becomes an instrument unto itself.

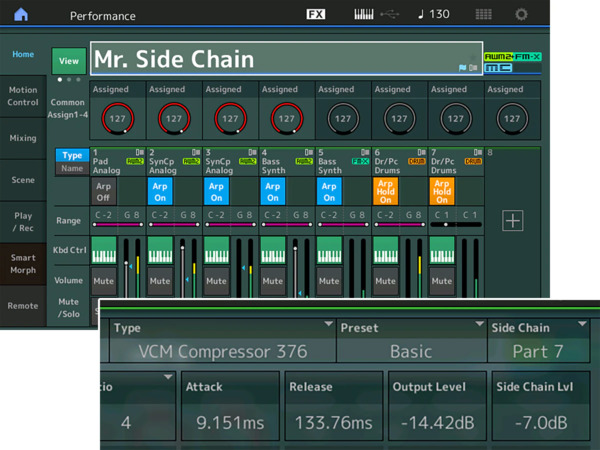

Sidechain

Sidechain is a popular effect in modern dance music where a pad or other sustain part is “keyed” to the kick drum. When the kick drum plays, it ducks down the sustained part creating a “pumping” rhythmic effect.

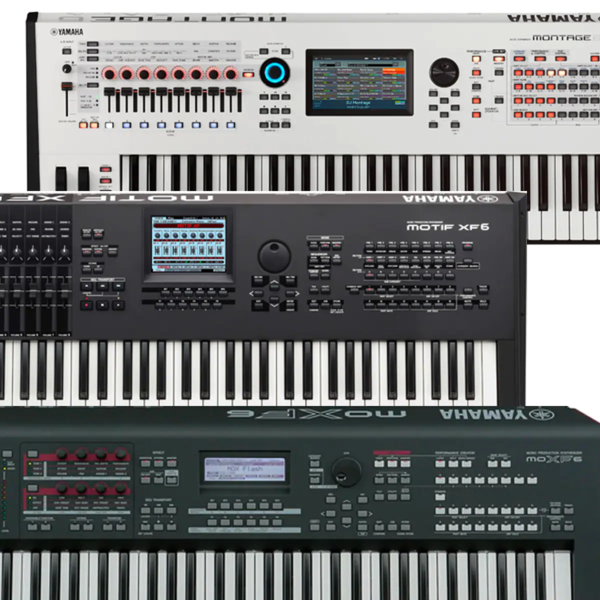

COMPATIBILITY

Out of the box, MODX+ gives you access to sounds made by our world- class sound designers and artists, including sounds from the MOTIF series as well as the legendary DX7. You'll have a massive sound library at your fingertips.

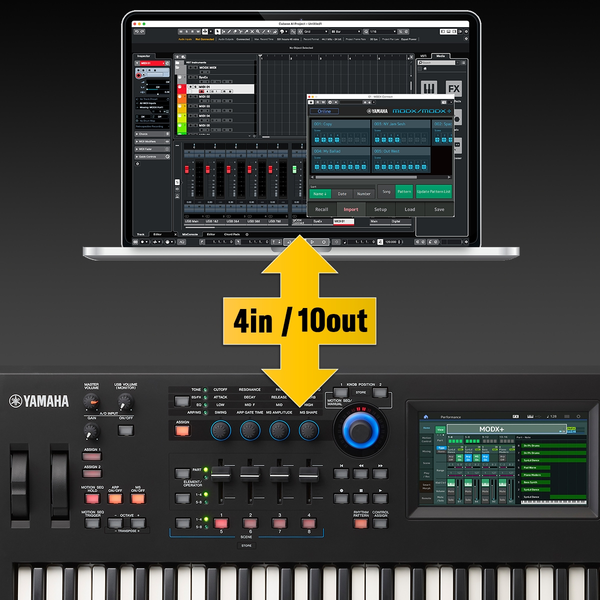

MULTI-CHANNEL USB AUDIO INTERFACE

As expected for modern computer-based music production, MODX+ features a professional 4-in/10-out, multi-channel USB audio interface. Coupled with two A/D inputs, MODX+ is a perfect centerpiece for any professional recording studio or live computer rig. A single-cable connection replaces the need for an external audio interface.

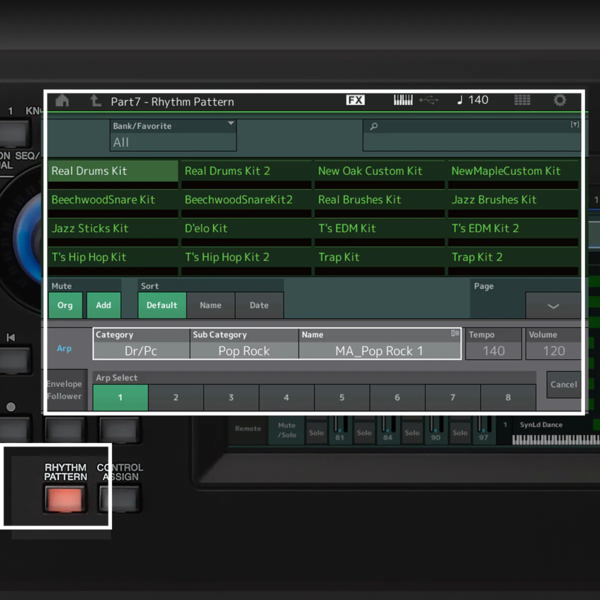

RHYTHM PATTERN

Drummer running late again? MODX+ Rhythm Pattern is like a built-in drum machine with easy access to thousands of patterns from a front panel button. Quickly add a rhythm when songwriting, practicing or waiting for the drummer to set up, or show up.

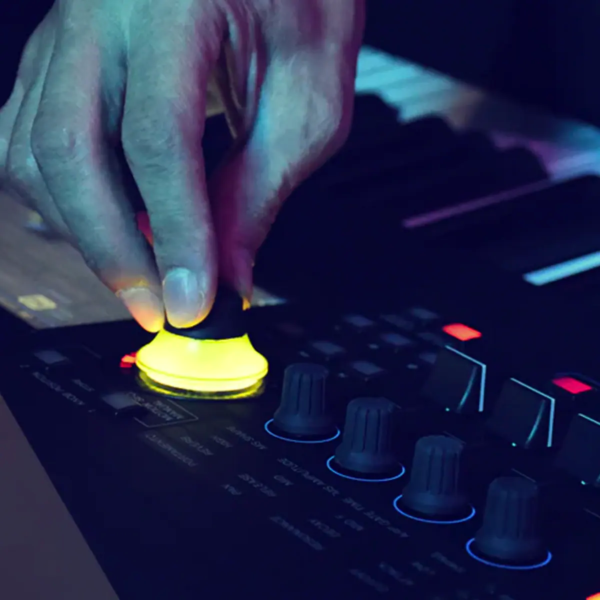

SUPER KNOB

The Super Knob is to shaping sound as a conductor is to an orchestra. It directs individual dynamic elements into a single musical expression. Like a conductor, the Super Knob can tell one player to turn up while another turns down. You can change the shape of notes from long to short, bright to dark or move a player from being right next to you to the back of the concert hall.

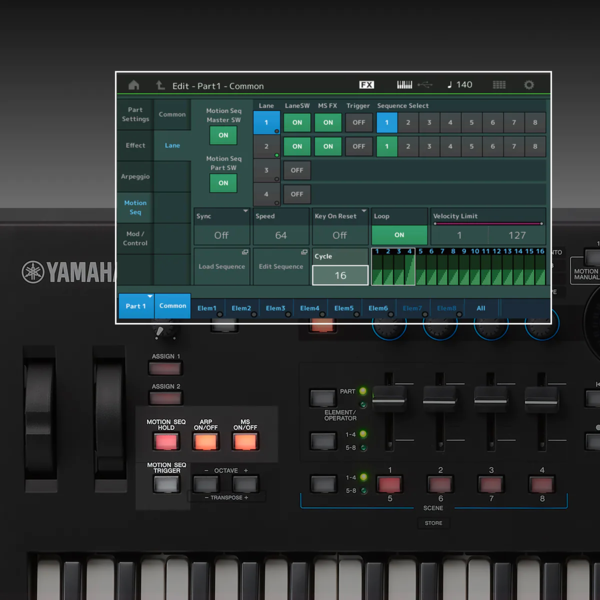

MOTION SEQUENCES

Motion Sequences are tempo-synchronized, completely customizable control sequences that can be assigned to virtually any synthesizer parameter and provide incredible new ways of creating sound.

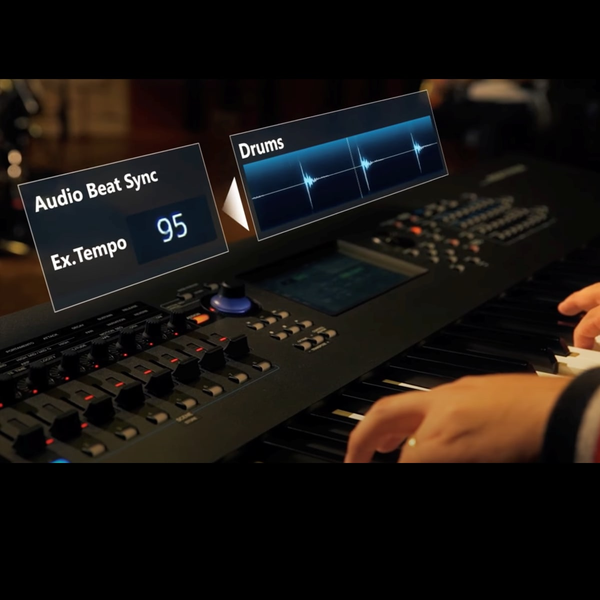

Audio Beat Sync

Audio Beat Sync (ABS) detects the beat of an external device like an electronic drum kit, drum machine or audio player plugged into the A/D input and synchronizes the MODX+ Arpeggiator, Motion Sequencer or Songs to the tempo of the external input.

Properties

- Number of Keys: 76
- Type: Semi-weighted Keyboard
- Initial Touch: Yes
- Aftertouch: No
- Tone Generator: Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms
- Maximum Polyphony: AWM2: 128 (max.; stereo/mono waveforms) FM-X: 128 (max.)
- Multi Timbral Capacity: 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part
- Wave: Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.75 GB
- Performance: 2,227
- Filter: 18 types
- Effects: Reverb x 12 types, Variation x 88 types, Insertion (A, B) x 88 types*2, Master Effect x 26 types *2 A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)
- Controllers: Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial
- Display: 7" TFT Color Wide VGA LCD touch screen
- Connectors: [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)
- Power Consumption: 16 W (when using PA-150B AC adaptor)
- Live Sets: Preset: 256 and more, User: 2,048
- Note Capacity: Approx. 130,000 notes
- Storage Size: Approx. 520,000 notes (for Patterns) and approx. 520,000 notes (for Songs)
- Note Resolution: 480 ppq (parts per quarter note)
- Tempo (BPM): 5 - 300
- Songs: 128 songs
- Tracks: 16 Sequence tracks
- Recording type: Real time replace, Real time overdub, Real time punch in/out
- Patterns: 128 patterns
- Arpeggio: Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types
- Sequence formats: MODX original format, SMF formats 0, 1

Attributes

Key attributes
Number of Keys	76
Colour	Black
Keyboard Type	Semi-weighted Keys
Speakers	No
Model	Synthesizer

Product Dimensions
Depth	331mm
Width	1144mm
Height	134mm

Synthesizer attributes
Battery Operated	No
Pedal	Not Included
MIDI Interface	USB to Host
Stand	Not Included
Built-in Tones	Yes
Cover	No
Display	Yes

Product Details
Product Number	239723
Brand	Yamaha Yamaha sells their products throughout Europe from its European central warehouse. Products that we do not have in stock, but are available from stock at Yamaha Europe, are usually very reliably available within one week. If a product in the European warehouse is not available from stock, long delivery times are also possible. If in doubt, please ask us.
Series	MODX+
Category	Synthesizer
Brand Category	Yamaha - Synthesizers
Relevancy rank in Category Synthesizer	133 of 174
Date	September 2022
