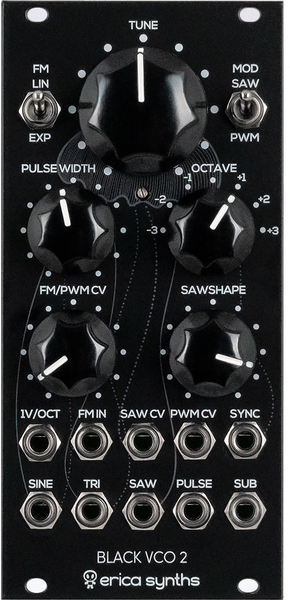

Erica Synths Black VCO2

Erica Synths
EUR 274.95
Will be ordered for you as quick as possible
Incl. VAT, free shipping

Analogue VCO with four simultaneous waveform outputs and one octave down suboscillator. Erica Synths Black VCO2 is all analogue, highly accurate and stable VCO with four simultaneous waveform outputs, one octave down suboscillator and some unique features. Unlike harsh, logic divider based suboscillators, Black VCO2 transistor-based suboscillator generates distinct, rounded squarewave. Futhermore, the Black VCO2 has built in Saw Waveshaper and two modulation LFOs. Together with Black VCO Expander – waveform mixer you get massive analogue sound source with plenty of patch points for modular use. Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest quality components are used, all inputs and outputs are protected against undesired overvoltage. Erica Black Series consist of range of modules that are needed to put together entire synth.

  • Audio output amplitude: 10Vptp
  • Octave range: C0 – C8
  • Panel width: 12HP
  • Module depth: 35mm
  • Power consumption: 71mA@+12V, 62mA@-12V
  • Power consumption w. Expander: 102mA@+12V, 87mA@-12V

Simultaneous sine, triangle, saw and pulse wave outputs
-1 octave suboscillator
Highly accurate and stable tracking across 8 octaves
Saw waveshaper with manual and CV control
Manually adjustable and CV controlled pulse width
Exponential/Linear FM input with an attenuator
2 built-in modulation LFOs
Synchronization input
Octave switch – 7 octaves
Skiff-friendly design

Product Details
Product Number
221715
Brand
Erica Synths
Series
Black
Category
Modular Oscillator
Brand Category
Erica Synths - Modular Oscillators
Relevancy rank in Category Modular Oscillator
11 of 25
Date
February 2025
Dimension
Box Depth
230mm
Box Height
80mm
Gross Weight
0.4kg
