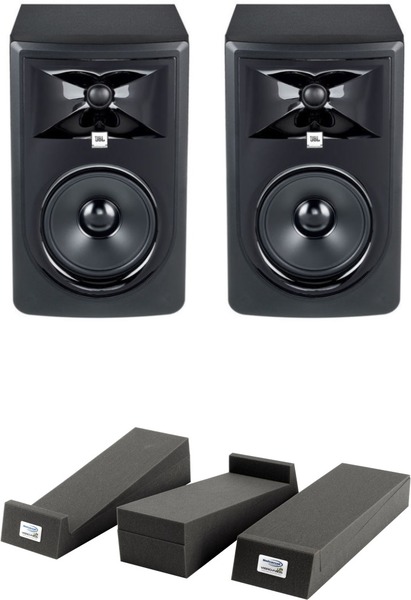

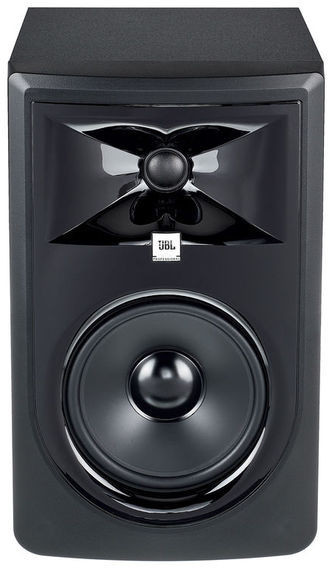

JBL 306P MKII (pair)

JBL
EUR 681.15
Will be ordered for you as quick as possible
Incl. VAT, free shipping
Powered 6" Two-Way Studio Monitor

This product is composed of the following parts

To help you make the best mix decisions, JBL equipped the 306P MkII with acclaimed 3 Series transducers that now perform even better. Hear deep, accurate and tightly controlled bass thanks to a long-throw 6.5" woofer and the patented JBL Slip Stream™ low-frequency port. Enjoy soaring, immaculately detailed highs via the woven-composite 1" Neodymium tweeter. JBL engineers took things to the next level with faster HF transient response through fine-tuned ferrofluid damping, and greater low frequency linearity and lower harmonic distortion courtesy of an enhanced woofer design. The result is a studio monitor you can trust—with unmatched peak handling, stunning dynamics and neutral frequency response that’s unbeatable in its class. JBL 306P MkII is ready for the most demanding production styles right out of the box. Dual integrated Class D power amplifiers, custom designed by JBL for each transducer, give you generous dynamic range for any project. From music production and podcasting to cinematic sound design or daily vlogging, enjoy the output and power you need to hear exceptional detail at any volume—even at peak SPLs. Simply plug in, power on, and start creating. The dimensions and acoustics of a room can have a major effect on sonic accuracy, and that’s why JBL 306P MkII lets you adjust the response to fit your studio. The new Boundary EQ attenuates the low-end boost that can occur when you place monitors directly on the desktop or near walls. The 3-position HF Trim switch allows you to adjust the high-frequency response of the 306P MkII to tailor it to room acoustics or personal tastes. Offering both balanced XLR and 1/4" TRS inputs, and adjustable +4dBu/-10dBV input sensitivity, the 306P MkII offers flexible, professional connectivity options to provide easy setup while maintaining your signal integrity.

  • - LF DRIVER SIZE: 165mm (6.5")
  • - HF DRIVER SIZE: 25mm (1")
  • - HF DRIVER TYPE: Soft dome
  • - CROSSOVER: 1425Hz 4th order acoustic Linkwitz-Riley
  • - OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT: Yes
  • - INPUT SENSITIVITY (-10dBV INPUT): 92dB / 1m
  • - POWER CONFIGURATION: Bi-amplified
  • - HF DRIVER POWER AMP: 56W, Class-D
  • - LF DRIVER POWER AMP: 56W, Class-D
  • - FREQUENCY RESPONSE (±3dB): 47Hz – 20kHz
  • - FREQUENCY RANGE (-10dB): 39Hz – 24kHz
  • - LOW FREQUENCY EXTENSION (-10dB): 39Hz
  • - MAXIMUM CONTINUOUS SPL: 92dB
  • - MAXIMUM PEAK SPL: 110dB
  • - MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu): +6dBV / +20.3dBu
  • - SYSTEM DISTORTION CRITERIA: <10% THD at maximum output with full compressor / limiter engagement
  • - ELECTRICAL DISTORTION CRITERIA: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
  • - SIGNAL TO NOISE RATIO: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
  • - COVERAGE HORIZONTAL x VERTICAL: 120° x 90°
  • - ANALOG INPUT TYPES: 1 x XLR female, 1 x TRS female, balanced
  • - HF TRIM CONTROL: -2dB, 0dB, +2dB
  • - BOUNDARY EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
  • - AC INPUT VOLTAGE: 100 – 240VAC (±10%), 50 / 60Hz
  • - ENCLOSURE TYPE: Ported
  • - ENCLOSURE CONSTRUCTION: 15mm MDF
  • - ENCLOSURE FINISH: Matte black PVC
  • - BAFFLE CONSTRUCTION: Injection-molded structural ABS

Key attributes
Speaker Size
5"-7"
Power
50W - 499W
Min. Frequency Range
47Hz
Max. Frequency Range
20000Hz
Nearfield Monitor attributes
Max SPL
<114dB
Type
Active
Configuration
Pair
Power Configuration
Bi-Amped
Input Types
XLR
1/4"
Output Types
XLR
1/4"
Unit
1 piece(s)
Product Details
Product Number
205860
Brand
JBL
Series
LSR
SubSeries
3
Category
Nearfield Monitor
Brand Category
JBL - Nearfields
Relevancy rank in Category Nearfield Monitor
121 of 156
Date
February 2019
