Arturia AudioFuse X8 IN
Analog to Digital Converter
Loading video player...
CHF 275.00
MSRP: CHF 325.00
Will be ordered for you as quick as possible
Free delivery in Switzerland
| Product # | 249576 |
| Brand | Arturia |
| Category | Analog to Digital Converter |
Expand your audio experience
8 line-level analog inputs
AudioFuse X8 IN adds 8 premium line inputs to existing audio interfaces, allowing you to accommodate more instruments and outboard gear.
With the latest generation AD converters up to 96 kHz sampling rate, enhance your studio flexibility and ensure your recordings maintain the highest fidelity.
More inputs, more control
Enhance your creative flow and have all your gear connected at once. AudioFuse X8 IN is the simplest way to extend the reach of your premium interface.
- 8x analog inputs to ADAT
- Word clock input on BNC
- 24-bit latest generation AD converters up to 96 kHz sampling rate
- Robust half 1-U rack chassis
- Assembly kit included to rack two AudioFuse X8 units
119 dB Dynamic Range
AudioFuse X8 features lush dynamics that ensure every nuance of your recording or performance is captured.
-112 dB Harmonic distortion
Deliver the full essence of your audio output without introducing unwanted distortion, maintaining the true character of your sound.
Capture Multiple Instruments
Connect multiple synthesizers, drum machines, and other electronic instruments, allowing you to capture high quality recordings.
Expand Microphone Capture
Connect additional microphone preamps for recording vocals, drums, or multi-instrument ensembles, with each sound source having its own dedicated channel
External Audio Processing
Route audio from your DAW to external processors like compressors, equalizers, and effects units, and then back into your DAW - enabling a hybrid mixing, setup.

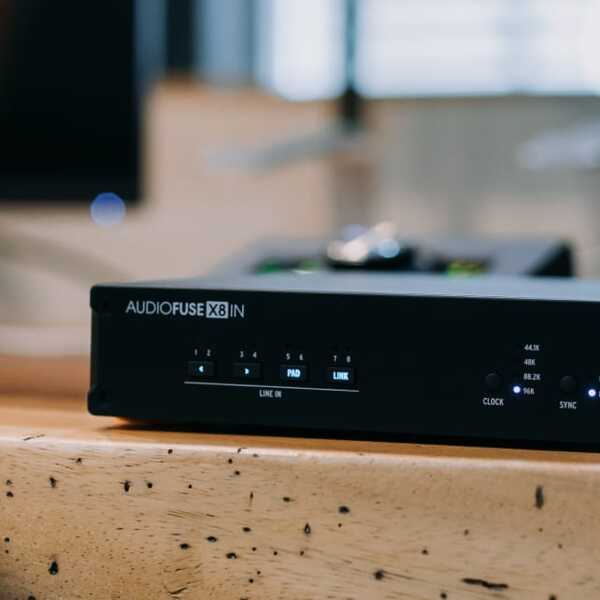

Be Ready to Record
Having everything connected ensures you can quickly switch between different devices and be ready to record without any setup delays.
- Power supply
- - 8x analog inputs to ADAT
- - Word clock input on BNC
- - 24-bit latest generation AD converters up to 96 kHz sampling rate
- - Robust half 1-U rack chassis
- - Assembly kit included to rack two AudioFuse X8 units
- Dimensions: 8.70 x 8.50 x 11.89 inches (221 x 216 x 48mm)
- Audio interface expander: 8 high quality analog inputs [1/4" TRS]
Input impedance: 20kΩ
- Maximum input level: +24dBu
- Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
- Dynamic range: 119dB typical (A-weighted)
- THD+N @ 1kHz: -112dB typical (un-weighted)
Latest generation AD converters up to 96 kHz:
- 44.1kHz
- 48kHz
- 88.2 kHz
- 96 kHz
ADAT out
- BNC Word clock in
- VU meter to monitor your sound in real time
- Robust half 1-U aluminum rack chassis
- Removable rack ears included for flexible installation
- AudioFuse creative suite included to explore and alter your sound
- Audio interface expander: 8 high quality analog inputs [1/4" TRS]
Input impedance: 20kΩ
- Maximum input level: +24dBu
- Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
- Dynamic range: 119dB typical (A-weighted)
- THD+N @ 1kHz: -112dB typical (un-weighted)
Latest generation AD converters up to 96 kHz:
- 44.1kHz
- 48kHz
- 88.2 kHz
- 96 kHz
ADAT out
- BNC Word clock in
- VU meter to monitor your sound in real time
- Robust half 1-U aluminum rack chassis
- Removable rack ears included for flexible installation
- AudioFuse creative suite included to explore and alter your sound
