Arturia AudioFuse X8 OUT

Digital to Analog Converter
Arturia
Loading video player...
CHF 250.00
MSRP: CHF 279.00
Will be ordered for you as quick as possible
Free delivery in Switzerland
Expand your audio experience

8 line-level analog outputs AudioFuse X8 OUT adds 8 high-quality line outputs to existing audio interfaces, allowing you to support more complex signal routing and live setups. With the latest generation DA converters up to 96 kHz sampling rate, enhance your studio flexibility and send audio to outboard gear, monitor speakers and control an array of synths via DC-coupled output. All connected at once The AudioFuse X8 OUT is an essential tool for recording producers and sound engineers who are looking for additional high-quality analog outputs. 120.5 dB Dynamic Range AudioFuse X8 features lush dynamics that ensure every nuance of your recording or performance is captured. 240 Ω Output Impedance With 240 Ω balanced and 120 Ω unbalanced output impedance, AudioFuse X8 OUT ensures signal integrity, minimised noise and broad compatibility. -106 dB Harmonic Distortion Deliver the full essence of your audio output without introducing unwanted distortion, maintaining the true character of your sound.

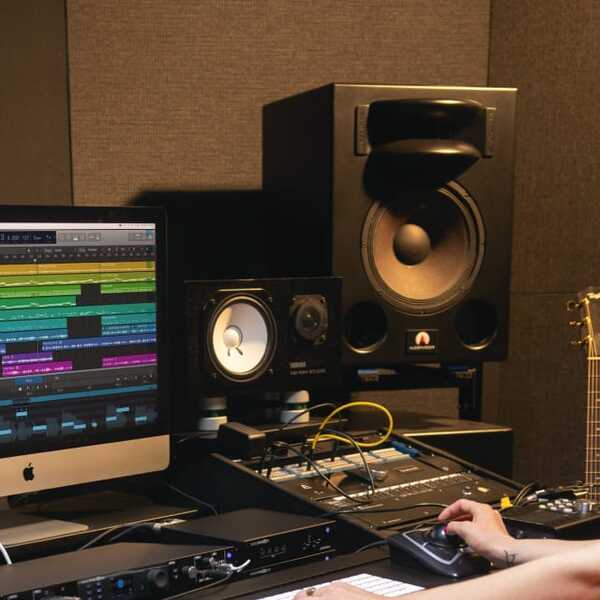

Scale up monitoring

Scale up monitoring

Connect additional speakers for multi-point monitoring or surround sound speaker arrays for immersive audio projects, film and TV.

Synth control

Synth control

Send CV signals to your synths via DC-coupled outputs. This enables precise automation of parameters such as pitch, filter cutoff, and modulation directly from your DAW.

Outboard FX routing

Outboard FX routing

Easily route audio from your DAW to outboard processors, such as compressors, equalizers, or reverb units, and back into your DAW to leverage both digital and analog processing.

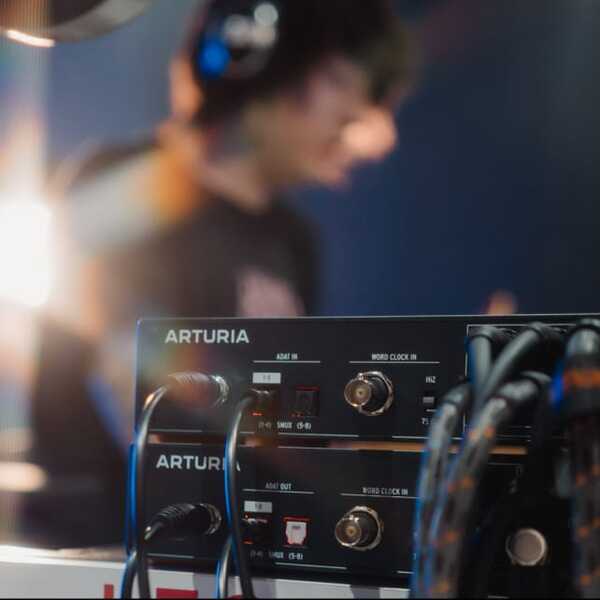

Broadcast and streaming

Broadcast and streaming

Send separate audio mixes to different broadcast or streaming devices, enabling versatile routing for live streaming, internet radio, or video productions.

- Power supply

  • - 8x DC coupled outputs
  • - Word clock input on BNC
  • - 24-bit latest generation DA converters up to 96 kHz sampling rate
  • - Robust half 1-U rack chassis
  • - Assembly kit included to rack two AudioFuse X8 units

- Dimensions: 8.70 x 8.50 x 11.89 inches (221 x 216 x 48mm)
- Audio interface expander: 8 high quality analog outputs [1/4" TRS]
Output impedance: 240Ω
- Maximum input level: +24dBu
- Frequency response 20Hz to 20kHz: +/-0.04dB (min gain)
- Dynamic range: 120.5dB typical (A-weighted)
- THD+N @ 1kHz: -106dB typical (un-weighted)
Latest generation DA converters up to 96 kHz:
- 44.1 kHz
- 48 kHz
- 88.2 kHz
- 96 kHz
ADAT in
- BNC Word clock in
- Robust half 1-U aluminum rack chassis
- Removable rack ears included for flexible installation
- AudioFuse creative suite included to explore and alter your sound

Product Details
Product Number
249577
Brand
Arturia
Category
Digital to Analog Converter
Relevancy rank in Category Digital to Analog Converter
3 of 4
Date
July 2024
Product Quantity
Unit
1 piece(s)
