Behringer VICTOR
| Product # | 245802 |
| Brand | Behringer |
| Category | Modular Oscillator |
| Brand Category | Behringer - Modular Oscillators |

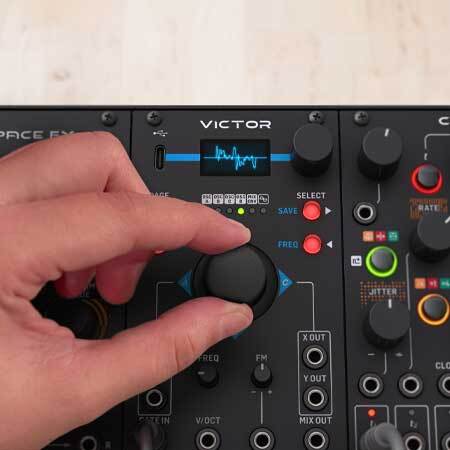

All on the Table
The VICTOR features 4 vector oscillators that can be manipulated and shaped by moving the joystick. And because the VICTOR uses wavetable synthesis, up to 128 waveforms are available to you, making this module really versatile and a great addition to your setup.

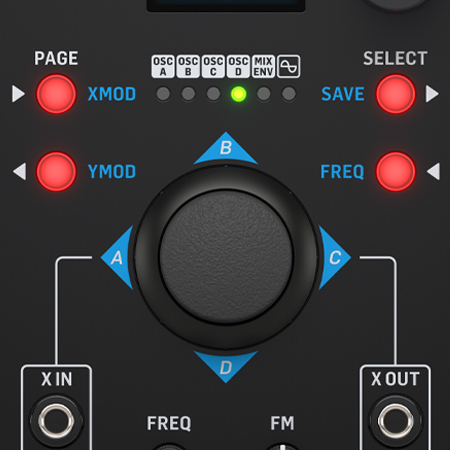

Modify and Modulate!
In addition to the central joystick on the VICTOR, the XMOD and YMOD buttons allow you to set the modulation depth of any external signals patched through the X IN and Y IN respectively. The VICTOR’s frequency range can also be adjusted up to 7 semitones.

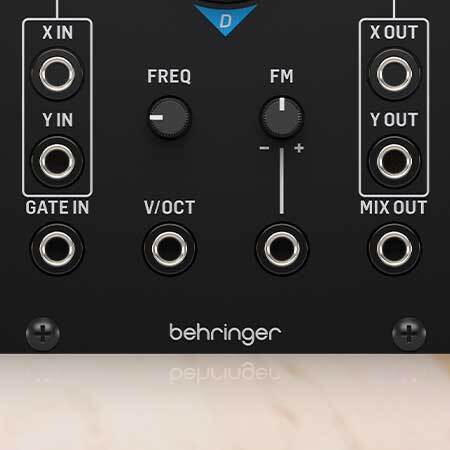

All Patched In
Just like any great module, the VICTOR can also have external sources patched in and have itself patched to different sources as well. It features gate and FM inputs as well as a mix output to patch out all four oscillators for further processing. You can even use the VICTOR to control other modules with the joystick!

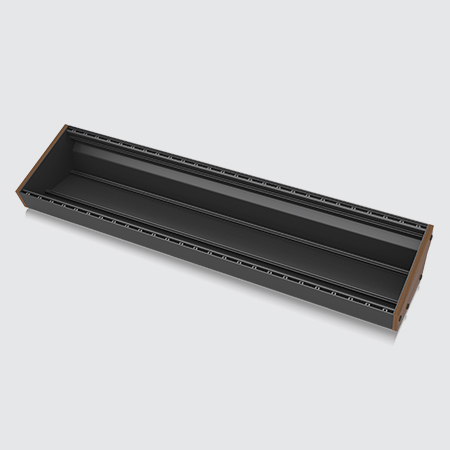

Eurorack Ready
The VICTOR is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows it to be mixed with other synth modules for a truly unique set up.
- - 4 Vector oscillators featuring wavetable synthesis with 128 waveforms
- - Authentic reproduction of original Prophet VS * sound engine
- - Creative morphing of all 4 oscillators via joystick
- - Inspiring OLED oscilloscope for waveform visualization
- - Synthesis models designed for pitched sounds like ripping leads, lush chords and ethereal pads
- - Morph control to seamlessly change the character of the selected sound sources
- - Separate joystick CV outputs for external control
- - USB connector for easy firmware update
- - Eurorack specs: 14 HP, 130 mA +12 V, 10 mA -12 V
- USB-C: Class compliant USB-C Socket
- Inputs
- V/oct: 3.5 mm TS jack, - 5 V to + 5 V range, impedance 50 kΩ
- Gate: 3.5 mm TS jack, v-trigger, impedance 50 kΩ
- FM: 3.5 mm TS jack, - 5 V to +5 V range, impedance 50 kΩ
- X / Y: 2 x 3.5 mm TS jack, -5 V to, +5 V range, impedance 50 kΩ
- Outputs
- Mix: 3.5 mm TS jack, DC coupled, impedance 1 kΩ
- X / Y: 2 x 3.5 mm TS jack, - 5 V to +5 V range
- Controls: Data, Joystick, Frequency, FM attenuverter
- Buttons: Page > / X mod depth, Page < / Y mod depth, Select > / Save, Select < / Freq
- Screen: 2.5 cm (0.98") OLED
- Power Consumption: 110 mA (+12 V) / 7 mA (-12 V)
- Eurorack: 14 hp
| Product Dimensions | |
|---|---|
| Depth | 1250mm |
| Width | 71mm |
| Height | 41mm |
| Modular Oscillator attributes | |
|---|---|
| Unit | 1 piece(s) |
| Product Details | |
|---|---|
| Product Number | 245802 |
| Brand | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Modular Oscillator | |
| Date | June 2024 |
| Dimension | |
|---|---|
| Weight | 0.13kg |
| Box Depth | 173mm |
| Box Width | 71mm |
| Box Height | 76mm |
| Gross Weight | 0.28kg |
