Martin Miller signature guitar.

The Ibanez MM1, a Martin Miller signature guitar, is crafted to meet the demands of the renowned guitarist, offering unparalleled playability and versatile sound. Featuring an S-TECH WOOD roasted Maple neck and fretboard, the guitar benefits from enhanced stability, durability, and rich sustain, thanks to a special roasting treatment. This ensures a well-balanced tone and a comfortable neck grip, allowing for supreme performance. The Super All Access Neck Joint maximizes the connection between the body and neck, promoting increased sustain and resonance, while providing superior playability. With luminescent side dot inlays, players can easily navigate the fretboard even on dark stages. Equipped with Gotoh® Magnum Lock machine heads featuring H.A.P. (Height Adjustable Post) technology, the MM1 ensures remarkable tuning stability and the ability to adjust string tension effortlessly. The oil-impregnated bone nut and stainless steel frets contribute to warm resonance, superior tuning stability, and clear tone articulation. Seymour Duncan Hyperion Pickups provide a moderate output with Alnico-5 magnets, maintaining tonal clarity across the spectrum, even with distortion. Paired with the dyna-MIX 10 switching system and an Alter switch, players can explore ten sound variations, seamlessly switching between humbucker and single coil modes to achieve versatile sonic textures. The Ibanez T1802 synchronized bridge, crafted by Gotoh®, includes machined titanium saddles and a steel tremolo block for quick response and rich tonal depth. Its snap-in construction simplifies the installation of a tremolo arm, offering ease of use and precision. The Ibanez MM1 is designed for dynamic versatility and precision, embodying Martin Miller’s distinct playing style and meticulous standards.
S-TECH WOOD Roasted Maple 1pc neck

S-TECH WOOD Roasted Maple 1pc neck

S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

S-TECH WOOD Roasted Maple Fretboard

S-TECH WOOD Roasted Maple Fretboard

S-TECH special roasted treatment provides a superior attack and a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

Super All Access Neck Joint

Super All Access Neck Joint

The Super All Access Neck Joint offers superior playability with its 8mm concave curve from the body top to the spherical surface of the joint area. By maximizing the joint area between the body and the neck, sustain and resonance are increased as well.

Luminescent side dot inlay

Luminescent side dot inlay

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

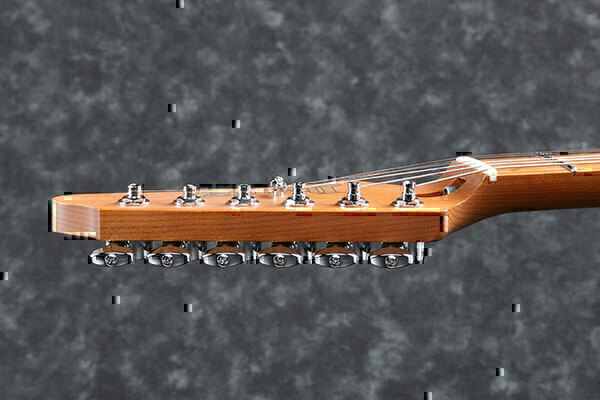

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

The AZ comes with GOTOH® MAGNUM LOCK® machine heads, which have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Oil-impregnated Bone nut /Stainless Steel Frets

Oil-impregnated Bone nut /Stainless Steel Frets

The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.

Seymour Duncan Hyperion Pickups

Seymour Duncan Hyperion Pickups

Seymour Duncan Hyperion Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

dyna-MIX 10 switching system w/Alter switch

dyna-MIX 10 switching system w/Alter switch

dyna-MIX 10 offers ten sound variations, and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Ibanez T1802 synchronized bridge (Made by Gotoh®)

Ibanez T1802 synchronized bridge (Made by Gotoh®)

T1802 tremolo bridge features machined titanium saddles and a machined steel tremolo block for a quick response, thick lows and rich highs. The 10.5mm string spacing allows for easy picking across strings. Its snap-in construction makes it easy to load a tremolo arm.

  • - S-TECH WOOD Roasted Maple 1pc neck
  • - S-TECH WOOD Roasted Maple Fretboard
  • - Super All Access Neck Joint
  • - Luminescent side dot inlay
  • - Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)
  • - Oil-impregnated Bone nut /Stainless Steel Frets
  • - Seymour Duncan Hyperion Pickups
  • - dyna-MIX 10 switching system w/Alter switch
  • - Ibanez T1802 synchronized bridge (Made by Gotoh®)

- neck type: MM S-TECH WOOD Roasted Maple neck
- body: Flamed Maple top/African Mahogany body
- fretboard: S-TECH WOOD Roasted Maple fretboard w/Abalone dot inlay
- fret: Jumbo Stainless steel frets
- bridge: Gotoh T1802 tremolo bridge
- neck pickup: Seymour Duncan Hyperion (H) neck pickup (Passive/Alnico)
- bridge pickup: Seymour Duncan Hyperion (H) bridge pickup (Passive/Alnico)
- nut: Bone nut
- hardware color: Chrome
- case/bag: Hardshell case included
Neck Dimensions
- Scale : 648mm/25.5"
- a : Width: 42mm at NUT
- b : Width: 57mm at 24F
- c : Thickness: 20.5mm at 1F
- d : Thickness: 22.5mm at 12F
- Radius : 305mmR

Key attributes
Pickup Types
HH
Colour
Blue
Body Shape
ST-Model
Fingerboard Material
Roasted Maple
Body Material
Mahogany
Body
Guitar Construction
Solid Body
Orientation
Right-Handed
Top Material
Maple
Neck
Fingerboard Radius
12"
Neck Material
Maple
Guitar Scale
25.5"
Neck Profile
Custom
Number of Frets
24
Fret Size
Jumbo
Nut Width
42mm
Nut Material
Bone
Position Inlays
Dots
Hardware
Bridge Type
Tremolo
Hardware Finish
Chrome
Silver
Tuning Machines
Locking Tuning Machines
Coil Split
No
Including Bag
Hard case
Product Dimensions
Depth
430mm
Width
1130mm
Height
150mm
General Information
Manufacturer information
Hoshino USA Inc.
1726 Winchester Rd, Bensalem
19020 Bensalem PA
United States
Electric Guitar ST-Model attributes
Guitar Finish
Gloss
Unit
1 piece(s)
Product Details
Product Number
199972
Brand
Ibanez
Series
Signature
SubSeries
Martin Miller
Category
Electric Guitar ST-Model
Brand Category
Ibanez - ST Models
Relevancy rank in Category Electric Guitar ST-Model
669 of 809
Date
January 2020
Dimension
Weight
3.3kg
Box Width
1130mm
Gross Weight
10.1kg
