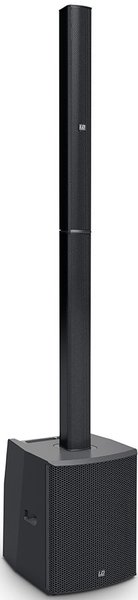

MAUI 28 G2 (black)
EUR 1099.00
EN
- Log in
LD-Systems MAUI 28 G2 W (white)
EUR 1298.00
EUR 1299.00
2 units in stock
Online only
Expected delivery: 14 May - 20 May to your country (DE)
Incl. VAT, free shipping
| Product # | 192118 |
| Brand | LD-Systems |
| Series | LD-Systems Portable PA |
| SubSeries | LD-Systems Portable PA MAUI |
| Category | Compact Line Array System |
| Brand Category | LD-Systems - Compact Line Array Systems |
Accessories
Recommended accessories
Variants
Compact all-in-one column PA system, active with mixer and Bluetooth, also for monitor applications
All-in-one column speakers for PA and monitor applications
4.000 Watts peak Class D system power offers high performance with low weight
Powerful bass reproduction thanks to 2 x 8" woofers
Balanced mid-range thanks to 16 x 3" full-range speakers
Precise and silky highs with 2 x 1" high-frequency drivers
Increased range and wider room coverage thanks to array arrangement
Homogeneous dispersion due to BEM-optimized tweeter waveguide
Distortion-free sound even at the highest volume levels thanks to LD Systems DynX DSP technology
Full control through 4-channel mixer incl. Bluetooth stereo audio streaming
Two-piece column for compact transportation
Secure plug-and-play connection thanks to wireless multipin plug-in mechanism
Versatile application options thanks to detachable column
Easy operation with presets for mono or stereo configuration
Extensive and clever accessories for installation and transportation
- - Product type: PA complete systems
- - Type: active
- - Color: white
- - Max. SPL (continuous): 120 dB
- - Max. SPL (peak): 126 dB
- - Frequency response: 45 - 20000 Hz
- - Dispersion angle (H x V): 120° x 20 °
- - Total height: 2059 mm
- - Weight: 31.2 kg
- Features woofer
- - Size of woofer: 2 x 8 "
- - Size of woofer: 2 x 203 mm
- - Magnet woofer: Ferrite
- - Woofer brand: Custom Made
- - Voice coil woofer: 2 "
- - Voice coil woofer: 50.8 mm
- - Housing construction: Bass reflex
- - Housing material: 15 mm plywood
- - Housing surface: textured lacquer
- - Subwoofer width: 370 mm
- - Subwoofer height: 484 mm
- - Depth of subwoofer: 480 mm
- - Subwoofer weight: 20.2 kg
- Mid/Hi system
- - Size mid-woofer: 16 x 3 "
- - Size of midrange driver: 16 x 76.2 mm
- - Magnet center pole: Ferrite
- - Brand center driver: Custom Made
- - Voice coil center: 1 "
- - Voice coil center: 25.4 mm
- - Horn: Waveguide
- - Size tweeter: 2 x 1 "
- - Tweeter size: 25.4 mm
- - Magnet tweeters: Neodymium
- - Tweeter brand: Custom Made
- - Voice coil tweeter: 1 "
- - Voice coil tweeter: 25.4 mm
- - Speaker input: 1
- - Speaker input terminals: Custom made multipin
- - Housing type mid/hi system: closed
- - Housing material mid/hi system: aluminum
- - Housing surface Mid/Hi system: HD coating
- - Width Mid/Hi system: 96 mm
- - Mid/Hi system height: 780 / 795 mm
- - Depth Mid/Hi system: 104 mm
- - Weight Mid/Hi system: 5.6 / 5.4 kg
- Amplifier module (integrated in the subwoofer)
- - Amplifier: Class D
- - System amplifier power (RMS): 1000 W
- - System amplifier power (peak): 4000 W
- - Protection circuits: DC protection , Short circuit , Multiband limiter , Overheating
- - Cooling: Convection
- - Operating temperature: 40 °C
- - Humidity range: 10% - 80% rel. (non-condensing) °C
- Controls:
- Bluetooth switch , Hi-Z Level , Line Level , Main Level , Mono-Stereo switch , MP3/Bluetooth Level , Power , Sub Level
- - Display elements
- - Limit , Mono , On , Protect (protection circuit active) , Setup , Signal , Stereo
- - Power supply connection
- - IEC (power cable included)
- - Power supply
- - 100 - 120V / 50 - 60Hz or 200 - 240 V / 50 - 60Hz (automatic conversion)
- - Power consumption Off / On / Max.
- - 0/11/600 W
- - Line input
- - 2 x stereo
- - Line input connections
- - RCA , XLR/6.3 mm jack
- - Line outputs
- - 2 (1x System Out, 1x Sub Out)
- - Line output connections
- - XLR
- - Mic inputs: 1
- - Mic input connections
- - XLR/6.3 mm jack
- - MP3 inputs
- - 1
- - MP3 input connectors
- - 3.5 mm jack
- - Hi-Z inputs
- - 1
- - Hi-Z input connectors
- - 6.3 mm jack
- - Speaker outputs: 1
- - Speaker output connections: Custom made multipin
- - DSP features: Word width AD / DA converter 24 bit
- - internal sampling frequency: 48 kHz
- - Signal to noise ratio: 100 dB
General:
- Weight: 30,9 kg
- Product type: PA Complete Systems
- Type: active
- Color: Black
- Max. SPL (peak): 126 dB
- Frequency response: 45 - 20000 Hz
- Dispersion (H x V): 120° x 20 °
- Overall height: 2059 mm
Woofer characteristics:
- Low/mid driver dimensions: 2 x 8 "
- Woofer size: 2 x 203 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2 "
- Woofer voice coil (mm): 50.8 mm
- Cabinet construction: Bass Reflex
- Cabinet material: 15 mm Plywood
- Cabinet surface: texture paint
- Subwoofer width: 370 mm
- Subwoofer height: 484 mm
- Subwoofer depth: 480 mm
- Subwoofer weight: 19.7 kg
Mid/Hi System:
- Midrange size: 16 x 3 "
- Midrange size: 16 x 76.2 mm
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 1 "
- Midrange voice coil: 25.4 mm
- Horn: Waveguide
- Tweeter dimensions: 2 x 1 "
- Tweeter dimensions (mm): 25.4 mm
- Tweeter magnet: Neodymium
- Tweeter brand: Custom-made
- Tweeter voice coil: 1 "
- Tweeter voice coil (mm): 25.4 mm
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: Aluminium
- Mid/Hi system cabinet surface: HD coating
- Mid/Hi system width: 96 mm
- Mid/Hi system height: 780 / 795 mm
- Mid/Hi system depth: 104 mm
- Mid/Hi system weight: 5.6 / 5.6 kg
Amplifier module (integrated in subwoofer):
- Amplifier: Class D
- Amplifier output system (RMS): 1000 W
- Amplifier output system (peak): 2000 W
- Protection circuits: DC protection, Multiband limiter, short circuit, thermal overload
- Cooling: Convection
- Operating Temperature: 0 - 40 °C
- Humidity Range: 10% to 80%, (non-condensing)
- Controls: Bluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
- Indicators: Limit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
- Power connector: IEC power cable (included)
- Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
- Power consumption Off / On / Max.: 0/11/600 W
- Line inputs: 2 x stereo
- Line input connectors: RCA, XLR/6.3 mm jack
- Line outputs: 2 (1x System Out, 1x Sub Out)
- Line output connectors: XLR
- Mic inputs: 1
- Mic inputs: XLR/6.3 mm jack
- MP3 inputs: 1
- MP3 input connectors: 3.5 mm jack
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm jack
- Loudspeaker outputs: 1
- Speaker output connections: Custom-made multipin
DSP characteristics:
- Bit depth AD/DA converter: 24 bit
- Internal sampling frequency: 48 kHz
- Signal/noise ratio: 100 dB
- Weight: 30,9 kg
- Product type: PA Complete Systems
- Type: active
- Color: Black
- Max. SPL (peak): 126 dB
- Frequency response: 45 - 20000 Hz
- Dispersion (H x V): 120° x 20 °
- Overall height: 2059 mm
Woofer characteristics:
- Low/mid driver dimensions: 2 x 8 "
- Woofer size: 2 x 203 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2 "
- Woofer voice coil (mm): 50.8 mm
- Cabinet construction: Bass Reflex
- Cabinet material: 15 mm Plywood
- Cabinet surface: texture paint
- Subwoofer width: 370 mm
- Subwoofer height: 484 mm
- Subwoofer depth: 480 mm
- Subwoofer weight: 19.7 kg
Mid/Hi System:
- Midrange size: 16 x 3 "
- Midrange size: 16 x 76.2 mm
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 1 "
- Midrange voice coil: 25.4 mm
- Horn: Waveguide
- Tweeter dimensions: 2 x 1 "
- Tweeter dimensions (mm): 25.4 mm
- Tweeter magnet: Neodymium
- Tweeter brand: Custom-made
- Tweeter voice coil: 1 "
- Tweeter voice coil (mm): 25.4 mm
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: Aluminium
- Mid/Hi system cabinet surface: HD coating
- Mid/Hi system width: 96 mm
- Mid/Hi system height: 780 / 795 mm
- Mid/Hi system depth: 104 mm
- Mid/Hi system weight: 5.6 / 5.6 kg
Amplifier module (integrated in subwoofer):
- Amplifier: Class D
- Amplifier output system (RMS): 1000 W
- Amplifier output system (peak): 2000 W
- Protection circuits: DC protection, Multiband limiter, short circuit, thermal overload
- Cooling: Convection
- Operating Temperature: 0 - 40 °C
- Humidity Range: 10% to 80%, (non-condensing)
- Controls: Bluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
- Indicators: Limit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
- Power connector: IEC power cable (included)
- Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
- Power consumption Off / On / Max.: 0/11/600 W
- Line inputs: 2 x stereo
- Line input connectors: RCA, XLR/6.3 mm jack
- Line outputs: 2 (1x System Out, 1x Sub Out)
- Line output connectors: XLR
- Mic inputs: 1
- Mic inputs: XLR/6.3 mm jack
- MP3 inputs: 1
- MP3 input connectors: 3.5 mm jack
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm jack
- Loudspeaker outputs: 1
- Speaker output connections: Custom-made multipin
DSP characteristics:
- Bit depth AD/DA converter: 24 bit
- Internal sampling frequency: 48 kHz
- Signal/noise ratio: 100 dB
| Compact Line Array System attributes | |
|---|---|
| Unit | 1 piece(s) |
| Product Details | |
|---|---|
| Product Number | 192118 |
| Brand | |
| Series | |
| SubSeries | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Compact Line Array System | |
| Date | February 2017 |
| Dimension | |
|---|---|
| Gross Weight | 29kg |
