WesAudio ngBusComp / Compressor

EUR 3329.00

Will be ordered for you as quick as possible

Incl. VAT, free shipping

Product #	213080
Brand	WesAudio
Series	WesAudio Next Generation
Category	Compressor/Limiter
Brand Category	WesAudio - Compressors & Limiters

Next Generation Bus Compressor with Digital Recall

Now, we improve this design creating whole new level of versitality with unbeliveble modern DAW integration – We present ngBusComp – fully analog, dual mono, stereo, mid-side compressor, with digital recall.

TRUE QUAD VCA THAT 2181

First and most important point – ngBusComp is 100% analog device with +24dBu of headroom. Regardless its digital control nature, fully analog signal path provides top VCA compression sound. Four THAT 2181 VCA in signal chain, and one in side chain detector for each channel!

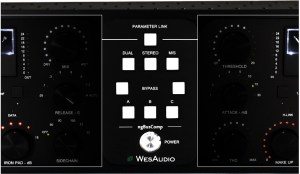

Relative channel linking!

Channels can be linked/unlinked anytime! It is allowed to have different settings on both channels and still manage those in a relative way! We can work on Mid-Side mix separately for each channel, but if we would like to change ballance of whole track, it is enough to engage “parameter link” and both channels Make Up gain will be adjusted relatively keeping same amount of volume difference!

MID-SIDE operation mode

ngBusComp supports mid-side opeartion, you can give your side channel diffferent compression settings then middle channel!

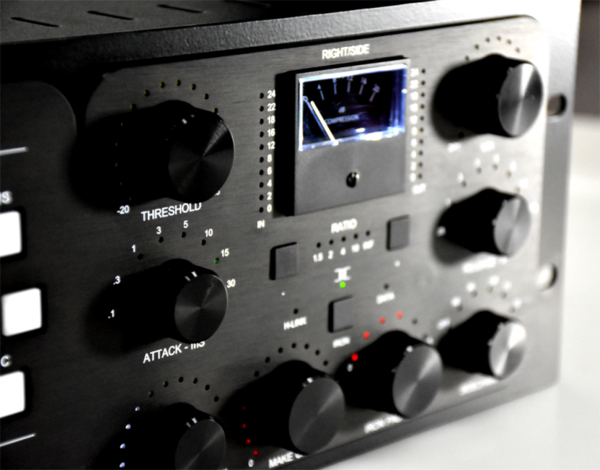

FIVE RATIO SETTINGS

ngBusComp provides selectable ratios of 1.5:1 and 2:1 for gentle mixbus processing, 4:1 and 10:1 for large variety of applications, and INF mode – to hit and crash your transients!

External Side chain!

ngBusComp allows to create custom side chain signal to control each channel of compressor!

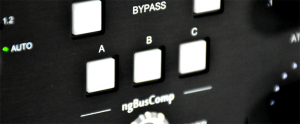

HARDWARE A/B/C

Even using ngBusComp as pure analog signal processor you can easily switch between three memory settings with a magic of a simple buttons.

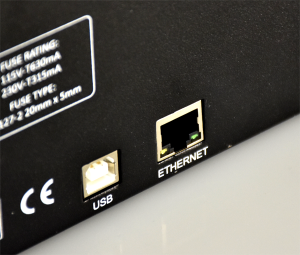

USB or Ethernet connectivity!

ngBusComp supports direct USB connection, or you can also managed it in your local network, just plug in ethernet cable to Your router!

– 100% analog device with +24dBu of headroom powered by QUAD VCA THAT 2181,
– Dual mono and stereo compression
– Mid-side mode
– Two selectable output stages – normal(electronically balanced), IRON (transformer balanced)
– IRON PAD – passive attenuator enabled in IRON mode allows to drive output transformer for musical saturation
– Flexible DAW/Live plug-in control for instant recall
– Controllable thorugh standalone WesAudio application
– Relative parameter linking for better unit management
– MIX KNOB FOR PARALLEL COMPRESSION
– Detailed metering for both channels – Gain reduction, input and output
– THD – Proprietary THD with precise variable control
– Side chain filters – 3 high pass filters at 60,90 and 150 Hz, and 2 tilt filters which are special “curve” designed filters

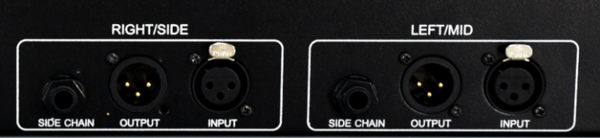

– External side chain for each channel via TRS back connector
– FIVE RATIO SETTINGS – 1.5:1 and 2:1 for gentle mixbus processing, 4:1 and 10:1 for large variety of applications, and INF (crash) mode!
– Management via Ethernet or USB
– A/B/C compare feature
– TOTAL RECALL AND PLUGIN CONTROL compatible with most DAWs.
– ANALOG AUTOMATION in DAW.
– 4 Touch sensitive encoders per each channel allow to record automation in DAW
– Fully digitally controlled and isolated analog circuit,
– True bypass,
– Free software and firmware upgrades.
– Size: 3U

Product Details
Product Number	213080
Brand	WesAudio
Series	Next Generation
Category	Compressor/Limiter
Brand Category	WesAudio - Compressors & Limiters
Relevancy rank in Category Compressor/Limiter	28 of 48
Date	January 2021
