Wharfedale Pro WLA210X
| Product # | 254254 |
| Brand | Wharfedale Pro |
| Category | Line Array Component |

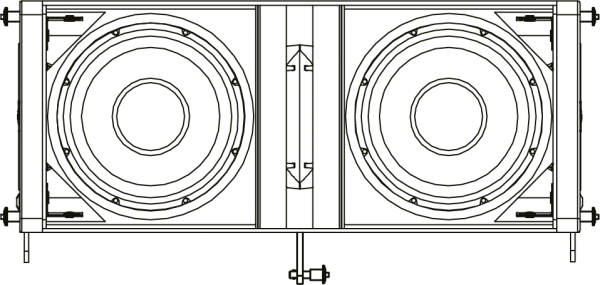

Dual 10"
At the heart of the WLA-210X are 2 x 10″ custom Wharfedale Pro LF drivers. These have been meticulously designed to ensure high efficiency and high power handling. The HF Compression driver is also custom made by Wharfedale Pro. Using a neodymium magnet and a 3.0″ voice coil, this compression driver is coupled to a 100° x 10° waveguide. These custom designed transducers are what give a WLA-210X system its incredible sound and power handling capacity.

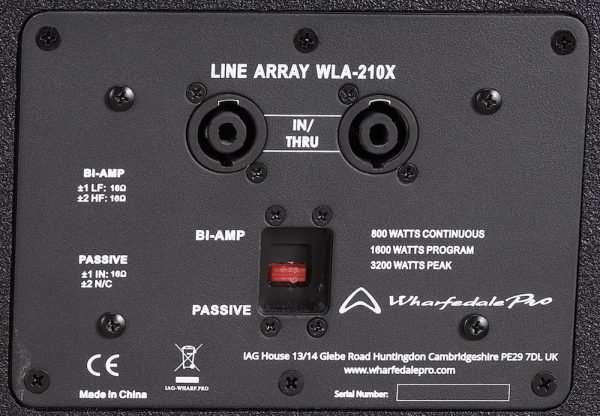

Bi-amp & passive modes
n BI-AMP mode, two power amplifier channels can be used, one for each section of the loudspeaker (HF compression driver and LF transducers). DSP (Digital signal processing) is used to separate the audio signal into specific frequency bands for each amplifier channel, powering only the corresponding driver section inside the loudspeaker. This gives you the advantage of being able to select the optimal power specifications and use independent limiter and EQ settings for each driver, resulting in more granular system control and a safer, more efficient, and protected system. In PASSIVE mode, a single amplifier channel can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal passive crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier channel is powering both the HF compression driver and the LF transducers. The internal crossover takes care of both the frequency and power separation. The Wharfedale Pro Preset Library includes factory presets for both BI-AMP and PASSIVE modes, these must be used for optimal loudspeaker performance and protection.

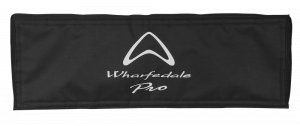

Optional TOUR BAGS
Protect your WLA array system with the WLA-210X tourbags. Removeable panels and front grille allow the WLA element to be used even while in its protective padded covering. Ideal for rental and touring applications, these tourbags will keep your system safe and protected during its hardworking lifespan! For WLA-210X and WLA-210XSUB.
- - 2 x 10′′ LF driver
- - 3′′ neodymium RF compression driver
- - 138 dB maximum sound pressure
- - 15mm / 18mm Birch Plywood Construction
- - Integrated, side adjustable rigging system
- - 100° x 10° radiation behavior
- - 180 Watt program HF
- - 1600 Watt program LF
- - 16 Ω Impedance
- Configuration in both directions
- Frequency response (+/- 3 dB) 65 Hz - 20 kHz
- Frequency range (-10 dB) 60 Hz - 20 kHz
- Bi-amp sensitivity HF: 112 dB / LF: 100 dB
- Bi-Amp Max. SPL at 1m HF: 138 dB / LF: 135 dB
- Nominal resistance of system 16?
- LF Converter
- Size 2 x 260 mm / 10"
- Voice coil size 65 mm / 2.5"
- LF magnetic material Ferrite
- Nominal impedance 8? x 2
- LF power in terms of: AES2-2012 2 x 400w
- RF Converter
- RF Driver Type Compression Driver
- Coil size 75 mm / 3.0"
- Output size 1.4"
- RF Magnet Type NdFeB
- Membrane material titanium
- Nominal impedance 16?
- RF power to: AES2-2012 80w
- Waveguide type square
- Nominal cover 100 ° x 10 °
- Continuous power of the system HF: 90w / LF: 800w
- System program power HF: 180w/LF: 1600w
- System peak power HF: 360w / LF: 3200w
- Transition frequency 1.5 kHz
- Bi-amp mode switch Yes
- Input connection 2 x SpeakON compatible
- Rigging 3 Integral
- Mast bracket No
- Handles 2
- enclosure
- Housing type Trapezoidal
- Material 15 mm / 18 mm plywood
- Color options Black color
- Grill material steel
- Dimensions unpacked
Height 314 mm / 12.4"
- width front 760mm / 29.9"
- width rear 760mm / 29.9"
- Depth 518,5 mm / 20.4"
- Dimensions packed
Height 404 mm / 15.9"
- Width front 855 mm
- width rear 855 mm
- Depth 594 mm / 23.4"
- Weight
Net weight 34.8 kg
- Gross weight 38.5 kg
