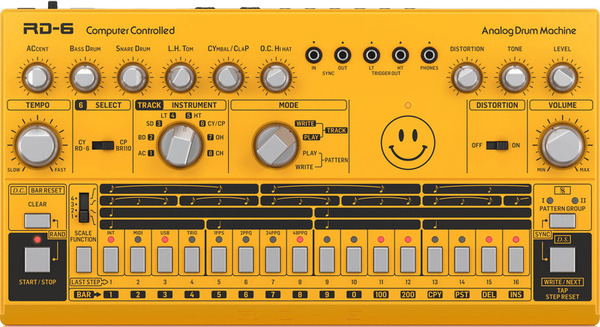

RD-6-AM Analog Drum Machine
EUR 123.90
EN
- Log in

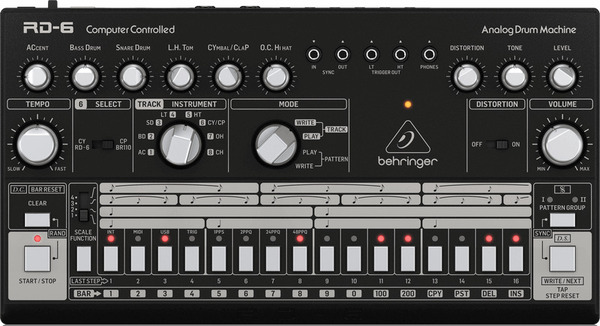

Behringer RD-6-BK Analog Drum Machine
EUR 124.75
In stock
Online only
Expected delivery: 06 May - 12 May to your country (DE)
Shipping cost: EUR 23.95
Incl. VAT. Free delivery in Germany from EUR 150
| Product # | 220909 |
| Brand | Behringer |
| Category | Drum Machine |
| Brand Category | Behringer - Drum Machines |
Variants
Classic Analog Drum Machine with 8 Drum Sounds, 16-Step Sequencer and Distortion Effect.
Classic Analog Drum Machine with 8 Drum Sounds, 16-Step Sequencer and Distortion Effect.

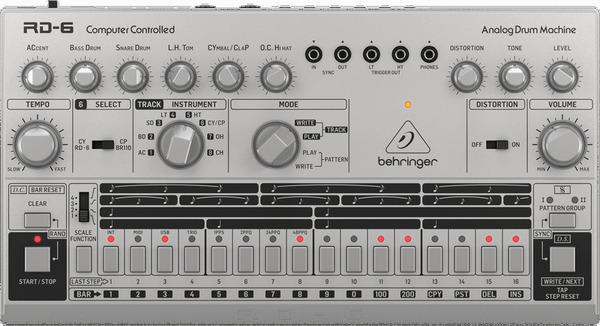

RD-6-SR
The RHYTHM DESIGNER RD-6-SR provides all the tools you need to become a master beat-maker, including: 8 drum sound and a 64-step sequencer – for a quick and easy-to-use drum machine that’ll shake the house! Whether you’re new to drum programming or a seasoned pro looking to enhance your setup, the RD-6-SR has everything you need to step up to the big leagues.
Masterpiece Rejuvenated
Great care has been taken in designing the RD-6-SR to achieve new possibilities in beat creation by reviving a timeless design from one of the most classic drum machines of yesteryear. By taking a fresh and modern approach on a classic drum machine, the RD-6-SR gives you the power to harness the phenomenal sound of the venerable TR-606 and tap into some new features as well. Punchy bass drums through sizzling hi-hats and even the authentic and renowned BR-110 clap sound can be manipulated to take your rhythm performance to the next level. This is an analog beat-making monster!
Complete Control
Built to enhance the way you perform, the RD-6-SR boasts a 64-step drum sequencer which allows for real-time switching between 32 separate patterns. Start building song structures on-the-fly and even edit them to your liking. Mix any of the 8 drum sounds by adjusting their dedicated level knobs. The RD-6-SR also comes with a distortion based on the venerable DS-1. Add spice and a bit of edge to your tone by flipping the Distortion switch on and adjusting the amount and tone of the distortion. Each pattern you create can also be chained into a whole song up to 256 bars which adds up to eight and a half minutes of beats perfect for those spicy jams where you just can’t stop.
USB Control
To bring the RD-6-SR into the modern age, USB connectivity has been added for sync and MIDI triggering. This enables the RD-6-SR to be controlled by your DAW if desired, allowing songs and patterns to be swapped or individual sounds to be triggered.
The Numbers
The RD-6-SR has 11 knobs and 26 buttons, all laid out in a highly-intuitive format that puts the fun back into your beat creation. Input and output connections include: Open or Closed Hi-Hat, Clap, Cymbal, Low and Hi Tom, Snare and Bass Drum Voice Outs; Start/Stop for connecting a foot pedal; MIDI In, Out and Thru over USB for connecting the RD-6-SR to a DAW and 5 pin MIDI ports.
- Number of sounds: 8
- Type: Analog
- Number of simultaneous voices: 8
- Voice controls:
- Accent: Level
- Bass drum: Level
- Snare drum: Level
- Low tom, hi tom: Level
- Cymbal, clap: Level
- Open hat, closed hat: Level
- Connectivity:
- Power input: DC input connector
-Power switch: Push button on/of
- USB (MIDI):
- USB: 2.0, type B
- MIDI In, Out / Thru: 2 x 5-pin DIN
- Start / stop: 1 x 1/4" TS
- Mix out: 1 x 1/4" TS, unbalanced, 1 kΩ impedance
- Voice out: 6 x 1/8" TS, unbalanced, 100 Ω impedance
- Sync in / out: 2 x 1/8" TRS (Tip is clock and Ring is the start message) more than: 2.5 V
- Trigger outs: LT and HT 2 x +15 V, 1PPS/24PPQ/48PPQ 50% pulse length, 2PPQ narrow pulse length.
- Phones: 1 x 1/8" TRS, stereo, 15 Ω impedance
- USB: Class compliant USB 2.0, type B
- Supported operating systems: Windows 7 or higher Mac OS X 10.6.8 or higher
- Pattern / Storage
- Capacity: 2 x 16 patterns
- Steps: 16 steps
- Power Requirements
- External power adapter: 9 V DC, 670 mA
- Power consumption: 2 W max
- Indicator: Power LED
- Environmental
- Operating temperature range: 5°C – 40°C (41°F – 104°F)
- Physical
- Dimensions (H x W x D): 56 x 305 x 165 mm (2.2 x 12 x 6.5")
- Weight: 0.9 kg (2.0 lbs)
- Shipping Weight: 1.6 kg (3.5 lbs)
- Type: Analog
- Number of simultaneous voices: 8
- Voice controls:
- Accent: Level
- Bass drum: Level
- Snare drum: Level
- Low tom, hi tom: Level
- Cymbal, clap: Level
- Open hat, closed hat: Level
- Connectivity:
- Power input: DC input connector
-Power switch: Push button on/of
- USB (MIDI):
- USB: 2.0, type B
- MIDI In, Out / Thru: 2 x 5-pin DIN
- Start / stop: 1 x 1/4" TS
- Mix out: 1 x 1/4" TS, unbalanced, 1 kΩ impedance
- Voice out: 6 x 1/8" TS, unbalanced, 100 Ω impedance
- Sync in / out: 2 x 1/8" TRS (Tip is clock and Ring is the start message) more than: 2.5 V
- Trigger outs: LT and HT 2 x +15 V, 1PPS/24PPQ/48PPQ 50% pulse length, 2PPQ narrow pulse length.
- Phones: 1 x 1/8" TRS, stereo, 15 Ω impedance
- USB: Class compliant USB 2.0, type B
- Supported operating systems: Windows 7 or higher Mac OS X 10.6.8 or higher
- Pattern / Storage
- Capacity: 2 x 16 patterns
- Steps: 16 steps
- Power Requirements
- External power adapter: 9 V DC, 670 mA
- Power consumption: 2 W max
- Indicator: Power LED
- Environmental
- Operating temperature range: 5°C – 40°C (41°F – 104°F)
- Physical
- Dimensions (H x W x D): 56 x 305 x 165 mm (2.2 x 12 x 6.5")
- Weight: 0.9 kg (2.0 lbs)
- Shipping Weight: 1.6 kg (3.5 lbs)
| Key attributes | |
|---|---|
| Number of Keys | Buttons |
| Colour | Black |
| Keyboard Type | Touch Response |
| Speakers | No |
| Model | Sound Module |
| Product Dimensions | |
|---|---|
| Depth | 165mm |
| Width | 305mm |
| Height | 56mm |
| Drum Machine attributes | |
|---|---|
| Battery Operated | No |
| Pedal | Not Included |
| MIDI Interface | USB to Host |
| Stand | Not Included |
| Built-in Tones | Yes |
| Cover | No |
| Display | No |
| Product Details | |
|---|---|
| Product Number | 220909 |
| Brand | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Drum Machine | |
| Date | February 2021 |
| Dimension | |
|---|---|
| Weight | 0.9kg |
| Box Depth | 431mm |
| Box Width | 305mm |
| Box Height | 94mm |
