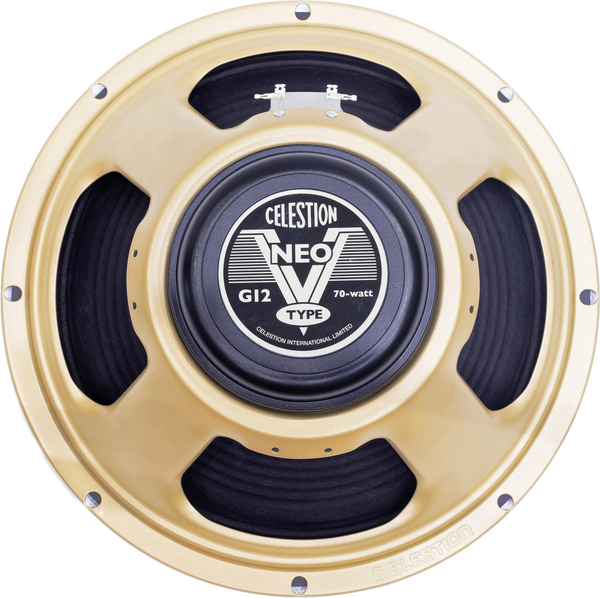

Celestion Neo V-Type G12 (70W/8 Ohm)

Celestion
EUR 110.50
Soon in backorder
Incl. VAT, free shipping in Germany

Featuring a unique neodymium magnet assembly that provides pure Celestion tonality, the Neo V-Type delivers the familiar and addictive modern vintage sound of the V-Type, but with a weight reduction of almost 50%. This sweet sounding speaker has a superbly balanced sonic signature that imparts a vintage musicality to your tone. Clean sounds have just the right amount of upper-mid chime and HF sparkle to add clarity and definition. Crank it up for a sizzling overdrive and some raw rhythmic grind, but expect a little extra definition and note separation for your searing, single note lead lines thanks to some neodymium magnet magic.

  • Nominal diameter: 12", 305mm
  • Power rating: 70W
  • Nominal impedance: 16Ω
  • Sensitivity: 98dB
  • Chassis type: Pressed steel
  • Voice coil diameter: 1.75", 44mm
  • Voice coil material: Round copper
  • Magnet type: Neodymium
  • Frequency range: 75-5000Hz
  • Resonance frequency, Fs: 75Hz

Mounting Information
Cut-out diameter: 11.1", 283mm
Diameter: 12.2", 309mm
Magnet structure diameter: 4.9", 124mm
Mounting slot dimensions: 0.31", 7.9mm
Mounting slot PCD: 11.7", 297mm
Number of mounting slots: 8
Overall depth: 4.8", 122mm
Unit weight: 4.2lb, 1.9kg

Product Dimensions
Depth
330mm
Width
330mm
Height
152mm
General Information
Manufacturer information
MusiX GmbH
Schildgasse 12
79618 Rheinfelden (Baden)
Germany

manufacturerinfo@musix.com
Product Details
Product Number
225669
Brand
Celestion
Series
Classic
SubSeries
Neo V-Type
Category
12" Speaker
Brand Category
Celestion - 12" Speakers
Relevancy rank in Category 12" Speaker
5 of 58
Date
July 2021
Product Quantity
Unit
1 piece(s)
Dimension
Weight
2.5kg
Box Depth
340mm
Box Width
330mm
Box Height
175mm
Gross Weight
2.46kg
