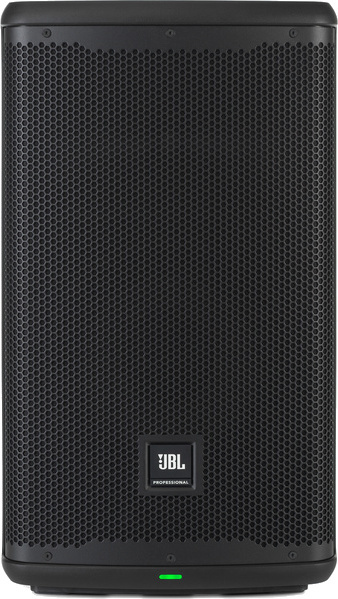

JBL EON710
EUR 535.00
EUR 909.15
In stock
Expected delivery: 21 May - 27 May to your country (DE)
Incl. VAT, free shipping
| Product # | 234035 |
| Brand | JBL |
| Series | JBL EON |
| Category | 10" Active Loudspeaker |
| Brand Category | JBL - 10" Active Loudspeakers |
Accessories
Recommended accessories
Rugged and Reliable
The JBL EON710 10-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology by delivering truly intelligible, clearly consistent coverage at any volume level.
The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system. With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.
- - System Type: 10IN Powered Loudspeaker
- - Woofer Model: 710G
- - Woofer Size: 10"
- - Woofer Magnet: Ferrite
- - Woofer Voice Coil: 2"
- - Tweeter Model: 2414H Compression Driver
- - Tweeter Size: 1"
- - Tweeter Magnet: Neodymium
- - Transducer Impedence: LF 4ohm rated, HF 8ohm rated
- - Max SPL: 125dB @1m/4Pi
- - Freq Range -10: 52Hz - 20kHz
- - Freq Range -3: 65Hz - 20kHz
- - Hor Dispersion: 110°
- - Vert Dispersion: 60°
- - Power Rating: 1300W peak / 650 RMS
- - AC power input: 100V-120V or 220V-240V
- - Cooling: Passive
- - LED indicators: 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
- - Input Impedance: 50k/100k un-balanced/balanced
- - Input Gain: -∞ to +36db
- - Crossover Frequency: 2 kHz
- - I/O: 2 XLR Combo Jacks / BT, 1 XLR M Thru
- - Cabinet: PP+10% Talc
- - Grille: 16GA perforated steel with acoustically transparent black cloth backing
- - Suspension / Mounting: 4 M10 Suspension points, 36mm Pole Socket, Universal yoke bracket holes
- Custom-designed 10-inch woofer
- 2414H compression driver
- Redesigned high-frequency horn
- Power: 1,300W peak / 650W RMS
- Frequency response: 52 Hz–20 kHz (-10 dB); 65 Hz–20 kHz (-3 dB)
- Max SPL: 125 dB
- Dispersion: 110° H x 60° V
- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
- Built-in 3-channel digital mixer
- Backlit color LCD screen provides easy access to functions
- Universal JBL Pro Connect app control
- Bluetooth 5.0 streaming and control
- Durable talc-reinforced polypropylene cabinet and metal grille
- Ergonomic handle simplifies transport
- Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
- Stackable cabinets allow easy storage
- 2414H compression driver
- Redesigned high-frequency horn
- Power: 1,300W peak / 650W RMS
- Frequency response: 52 Hz–20 kHz (-10 dB); 65 Hz–20 kHz (-3 dB)
- Max SPL: 125 dB
- Dispersion: 110° H x 60° V
- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
- Built-in 3-channel digital mixer
- Backlit color LCD screen provides easy access to functions
- Universal JBL Pro Connect app control
- Bluetooth 5.0 streaming and control
- Durable talc-reinforced polypropylene cabinet and metal grille
- Ergonomic handle simplifies transport
- Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
- Stackable cabinets allow easy storage
| Product Dimensions | |
|---|---|
| Depth | 300mm |
| Width | 332mm |
| Height | 587mm |
| Product Details | |
|---|---|
| Product Number | 234035 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category 10" Active Loudspeaker | |
| Date | July 2022 |
| Dimension | |
|---|---|
| Weight | 11.9kg |
| Box Width | 332mm |
