Jackson Adrian Smith SDX MN (White, Black Pickguard)
EUR 499.00
EUR 569.00
1 unit in stock
Expected delivery: 08 Aug - 14 Aug to your country (DE)
Incl. VAT, free shipping
| Product # | 184264 |
| Brand | Jackson |
| Series | Jackson X Series |
| Category | Electric Guitar ST-Model |
| Brand Category | Jackson - ST Models |
Recommended accessories
Variants
HSS-Strat with maple fingerboard.
The Adrian Smith SDX features a basswood body, bolt-on maple neck, compound-radius
rosewood or maple fingerboard, HSS configuration (high-output Jackson bridge pickup, Jackson standard middle and neck single-coil pickups), white pickguard (rosewood fingerboard model) or black pickguard (maple fingerboard model), five-way blade selector switch, Jackson tuners, Floyd Rose Special tremolo system and black hardware.

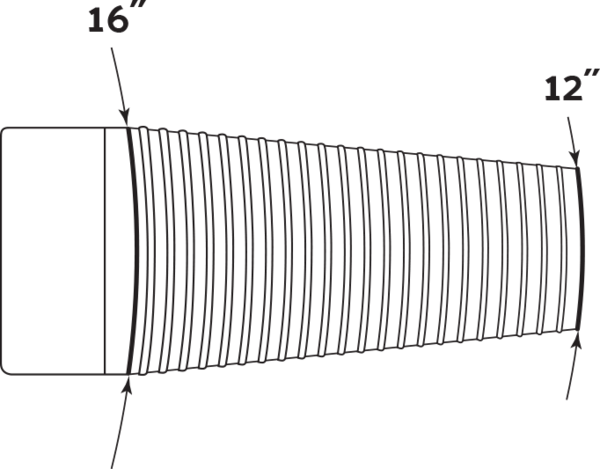

12"-16" Compound Radius Fingerboard
Jackson pioneered the use of the innovative 12"-16" compound radius design, in which the fingerboard gradually flattens toward the heel from its more rounded profile at the nut. This makes for comfortable and natural-feeling chording and riffing near the nut, with optimal shred articulation and bending nearer the heel.
Neck
Neck Construction 1-Piece Maple Neck Finish Satin Scale Length 25.5" (648 mm) Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm) Fingerboard Material Rosewood Number of Frets 22 Fret Size Jumbo Nut Width 1.6875" (42.86 mm) Position Inlays Dot Headstock Licensed Fender® Stratocaster® Neck Plate Jackson®

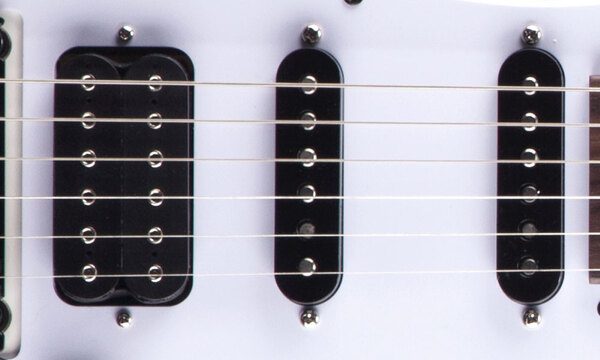

HSS Configuration:Jackson High-Output Humbucking (Bridge)/Jackson Single-Coil Neck & Middle Pickups
An atypical configuration for Jackson, this guitar features a humbucker in the bridge position and single-coil pickups in the neck and mid positions. The Jackson high-output humbucking pickup was painstakingly voiced for full, rich tone while providing maximum overdrive and sustain. The Jackson single-coil middle and neck pickups deliver that tried-and-tested Strat sound.
Hardware

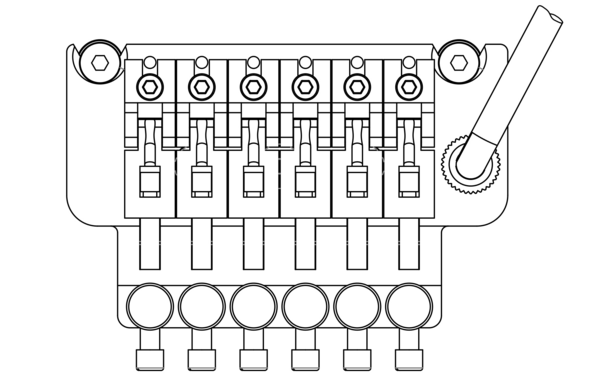

Bridge Floyd Rose® Special Double-Locking Tremolo Hardware Finish Black Tuning Machines Jackson® Sealed Die-Cast Pickguard 1-Ply White Control Knobs Dome-Style Switch Tip Black
Electronics
Bridge Pickup Jackson® High-Output Humbucking Middle Pickup Jackson® Single-Coil Neck Pickup Jackson® Single-Coil Controls Volume, Tone Pickup Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup Configuration HSS
- Body
- - Body Material: Basswood
- - Body Finish: Gloss
- - Body Shape: San Dimas
- Neck
- - Neck Material: Maple
- - Neck Finish: Oiled
- - Neck Shape: Speed Neck
- - Scale Length: 25.5" (648 mm)

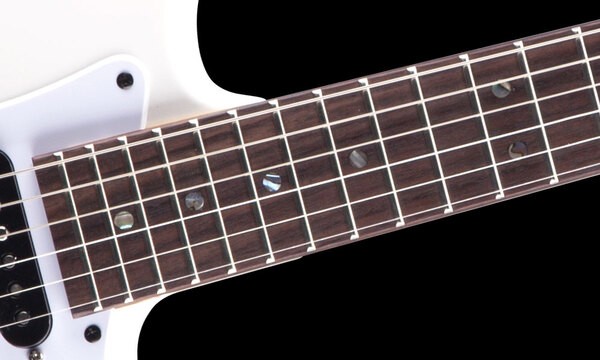

- - Fingerboard: Rosewood
- - Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
- - Number of Frets: 22
- - Fret Size: Jumbo
- - Nut Width: 1.6875" (42.8 mm)
- - Position Inlays: Dot
- - Truss Rods: Dual-Action
- - Truss Rod Nut: Vintage-Style Slotted
- Electronics
- - Bridge Pickup: Jackson Humbucking
- - Middle Pickup: Jackson Single-Coil
- - Neck Pickup: Jackson Single-Coil
- - Pickup Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
- - Pickup Configuration: HSS
- Hardware
- - Bridge: Floyd Rose Special Double Locking 2-Point Tremolo
- - Tuning Machines: Jackson Branded
- - Pickguard: 1-Ply White
- Miscellaneous
- - Strings: NPS, Gauges: .009, .011, .016, .024, .032, .042
- - Unique Features: H/S/S pickup configuration, 22 jumbo frets, maple neck w/rosewood fingerboard, Floyd Rose Special bridge, 5-way selector switch
| Key attributes | |
|---|---|
| Pickup Types | HSS |
| Colour | White |
| Body Shape | ST-Model |
| Fingerboard Material | Rosewood |
| Body Material | Basswood |
| Body | |
|---|---|
| Guitar Construction | Solid Body |
| Orientation | Right-Handed |
| Top Material | Basswood |
| Neck | |
|---|---|
| Fingerboard Radius | Compound" |
| Neck Finish | Oiled |
| Neck Material | Maple |
| Guitar Scale | 25.5" |
| Number of Frets | 22 |
| Fret Size | Jumbo |
| Nut Width | 42mm |
| Position Inlays | Dots |
| Hardware | |
|---|---|
| Bridge Type | Tremolo |
| Hardware Finish | Black |
| String Gauge | .009" |
| Tuning Machines | Sealed Tuning Machines |
| Coil Split | No |
| Including Bag | Not included |
| General Information | |
|---|---|
| Manufacturer information | Fender Musical Instruments Corp.
17600 N. Perimeter Drive, Suite 100 85255 Scottsdale AZ United States |
| Electric Guitar ST-Model attributes | |
|---|---|
| Guitar Finish | Gloss |
| Product Details | |
|---|---|
| Product Number | 184264 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Electric Guitar ST-Model | |
| Date | October 2015 |
| Dimension | |
|---|---|
| Gross Weight | 7.7kg |
Related Products
Reviews
(2)
View different language product reviews (1)
For the price this guitar is great, I am by no means an Adrian Smith or hardcore Maiden fan, this guitar is simply a great build and well set-up out of the box. The neck is very playable you could make it sound like the USA version simply through a pickup upgrade, but for me the pickups are good enough.
