LD-Systems ICOA 12 A BT (bluetooth, black)

LD-Systems
(1)
EUR 429.00
EUR 439.00
2 units in stock
Expected delivery: 20 May - 26 May to your country (DE)
Incl. VAT, free shipping

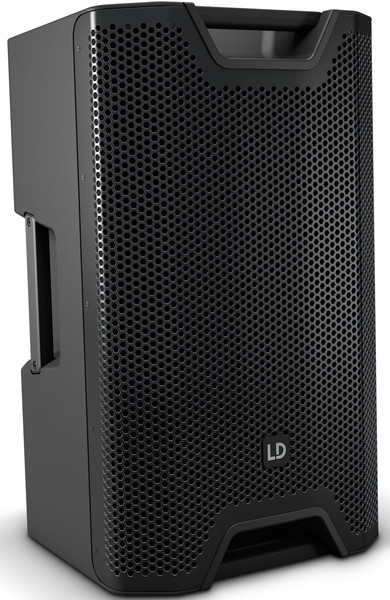

12" Active Coaxial PA Speaker with Bluetooth

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this aktive 12" loudspeaker exceptionally flexible. The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 300 W RMS performance. Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
DUAL TILT FLANGE

DUAL TILT FLANGE

36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

Accessories (included): Power cord

  • - A genuine all-rounder for full-range, satellite and monitor applications
  • - 126 dB max. SPL and 1200 W peak power
  • - Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent Pending)
  • - Horn-loaded woofer
  • - DynX DSP with 4 presets, 3-band EQ and delay function
  • - 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
  • - 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
  • - Shock-resistant front grille for optimal protection of the speaker
  • - 4 aluminium grips with ergonomic, rubber surface
  • - Extensive, optionally available accessories for installation and transport

- Type: Actives
- Bluetooth Audio Decoder: Bluetooth 4.0
- Low/mid driver dimensions: 12 "
- Woofer size: 304.8 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Horn: BEM optimized CD Horn
- HF driver dimensions: 1 "
- HF Driver Size: 25.4 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- HF driver voice coil: 1 "
- HF Driver Voice Coil: 25.4 mm
- Amplifier: Class D
- Dispersion (H x V): 90 ° x 50 °
- RMS: 300 W
- Peak power: 1200 W
- Frequency response: 50 - 20000 Hz
- Crossover frequency kHz: 2 kHz
- Max. SPL (peak): 126 dB
- Protection circuits: Multiband limiter , over voltage , over-current , thermal overload
- Controls: 2 x gain , On / off switch , Rotary/push encoder
- Indicators: LC display
- Mic/ line inputs: 2
- Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical) , XLR
- Line inputs: 1
- Line input connectors: 3.5 mm TRS
- Line outputs: 1
- Line output connectors: XLR
- Operating voltage: SMPS
- Power consumption: 150 W
- Ambient temperature ( in operation ): 0 - 40 °C
- Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
- Relative Humidity: < 80 %, not condensing
- Fuse: T4AL 250 V
- Cabinet material: polypropylene
- Cabinet construction: Bass Reflex
- tripod flange: 32 °F , 36mm flange , 5°
- Monitor angle: 55 °

12" Active Loudspeaker attributes
Unit
1 piece(s)
Product Details
Product Number
211837
Brand
LD-Systems
Series
ICOA
Category
12" Active Loudspeaker
Brand Category
LD-Systems - 12" Active Loudspeakers
Relevancy rank in Category 12" Active Loudspeaker
11 of 50
Date
January 2020
Dimension
Weight
22kg
Gross Weight
24kg
