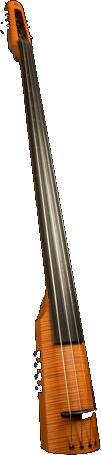

NS-Design CR Electric Upright Bass 4-String / CR4M (amber)

NS-Design
EUR 5290.00
Will be ordered for you as quick as possible
Incl. VAT, free shipping
CR4 Bass with additional magnetic EMG pickups

The CR series of electric double basses, with their exceptional versatility and sound quality, have become almost an indispensable instrument for the serious bassist. The slim, solid body of the CR series joins the long history of instruments made in the Czech Republic. The CR Series is available in 4- and 5-string models and is crafted from select maple and ebony. The full-scale fingerboard is graduated to ensure consistent response from note to note and features adjustable relief and bridge height to accommodate all playing styles. Our Polar bridge pickup system combines great tone with directional sensitivity for a rich and expressive response for pizzicato and arco techniques. Optional magnetic EMG pickups expand the range to include classic electric bass sounds. According to Bass Player magazine, the Czech-made CR series offers "impeccable craftsmanship from a country known for building high-quality double basses. Its clean aesthetics, excellent playability and great sound make it one of the best basses in the world;" Three interchangeable stand systems are available for the bass: the self-supporting tripod stand, the more conventional endpin stand, and the shoulder strap for full mobility. COPPER HEAD AND NECK: The CR Series double bass body and neck are made from solid European hard maple with a flamed maple top. The neck has a traditional upright shape but with extended access to the upper register of the fingerboard. The solid body improves sustain and clarity and is resistant to temperature and humidity changes. Ebony Fingerboard: The waxed ebony fingerboard is hand-graded to ensure that every note is consistent and buzz-free. An adjustable truss rod allows for precise adjustment of the relief for different strings and playing styles. Small dots on the neck provide precise position markings. POLAR BRIDGE PICKUP SYSTEM: The Polar pickups can sense either lateral or vertical string vibrations - or both! In lateral mode, the pickup has unparalleled sensitivity in the direction of the bow. In vertical mode, the plucked notes are remarkably even and sustained. EMG MAGNETIC PICKUPS: The low-impedance EMG pickups are equipped with individually adjustable coils and neodymium magnets. Each coil is buffered separately to achieve full sound quality with very low noise. (Magnetic pickups are optional. Only the models marked with the letter M have magnetic coils) ACTIVE EQ AND MIXER: Controls include volume, a blend control for magnetic and piezo pickups, a toggle switch for selecting the Polar pickup mode, and individual controls for bass EQ & amp and treble EQ. The 18-volt power supply provides plenty of reserves for full dynamics. ADJUSTABLE BRIDGE: The bridge can be adjusted up and down using two screws on the back of the body. This allows the instrument to be adjusted to the requirements of many different playing styles. THREE STAND OPTIONS: 1. TRIPOD STAND - The TRIPOD STAND supplied as standard offers a stable hold and can be adjusted in height and angle. The stand can be folded up and fits into the gig bag. 2. End Pin Stand - An optional end pin stand offers the double bassist a more traditional position, similar to that of an acoustic instrument. 3. Shoulder Strap System - A lightweight frame construction is supported by a single guitar-like strap that goes over the left shoulder. This holds the bass in the correct position for pizz. and arco styles. The strap system allows you to achieve full mobility with amazing comfort. PORTABILITY: The padded, tubular gig bag is only 137 cm long and 18 cm in diameter. With instrument and stand it weighs 8.2 kg (18 lbs). A storage compartment inside the gig bag provides space for accessories. The loaded gig bag fits in the overhead compartment of most commercial aircraft. An optional flight Case measures 145 x 25 x 25 cm (57" x 10" x 10").

  • - LENGTH: 132cm (52")
  • - WEIGHT: 4.8 kg (10.5 lbs.)
  • - Scale length: 106 cm (41.73")
  • - Strings 4 or 5 (low B or high C)
  • - CONSTRUCTION: Solid sycamore neck and body, flamed maple top
  • - FINISH: Traditional amber stain with clear semi-gloss polymer coating.
  • - FINGERBOARD: Macassar ebony; 43.1mm (1.7") wide at nut; 89.0mm (3.5") max.
  • - BRIDGE: Black phenolic resin; radius 7.9cm (3.1") string spacing 81mm (3.19").
  • - NUT: Makassar ebony; radius 7.9cm (3.1"); string spacing 30mm (1.19").
  • - PICKUPS
  • - BRIDGE: The directional polar piezo pickup system reacts either to vertical vibrations (for a long-lasting, plucked tone, like an electric bass guitar) or to lateral vibrations (for dynamic bowing and a percussive, plucked tone).
  • - MAGNETIC (only for CR4M and CR5M): Low-impedance magnetic EMG pickup system with individually adjustable coils and low-noise, hum-cancelling preamp.
  • - ELECTRONICS: 18-volt active circuit from HAZ Laboratories. Mono output.
  • - CONTROLS: (top to bottom)
  • - CR-4M & CR-5M
  • 1. Volume
  • - 2. Blend
  • - counterclockwise - magnetic pickups
  • - clockwise - polar pickups
  • - 3. Treble EQ
  • - 4.Bass EQ
  • 5. Polar pickup switches:
  • top - pizzicato (vertical vibration)
  • middle - both
  • bottom position - arco (side vibration)
  • CR-4 & CR-5
  • 1. Volume
  • - 2. Blend
  • counterclockwise - pizzicato (vertical vibration)
  • clockwise - arco (side vibration)
  • 3. Treble
  • 4.Bass
  • TRUSS ROD: Double rod construction. Accessible at the saddle.
  • TUNING: Schaller 20:1 ratio, fully enclosed worm gear; black finish.
  • STRINGS: Compatible with most standard double bass strings. D'Addario stainless steel flat wire strings standard.
  • STATUS:
  • TRIPOD STAND (standard): Chrome-plated steel, fully adjustable, standing tripod design. Weight 7 lbs. (3.2 kg)
  • END PIN STAND (optional): Provides full freedom of movement. Height, tilt and angle are fully adjustable for a conventional feel. Weight 5 lbs (2.3 kg)
  • BAGS
  • GIG BAG: (standard) Padded tube with handle and shoulder strap, 54" (137 cm) long; 7" (18 cm) in diameter. Loaded weight 18 lbs (8.2 kg) including stand. Fits in the overhead compartment of most commercial aircraft.
  • FLIGHT CASE (optional): Aluminum edge plywood, 57" (145 cm) long; 10" (25 cm) wide; 10" (25 cm) high. Weight is 48 lbs (22 kg) loaded including stand.

Product Details
Product Number
121307
Brand
NS-Design
Series
CR Bass
Category
Silent Double Bass
Brand Category
NS-Design - Silent Double Basses
Relevancy rank in Category Silent Double Bass
7 of 20
Date
May 2017
