SE Electronics X1 S
| Product # | 194509 |
| Brand | SE Electronics |
| Series | SE Electronics sE |
| Category | Condenser Microphone |
| Brand Category | SE Electronics - Condenser Mics |
CUSTOM-DESIGNED, HAND-CRAFTED CAPSULE
Just like its predecessor, the X1 S utilizes a hand-made condenser capsule, meticulously constructed and tuned in sE's capsule room by technicians with decades of experience.
HIGH-PERFORMANCE ELECTRONICS
Where the original X1 was powerful, the redesigned electronics of the X1 S take its performance to a whole new level, giving it the highest dynamic range in its class. Its internal redesign also allows for improved sensitivity, dramatically increased SPL handling (up to 160dB!), and a huge reduction in self-noise.

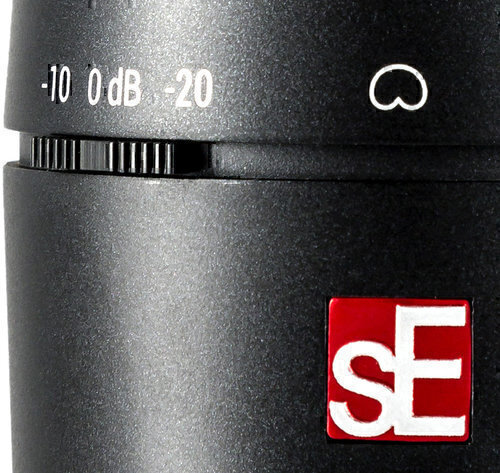

TWO SWITCHABLE ATTENUATION LEVELS
The -10 dB and -20 dB pad switches provide extended dynamic range, enabling a wide range of applications and close-mic techniques for even the loudest instruments...think super-heavy electric guitars, fortissimo brass instruments, and heavy-footed kick drums.
TWO SWITCHABLE LOW-CUT FILTERS
Selectable at either 80Hz or 160Hz, these two filters help eliminate low-frequency rumble or footfall noise, as well as help compensate for excessive bass (proximity effect) with close-mic techniques.
ALL-METAL HOUSING AND PREMIUM FINISH
Unlike the cheaply constructed bodies of some other "entry-level" microphones, the X1 S's all-metal chassis provides efficient rejection of any electrical interference and noise - and the high-quality finish ensures a great look for years to come.
- - Capsule Type: Hand-Crafted 1" True Condenser
- - Polar Pattern: Cardioid
- - Frequency range: 20 Hz - 20 kHz
- - Sensitivity: 30 mV/Pa (-30.5 dBV)
- - Max SPL: 140 / 150 / 160 dB (0/10/20 dB pad) (0.5% THD @ 1kHz)
- - Equivalent noise level: 9 dB(A)
- - Dynamic range: 131 / 141 / 151 dB (0/10/20 dB Attentuation pad)
- - Signal to Noise Ratio: 85 dB
- - Low-cut filter: 80 / 160 Hz, 6 dB/Oct, switchable
- - Attenuation Pad: 10 / 20dB, switchable
- - Powering: 48 Volts according to IEC 61938
- - Electrical Impedance: 125 Ohms
- - Recommended load impedance: <1k Ohms
- - Current consumption: 6 mA
- - Connectivity: 3-pin male XLR connector
- - Dimensions: Diameter: 58mm (2.28 in), Length 169mm (6.65 in)
| General Information | |
|---|---|
| Manufacturer information | MusiX GmbH
Schildgasse 12 79618 Rheinfelden (Baden) Germany manufacturerinfo@musix.com |
| Product Details | |
|---|---|
| Product Number | 194509 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Condenser Microphone | |
| Date | May 2017 |
| Dimension | |
|---|---|
| Box Depth | 309mm |
| Box Height | 124mm |
| Gross Weight | 0.958kg |
