Tascam Model 12

Tascam
EUR 630.00
EUR 729.00
Soon in backorder
Incl. VAT, free shipping
Product #214180
BrandTascam
Category12 Channel Mixer
Brand CategoryTascam - 12 Channel Mixers

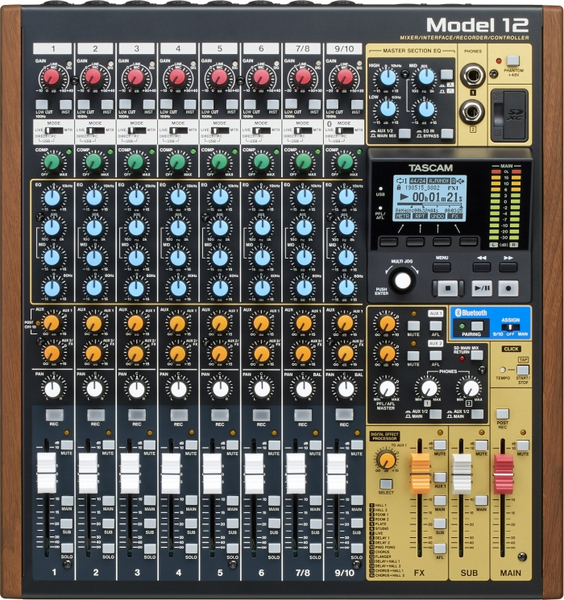

Analog mixing console with digital multitrack recorder

Analog mixing console with digital multitrack recorder

  • - Mixing console
  • - Ten analog inputs on six mono and two stereo channels
  • - Eight microphone inputs via XLR connectors with switchable phantom power (48 V)
  • - Ultra-HDDA microphone preamplifier in inputs 1-6
  • - Eight channels can be used with high-impedance instruments such as electric guitars or basses
  • - Ten balanced line inputs (six mono, two stereo)
  • - Multi-purpose stereo channel for mobile devices via Bluetooth or a TRRS smartphone jack (channels 9/10)
  • - Loop-in paths in input channels 1 and 2
  • - Mix-minus function on the smartphone mini jack input
  • - Two aux outputs (monitor, effects) and two stereo outputs with independent summing faders (main, sub)
  • - Listening modes selectable between PFL, AFL and Solo-in-Place (SIP)
  • - Separate click output with tap tempo function
  • - 1-button compressor for all input channels
  • - Three-band tone control with tunable mids for all input channels
  • - Switchable depth filter (100 Hz) in each channel
  • - Three-band tone control with tunable midband for aux 1/2 and stereo sum
  • - Built-in Bluetooth receiver for wireless connection of playback sources
  • - Built-in effects processor
  • - 16 effect types
  • - Can be used in all input channels, aux paths, the subgroup and the stereo sum
  • - Can be switched on/off by optional foot switch
  • - Compact 60 mm faders
  • - 12-segment LED level meters for the stereo sum
  • - Balanced XLR outputs for the stereo sum
  • - Balanced jack outputs (TRS) for subgroup and aux ways
  • - Two headphone outputs with separate level controls
  • - Recorder
  • - Tascam multi-track recording module, uses SD cards as storage media (up to 128 GB)
  • - Up to 12 tracks (10 input channels + stereo mix) can be recorded without a computer
  • - Recording format: Uncompressed Linear PCM (WAV format), 44.1/48 kHz, 16/24 bit
  • - Overdub recording, punch-in/out
  • - Multi-track playback for advanced live performances
  • - Backlit play/recording/stop buttons for better visibility in dark environments
  • - Audio interface
  • - USB audio interface for use with Windows (ASIO) and Mac computers (Core Audio)
  • - Audio to computer: 12 channels (all 10 inputs + stereo mix)
  • - Audio from computer: 10 channels, assignable to input channels
  • - Audio resolution 44.1/48 kHz, 16/24 bit
  • - Usable as USB-MIDI interface
  • - Easy DAW control via HUI/MCU protocol emulation
  • - Further features
  • - MIDI input and output
  • - MIDI time code (MTC) and MIDI clock output with support for song position pointers (SPP)
  • - Simple, fast menu navigation using the jog wheel

Product Details
Product Number
214180
Brand
Tascam
Category
12 Channel Mixer
Brand Category
Tascam - 12 Channel Mixers
Relevancy rank in Category 12 Channel Mixer
11 of 18
Date
June 2020
Dimension
Weight
13.4kg
Box Depth
558mm
Box Height
321mm
Gross Weight
8.4kg
